X Series Crystal
2mm X 2.5mm 4 Pads Ceramic Package
Ultra-miniature Profile
RoHS Compliant
Tape and Reel Packaging
Frequency Range
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series Resistance
Drive Level
Insulation Resistance
16.000MHZ to 60.000MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±2ppm / per year
3pF Max
10pF Standard
(See Part Number Guide for Options)
See ESR Chart
100µW Max
500 Megaohms Min at 100VDC
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
First Line = MXX.X (not to exceed 5 characters)
M
XX.X
= MMD
Device Frequency
= (four digits including decimal
point)
Second Line = SYWW (
not to exceed 5 characters
)
S
YWW
= Internal Code
= Date Code (Year/Month)
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
.
Specifications are subject to change without notice.
Revision:
11/09/10 D
Pg 1 of 2

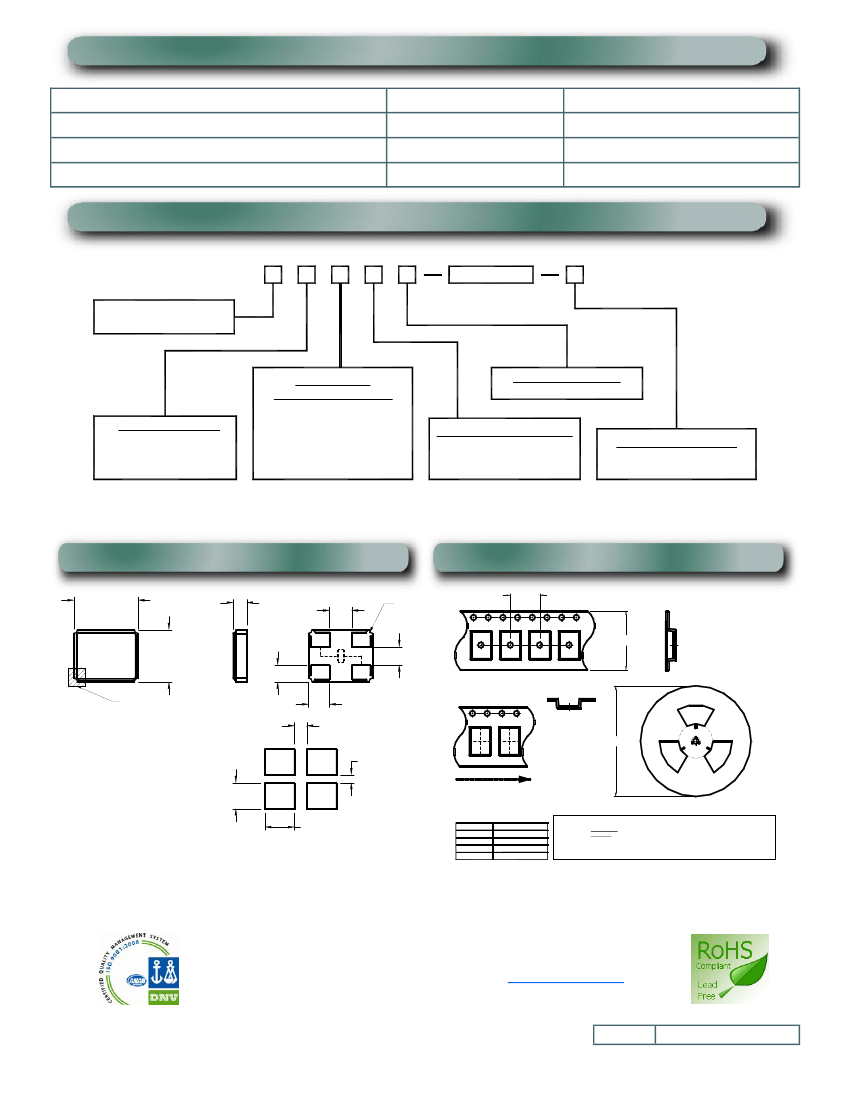

ESR Chart
Frequency Range
16.000MHZ to 19.999MHZ
20.000MHZ to 29.999MHZ
30.000MHZ to 60.000MHZ
ESR (Ohms)
120 Max
80 Max
50 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
Part Number Guide
X
2mm X 2.5mm Ceramic
4 Pads
1
Frequency
Load Capacitance
S = Series
10 = 10pF (Standard)
XX = XXpF (8pF to 12pF)
Temperature
Tolerance/Stability*
A = ±50 ppm / ±100 ppm
B = ±30 ppm / ±50 ppm
C = ±15 ppm / ±30 ppm
D = ±10 ppm / ±15 ppm
E = ±50 ppm / ±50 ppm
Mode of Operation
1 = Fundamental
Operating Temperature
A = 0°C to +70°C
B = -20°C to +70°C
C = -40°C to +85°C
Value Added Options
Blank = No Added Options
T = Tape and Reel
* Please consult with MMD sales department for any other parameters or options.
Mechanical Details
2.60 [.102]
MAX
0.55 [.022]
MAX
0.90 [.035]
3
0.65 [.026]
2
4
0.70 [.028]
1
0.80 [.031]
0.50 [.020]
Q1 Q2
Q3 Q4
Q1 Q2
Tape & Reel
NOTE 1
PITCH
MXX.0
SYWW
16.00
2.10 [.083]
MAX
PIN 1 INDICATOR
DIMENSIONS IN BRACKETS ARE IN INCHES
NOTE 1: PIN 2 AND PIN 4 ARE INTERNALLY
CONNECTED AND SHOULD NOT BE
CONNECTED TO EXTERNAL SOURCES FOR
PROPER FUNCTION.
1.00 [.039]
REEL DIA
Q3 Q4
0.30 [.012]
DIRECTION OF FEED
1.20 [.047]
SUGGESTED LAND PATTERN
PITCH
TAPE WIDTH
REEL DIA
COUNT
PIN 1 ORIENT.
4.00 [.157]
8.00 [.315]
180 [7.0]
1000
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inch].
3. Tolerances are ±0.1 [.004] mm unless otherwise specified.
4. Do not scale drawing.
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
.
Specifications are subject to change without notice.
Revision:
11/09/10 D
Pg 2 of 2
