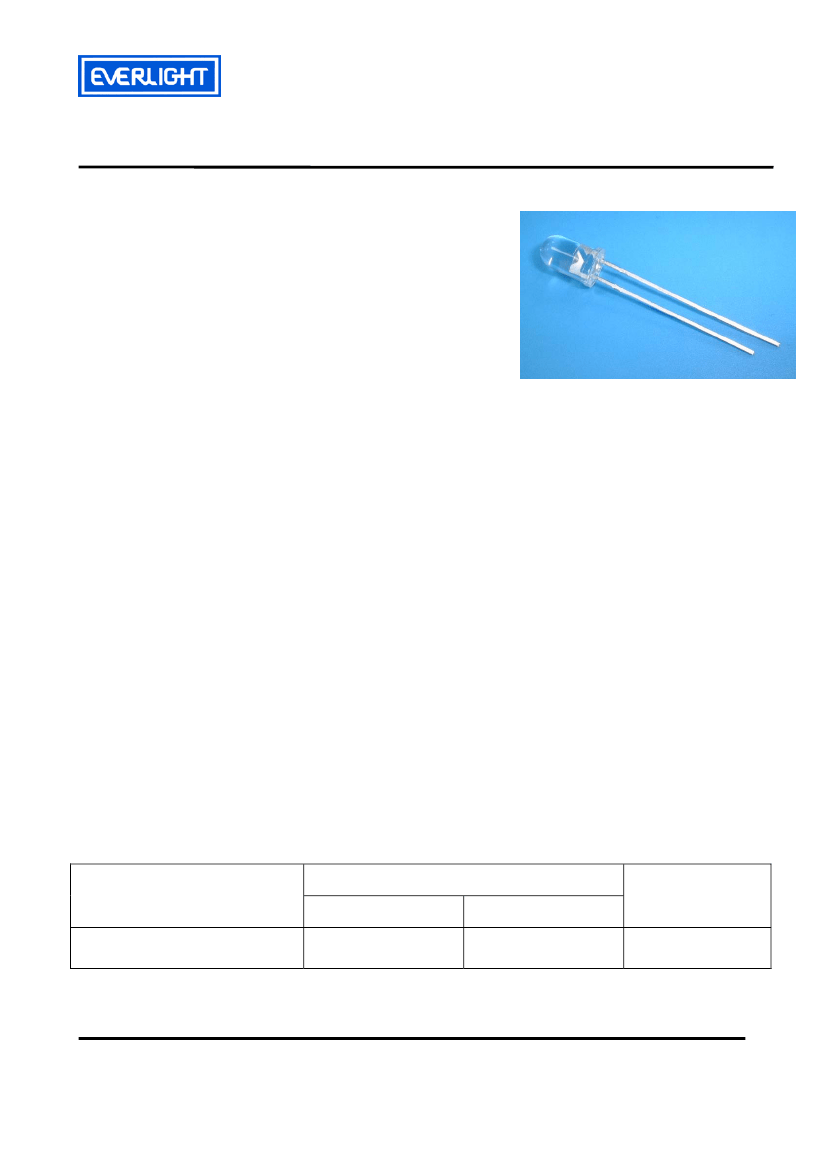

Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C5-1MQB
Features
․Popular
T-1
3/4
colorless 5mm package.
․High
luminous power.
․Typical
chromaticity coordinates x=0.29, y=0.28
according to CIE1931.
․Bulk,
available taped on reel.
․ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
․Pb
free.
․The
product itself will remain within RoHS compliant
version.
Descriptions
․The
series is designed for application required
high luminous intensity.
․The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Outdoor
Displays
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
Chip
PART NO.
Material
334-15/W2C5-1MQB
InGaN
Emitted Color
White
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A57
http\\:www.everlight.com
Established date:09-07-2005
Rev:
2
Page: 1 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C5-1MQB
Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty /10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Zener Reverse Current
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A57
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
Iz
http\\:www.everlight.com
Established date:09-07-2005
Rating
25
100
5
-40 ~ +85
-40 ~ +100
260 ± 5
100
100
Rev:
2
Unit
mA
mA
V
℃
℃
℃
mW
mA
Page: 2 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C5-1MQB
Electrostatic Discharge
ESD
4K
V
Production Designation
334-15/W2C5-□
□ □ □
Voltage Group
Luminous Intensity Bins
Color Group
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Zener Reverse Voltage
Reverse Current
Symbol
V
F
Vz
I
R
Condition
I
F
=20mA
Iz=5mA
V
R
=5V
Min.
3.0
5.8
--
Typ.
--
--
--
Max.
4.0
--
50
Units
V
V
uA
Luminous Intensity
Viewing Angle
I
V
2θ1/2
x
I
F
=20mA
I
F
=20mA
1800
--
--
--
50
0.29
0.28
4500
--
--
--
mcd
deg
Chromaticity Coordinates
y
I
F
=20mA
--
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A57
http\\:www.everlight.com
Established date:09-07-2005
Rev:
2
Page: 3 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C5-1MQB
Luminous Intensity Combination (
mcd at 20mA)
Rank
M
N
P
Q
Min
1800.0
2250.0
2850.0
3600.0
Max
2250.0
2850.0
3600.0
4500.0
*Measurement Uncertainty of Luminous Intensity:
±15%
Forward Voltage Combination (
V at 20mA)
Group
Rank
Min.
Max.
1
3.00
3.20
2
3.20
3.40
B
3
3.40
3.60
4
3.60
3.80
5
3.80
4.00
*Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
1
Bins
A1+A0+B3+B4+B5+B6+C0
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A57
http\\:www.everlight.com
Established date:09-07-2005
Rev:
2
Page: 4 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C5-1MQB
CIE Chromaticity Diagram
Color Ranks (IF=20mA，Ta=25℃)
Color Ranks
A1
A0
B3
B4
B5
B6
C0
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
0.255
0.245
0.264
0.267
0.283
0.305
0.304
0.33
0.287
0.295
0.307
0.315
0.33
0.264
0.267
0.283
0.305
0.304
0.33
0.33
0.36
0.307
0.315
0.33
0.339
0.361
CIE
0.28
0.248
0.296
0.267
0.307
0.315
0.33
0.339
0.311
0.294
0.33
0.318
0.355
0.35
0.27
0.23
0.28
0.248
0.287
0.295
0.307
0.315
0.296
0.276
0.311
0.294
0.33
0.318
Y
0.36
0.385
*Measurement uncertainty of the color coordinates：±0.01
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A57
http\\:www.everlight.com
Established date:09-07-2005
Rev:
2
Page: 5 of 8
Established by: Amy Ma
