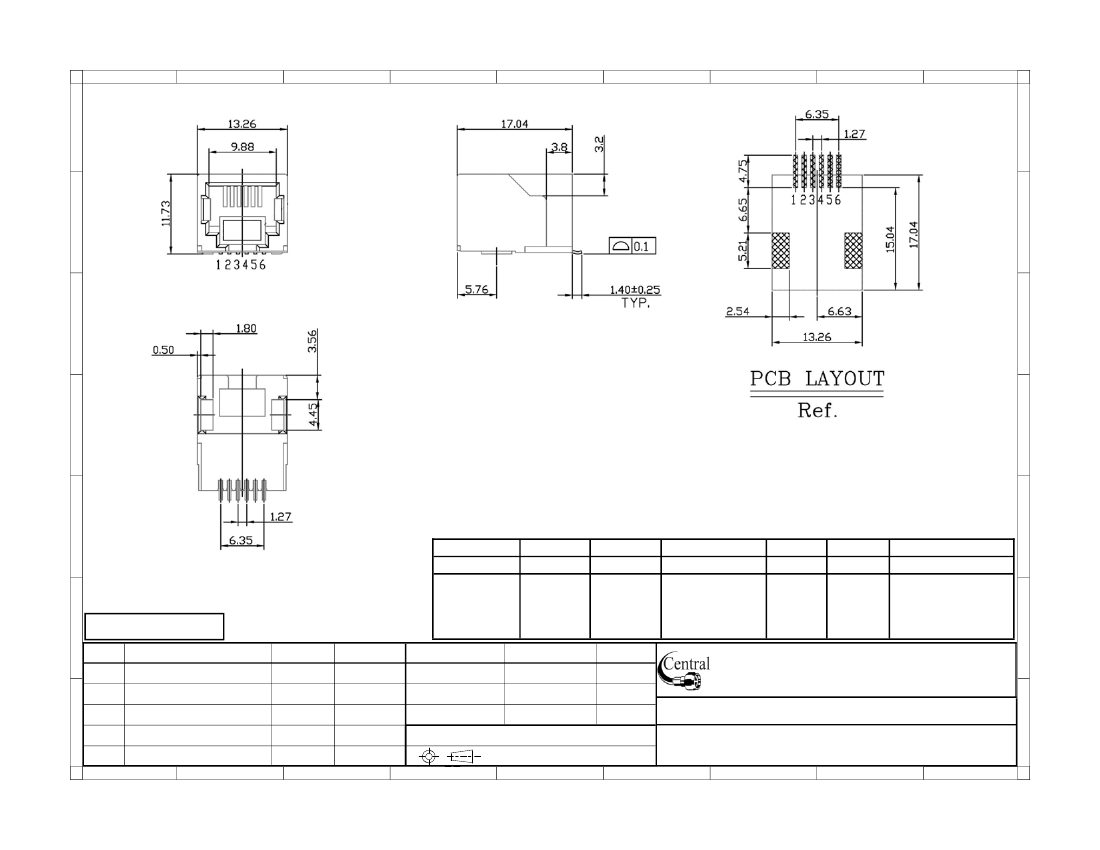

SPECIFICATIONS
Housing:
D
Contacts:
Hold Down:
DSM Stanyl TE250F6 Nylon 46
Black, UL94V-0
0.35mm Phos-Bronze
Gold over Tin plating in Solder Area
0.30 Phos Bronze, Tin Plating
D
With Jack sitting on a level surface. Maximum gap between level
surface and all terminal tails and both fitting nails is 0.10m/m
E
E
Series
CTJ
Modular Jack,
single position
F
Positions
X
6-8
Contacts
XX
2-8
Body Style
700
Side entry bottom
latch
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Color
Plating
XX
PX
BK=Black P0=6u”
P1=15u”
P2=30u”
P3=50u”
Options
XX
Blank=None
WF=Without flange
KY=Keyed
F
Date
09/22/11
09/22/11
09/22/11 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CTJ-X-XX-700-XX-PX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: 6 Pos 6 Contacts, Solder Tap Both Sides Low Profile
1 Port, Side Entry SMT Type
