Part Number

Search

54LS76FMQB

Description
Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,
Categorylogic    logic
File Size163KB,3 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

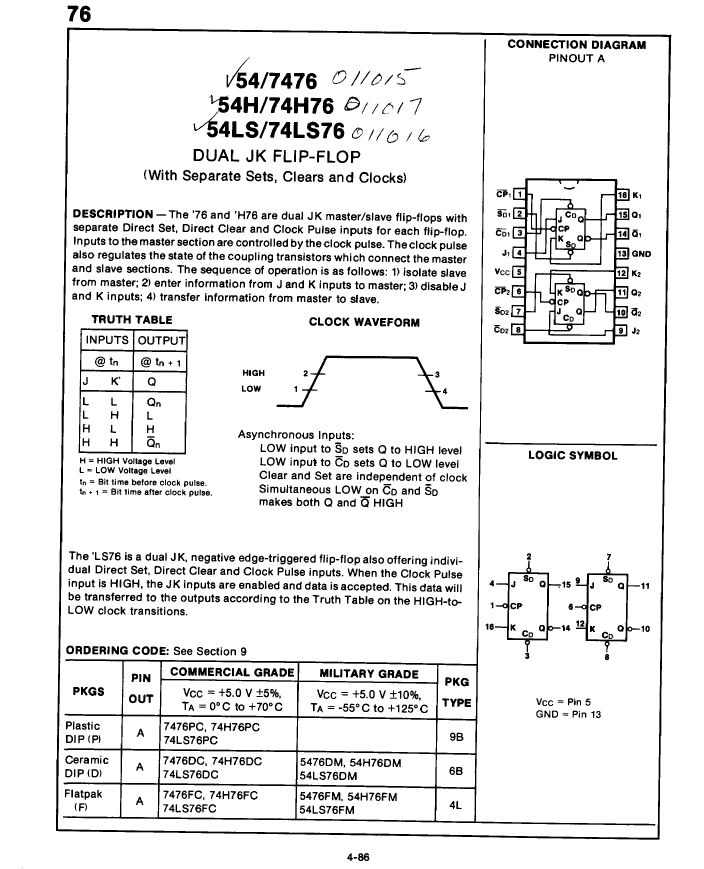

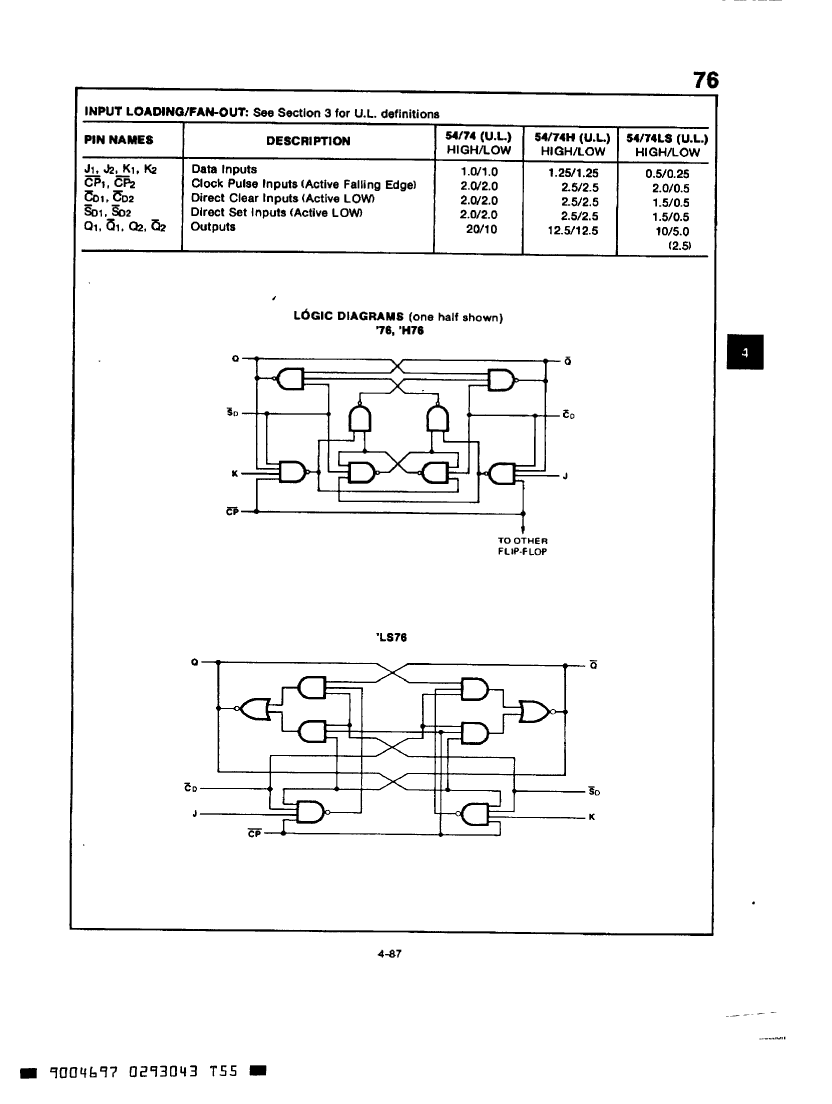

54LS76FMQB Overview

Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,

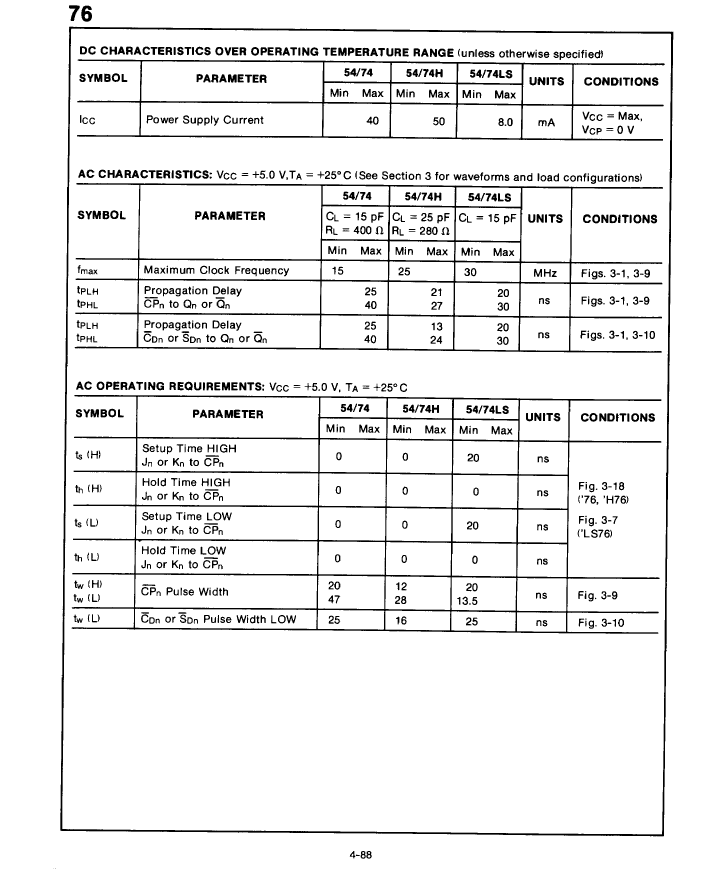

54LS76FMQB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild
Reach Compliance Codecompliant
JESD-30 codeR-XDFP-F16
JESD-609 codee0
Logic integrated circuit typeJBAR-KBAR FLIP-FLOP
Humidity sensitivity level2A
Number of functions2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL16,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)250
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
Trigger typeNEGATIVE EDGE
Base Number Matches1
