DM54LS377E: DescriptionD Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size152KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

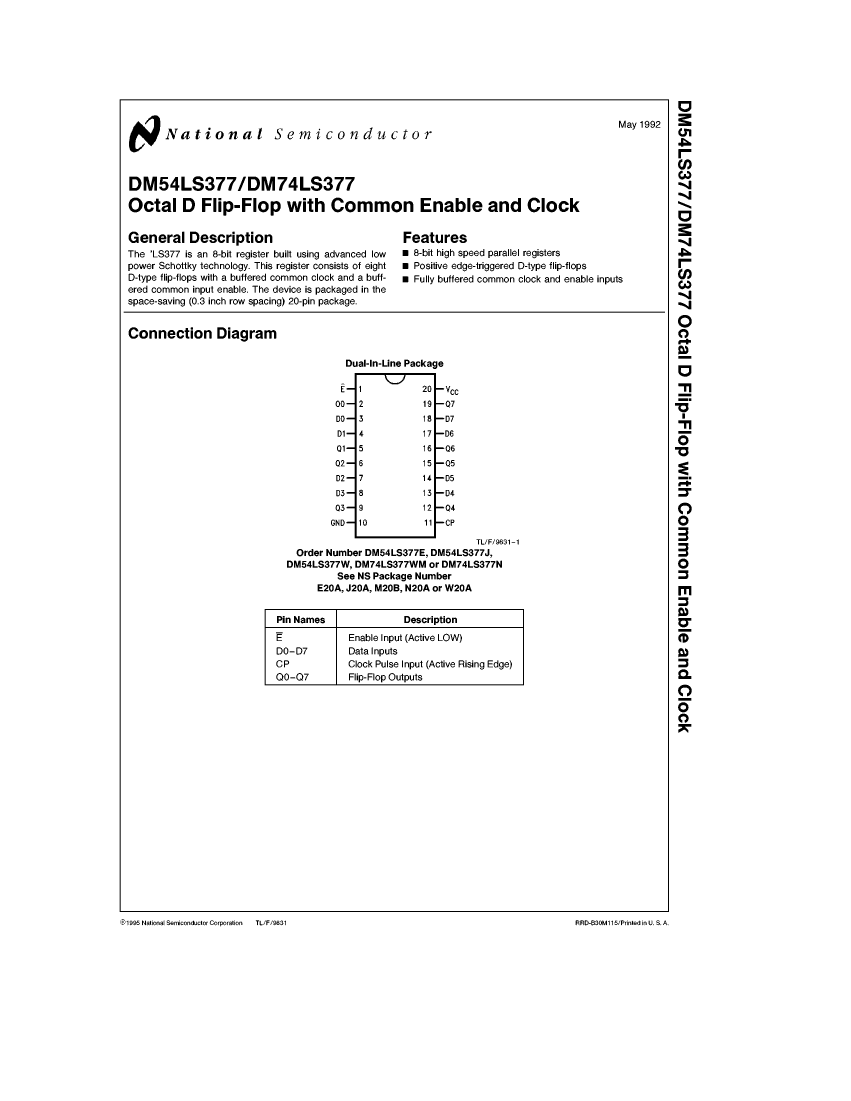

DM54LS377E Overview

D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20

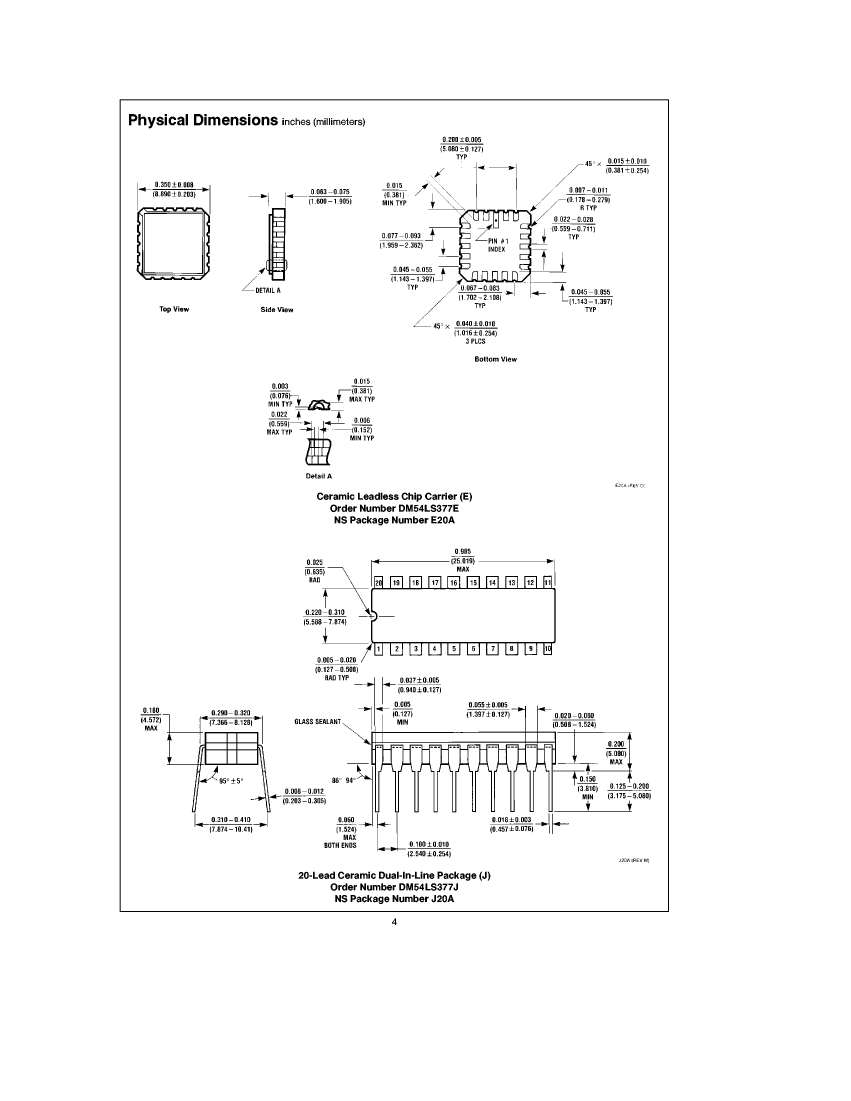

length	8.89 mm
Logic integrated circuit type	D FLIP-FLOP
Number of digits	8
Number of functions	1
Number of terminals	20

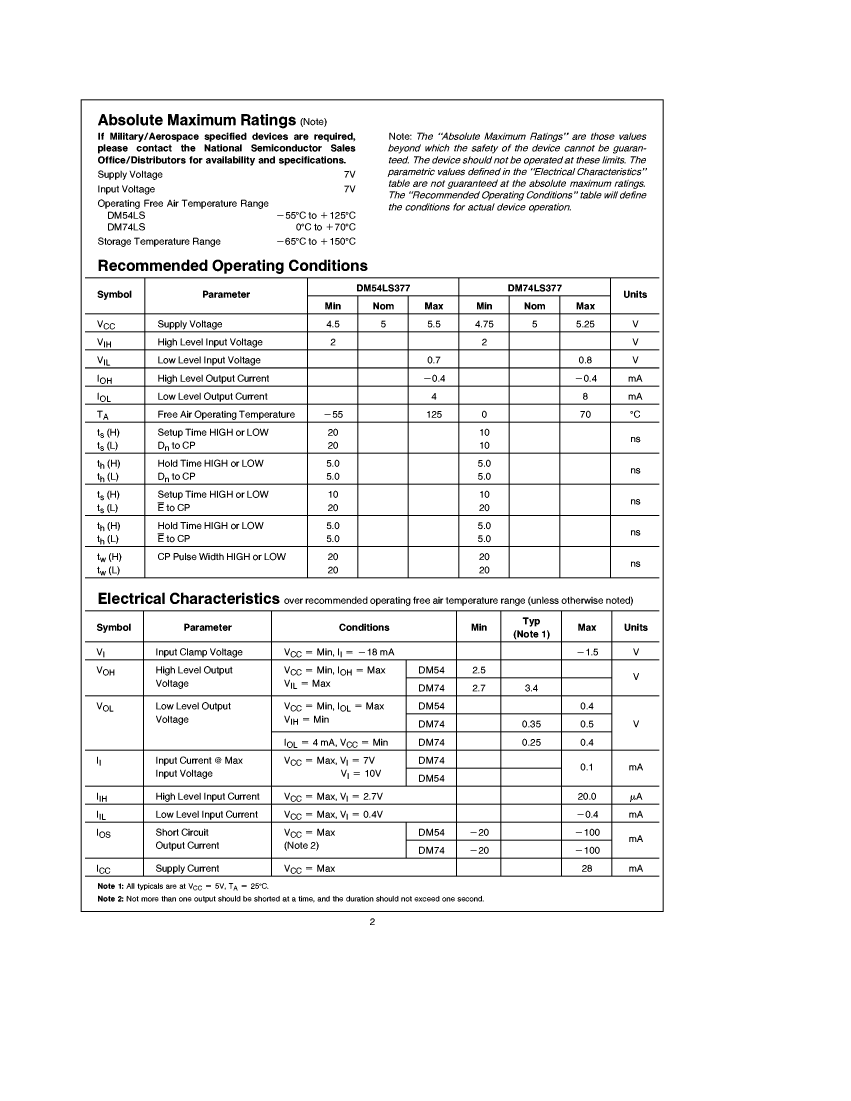

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	25 ns
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

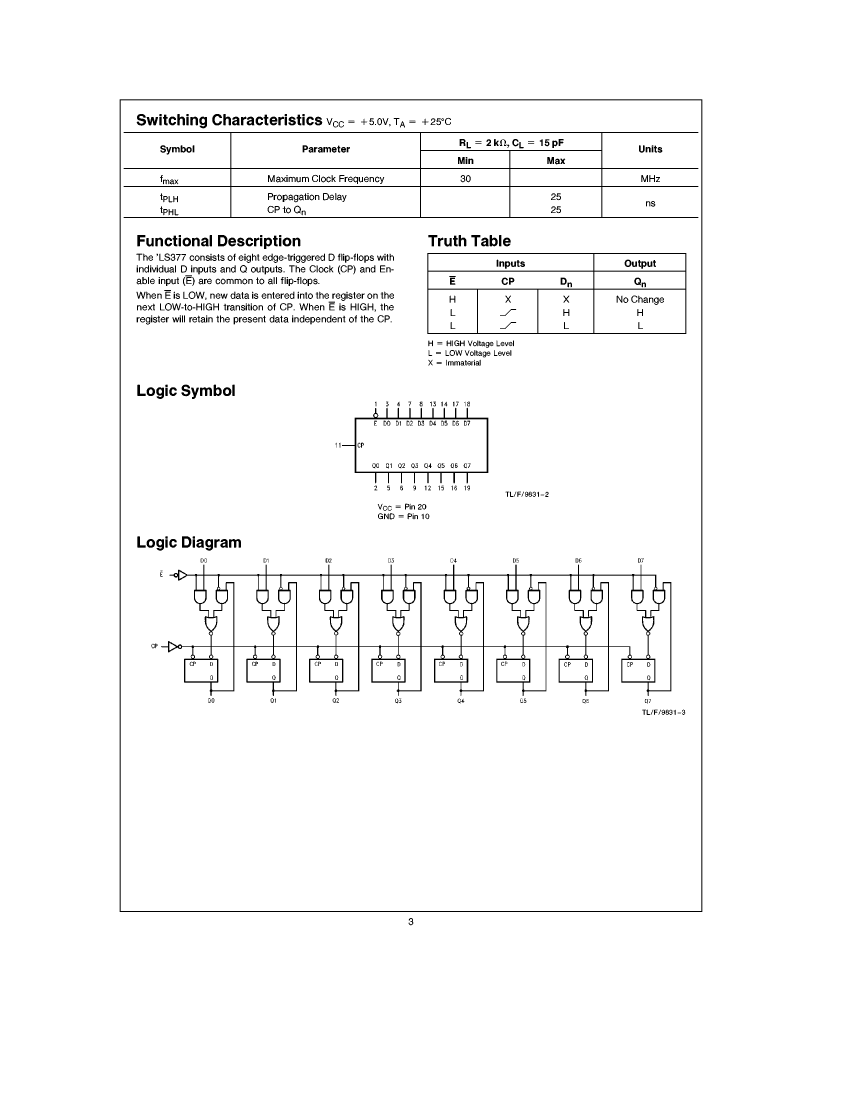

Trigger type	POSITIVE EDGE
width	8.89 mm
minfmax	30 MHz
Base Number Matches	1
