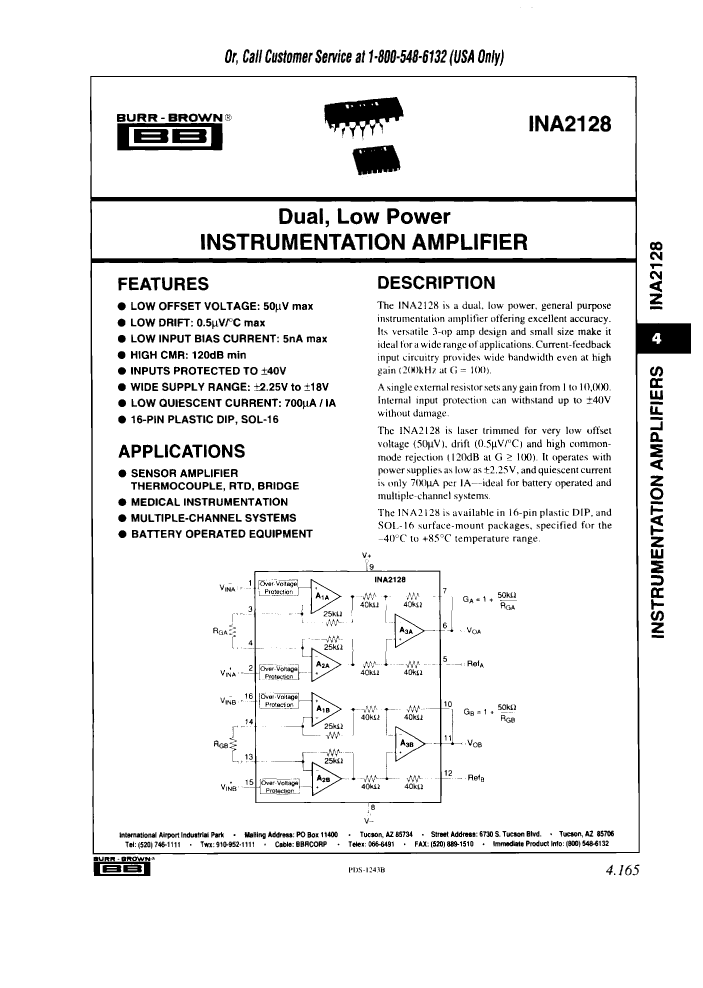

Basic information of INA2128UA-TR amplifier:
INA2128UA-TR is an INSTRUMENTATION AMPLIFIER.
INA2128UA-TR amplifier core information:
The minimum operating temperature of INA2128UA-TR is -40 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.01 µA and its maximum input offset current (IIO) is only 0.01 µA

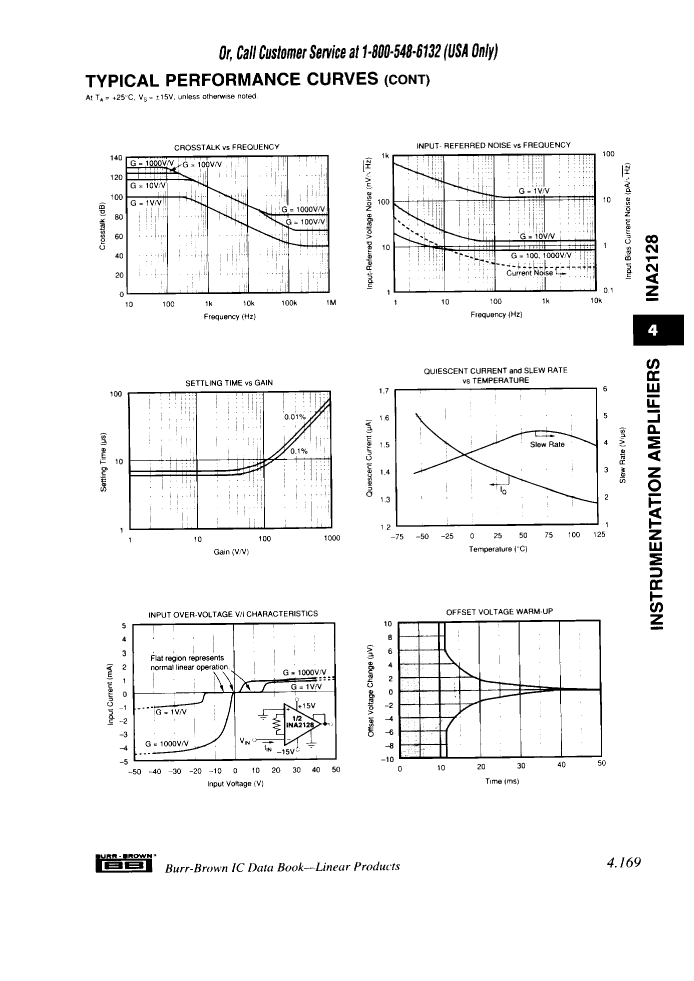

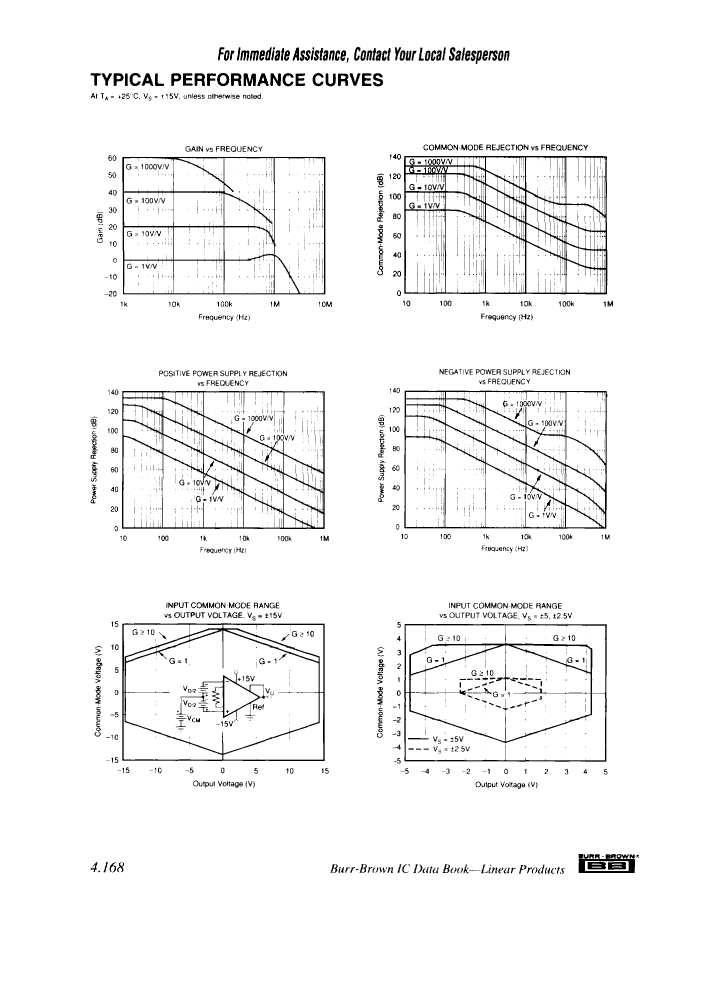

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of INA2128UA-TR is 4 V/us. Its maximum voltage gain is 10000 and its minimum voltage gain is 1. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the INA2128UA-TR gain becomes 0.707 times the low-frequency gain is 1.3 MHz.
The nominal supply voltage of INA2128UA-TR is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of INA2128UA-TR is 1125 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

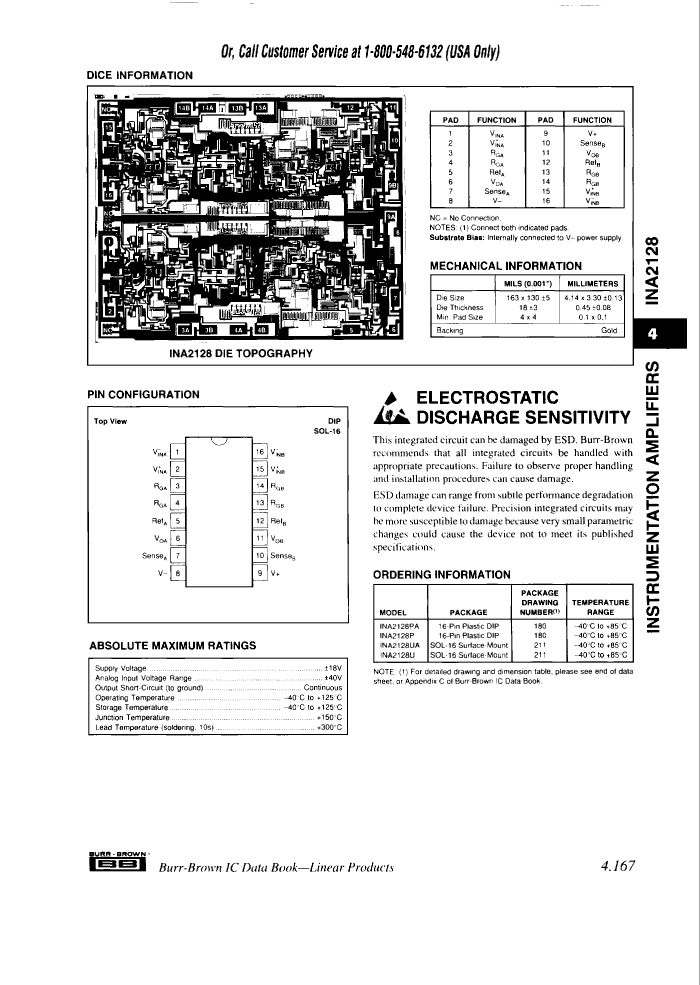

Related dimensions of INA2128UA-TR:
INA2128UA-TR has 16 terminals. Its terminal position type is: DUAL.
INA2128UA-TR amplifier additional information:
Its temperature grade is: INDUSTRIAL. The corresponding JESD-30 code is: R-PDSO-G16. INA2128UA-TR packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The form of INA2128UA-TR package pins is: SMALL OUTLINE.
Its terminal forms are: GULL WING.
Basic information of INA2128UA-TR amplifier:
INA2128UA-TR is an INSTRUMENTATION AMPLIFIER.
INA2128UA-TR amplifier core information:
The minimum operating temperature of INA2128UA-TR is -40 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.01 µA and its maximum input offset current (IIO) is only 0.01 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of INA2128UA-TR is 4 V/us. Its maximum voltage gain is 10000 and its minimum voltage gain is 1. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the INA2128UA-TR gain becomes 0.707 times the low-frequency gain is 1.3 MHz.
The nominal supply voltage of INA2128UA-TR is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of INA2128UA-TR is 1125 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of INA2128UA-TR:
INA2128UA-TR has 16 terminals. Its terminal position type is: DUAL.
INA2128UA-TR amplifier additional information:
Its temperature grade is: INDUSTRIAL. The corresponding JESD-30 code is: R-PDSO-G16. INA2128UA-TR packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The form of INA2128UA-TR package pins is: SMALL OUTLINE.
Its terminal forms are: GULL WING.

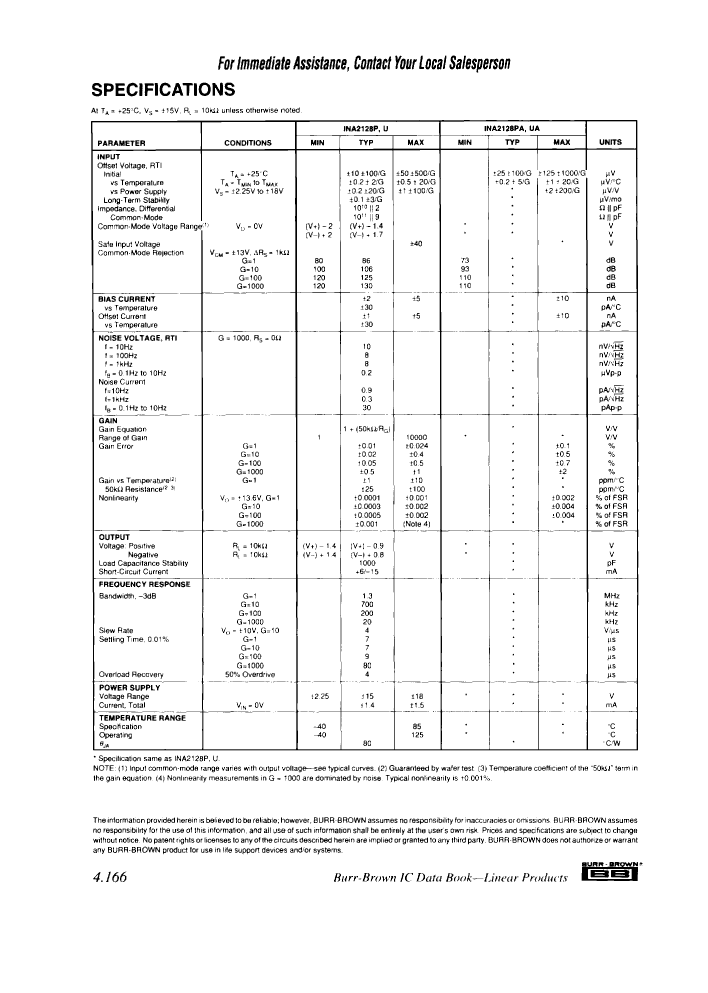

| Parameter Name | Attribute value |
| Maker | Burr-Brown |
| Reach Compliance Code | unknown |
| Amplifier type | INSTRUMENTATION AMPLIFIER |
| Maximum average bias current (IIB) | 0.01 µA |
| Nominal bandwidth (3dB) | 1.3 MHz |
| Minimum Common Mode Rejection Ratio | 73 dB |
| Maximum input offset current (IIO) | 0.01 µA |
| Maximum input offset voltage | 1125 µV |
| JESD-30 code | R-PDSO-G16 |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| maximum nonlinearity | 0.004% |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Nominal slew rate | 4 V/us |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Maximum voltage gain | 10000 |
| Minimum voltage gain | 1 |
| Base Number Matches | 1 |
| INA2128UA-TR | INA2128U-TR | |
|---|---|---|
| Description | Instrumentation Amplifier, 2 Func, 1125uV Offset-Max, 1.3MHz Band Width, PDSO16, | Instrumentation Amplifier, 2 Func, 550uV Offset-Max, 1.3MHz Band Width, PDSO16, |
| Maker | Burr-Brown | Burr-Brown |
| Reach Compliance Code | unknown | unknown |
| Amplifier type | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER |
| Maximum average bias current (IIB) | 0.01 µA | 0.005 µA |
| Nominal bandwidth (3dB) | 1.3 MHz | 1.3 MHz |
| Minimum Common Mode Rejection Ratio | 73 dB | 80 dB |
| Maximum input offset current (IIO) | 0.01 µA | 0.005 µA |
| Maximum input offset voltage | 1125 µV | 550 µV |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 |
| Negative supply voltage upper limit | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| maximum nonlinearity | 0.004% | 0.002% |
| Number of functions | 2 | 2 |
| Number of terminals | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified |
| Nominal slew rate | 4 V/us | 4 V/us |
| Supply voltage upper limit | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | YES | YES |
| Temperature level | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL |
| Maximum voltage gain | 10000 | 10000 |
| Minimum voltage gain | 1 | 1 |
| Base Number Matches | 1 | 1 |
