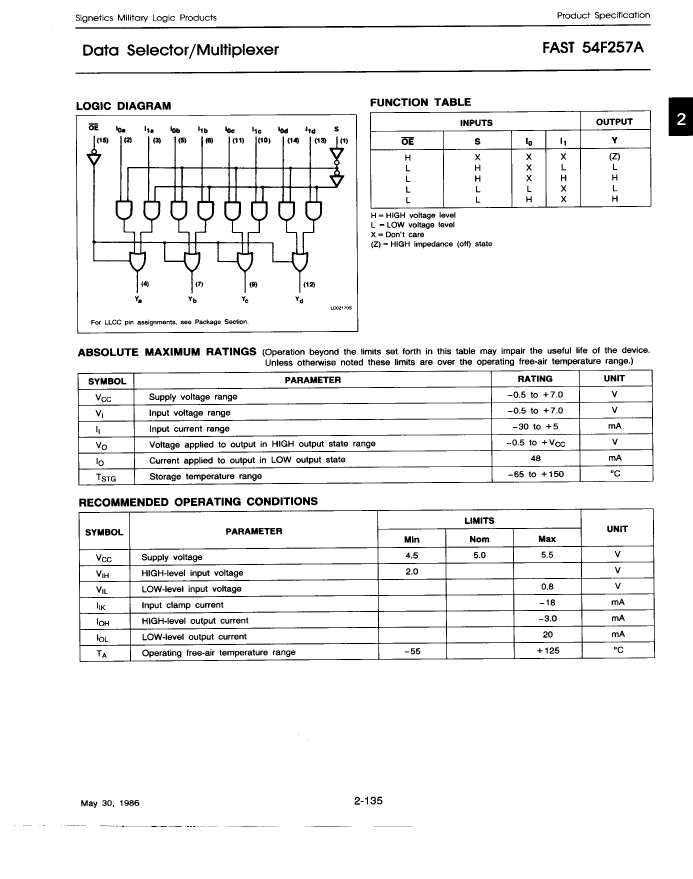

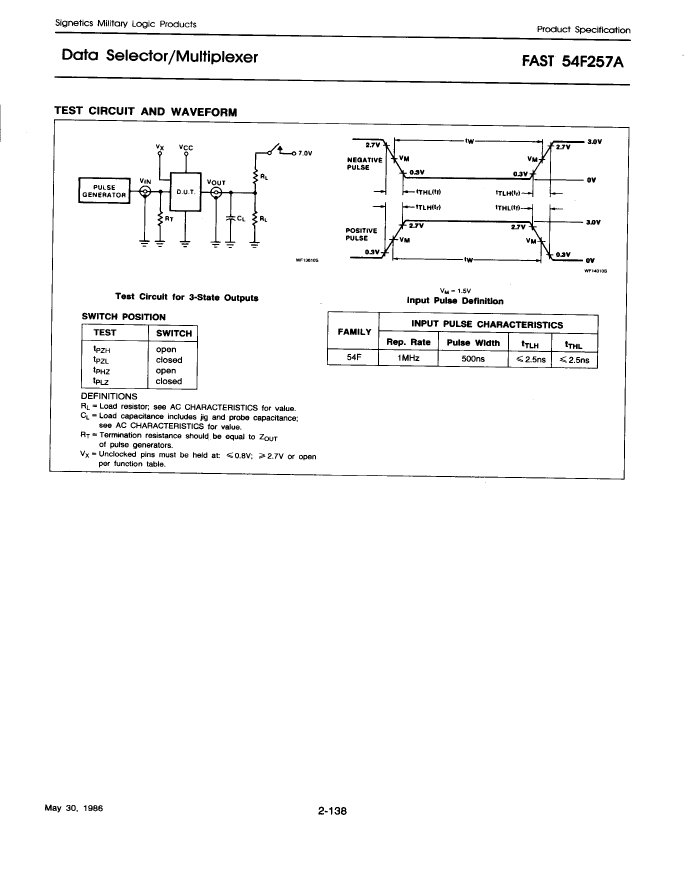

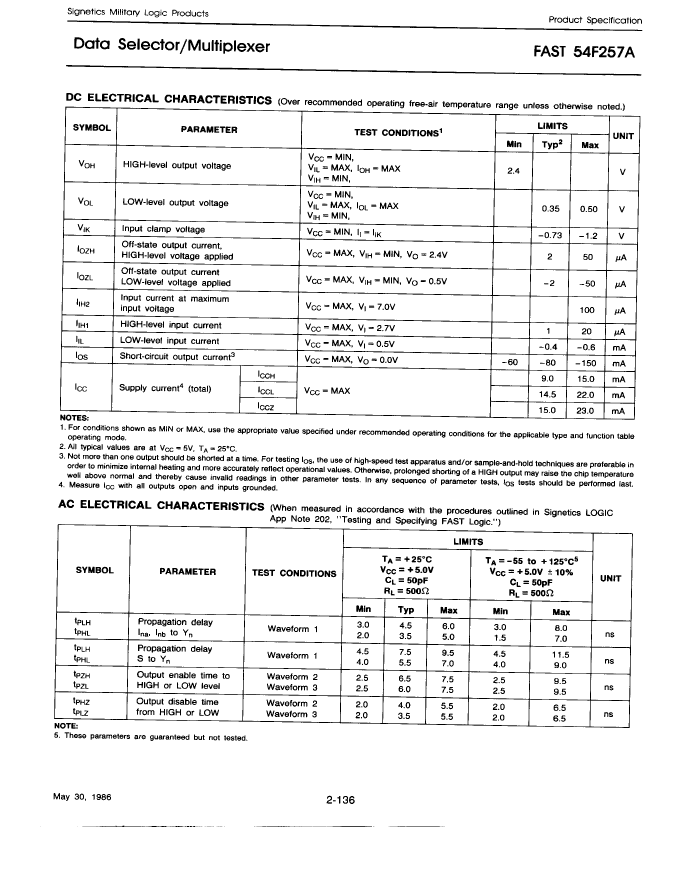

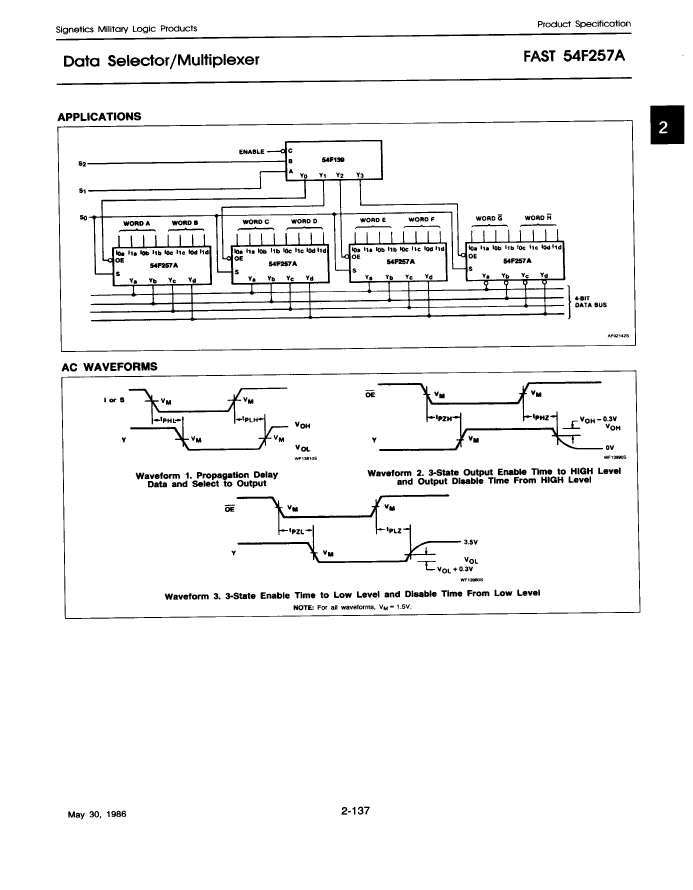

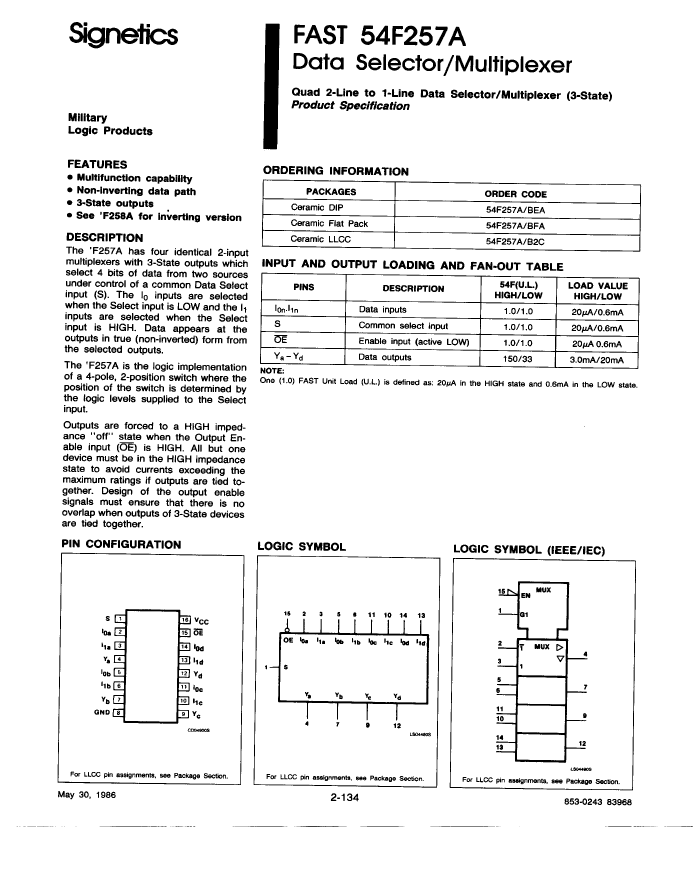

54F257A/B2C: DescriptionMultiplexer, 4-Func, 2 Line Input, TTL, CQCC20; Categorylogic logic; File Size137KB，5 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

54F257A/B2C Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	23 mA
Prop。Delay @ Nom-Sup	11.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54F257A/B2C	54F257A/BFA	54F257A/BEA
Description	Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Signetics	Signetics	Signetics
Reach Compliance Code	unknown	unknown	unknow
JESD-30 code	S-XQCC-N20	R-XDFP-F16	R-XDIP-T16
JESD-609 code	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.02 A	0.02 A	0.02 A
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DFP	DIP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	DIP16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	23 mA	23 mA	23 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Prop。Delay @ Nom-Sup	11.5 ns	11.5 ns	-
Base Number Matches	1	1	-
package instruction	-	DFP, FL16,.3	DIP, DIP16,.3
