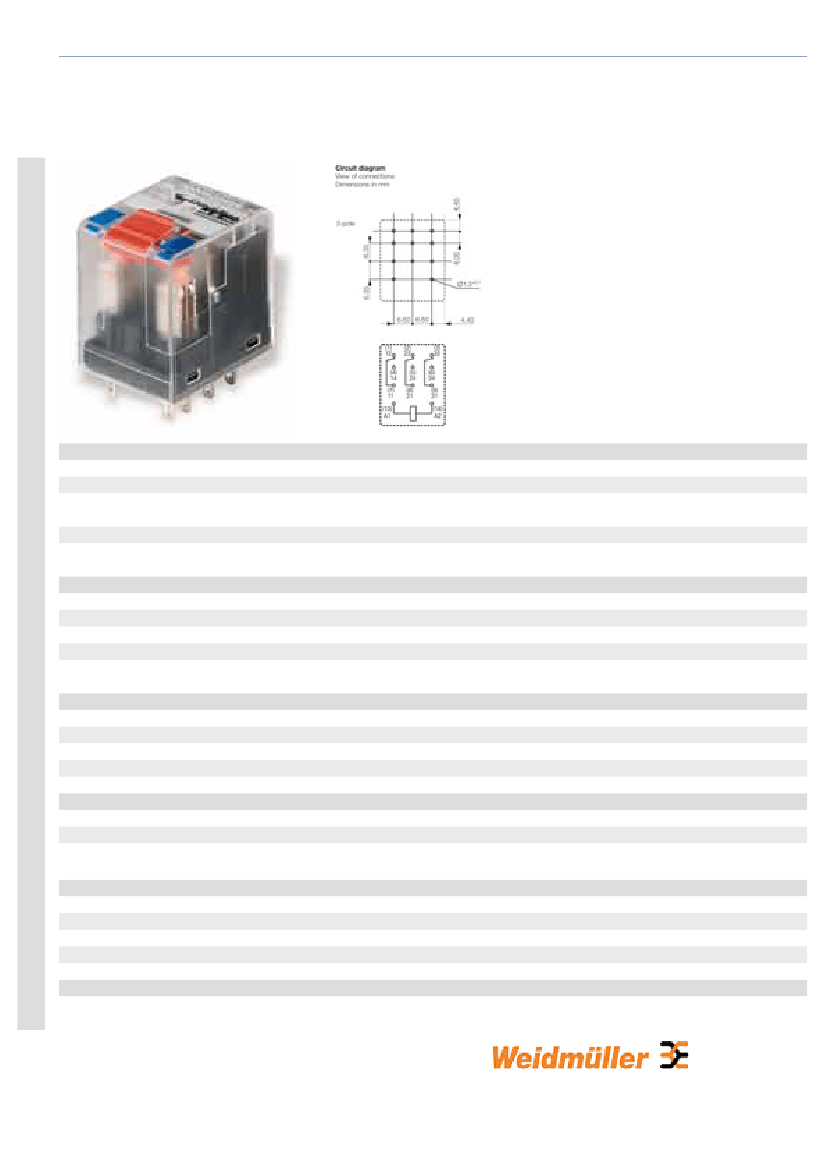

Preview

8690090000: DescriptionPower/Signal Relay, 3PDT, Momentary, 0.007A (Coil), 110VDC (Coil), 750mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE; CategoryMechanical and electronic products relay; File Size56KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8690090000 Overview

Power/Signal Relay, 3PDT, Momentary, 0.007A (Coil), 110VDC (Coil), 750mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE

8690090000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
package instruction	CADMIUM FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH TEST BUTTON AND LED
body width	22.5 mm
body height	29 mm
Body length or diameter	28 mm
Maximum coil current (DC)	0.007 A
Coil operating voltage (DC)	82.5 V
Coil power	750 mW
Coil release voltage (DC)	11 V
Coil resistance	16176.47 Ω
Maximum coil voltage (DC)	110 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Manufacturer's serial number	8690090000
Installation features	PANEL MOUNT
operating hours	15 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	28mm x 22.5mm x 29mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
seal	IP20
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage DC coil

Rated current DC

Power rating

Status indicator

Output

Continuous current

Max. switching power

Max. switching voltage AC

Sparkover time / Drop-out time

Contact data

Number of contacts

Contact base material

Mechanical service life

Rated data

Connection system

DIN Rail compatibility

UL 94 flammability class

Ambient temperature (operational)

8690090000

RCM370M10

Relay, 3 CO contact, 110 V DC , 10 A, Plug-in

connection

4032248360758

10 pc(s).

110 V DC

82.5 V / 11.0 V

6.8 mA

750 mW

LED

10 A

2500 VA

250 V

15ms / 10ms

3

AgNi 90/10

6

30*10 switching cycles

Plug-in connection

TS 35

V-0

-40 °C...+70 °C

Insulation coordination (EN 50 178)

Clearance and creepage distances for control side ≤ 4mm

- load side

-1-
