Product datasheet
Characteristics
XB6AE1G1B

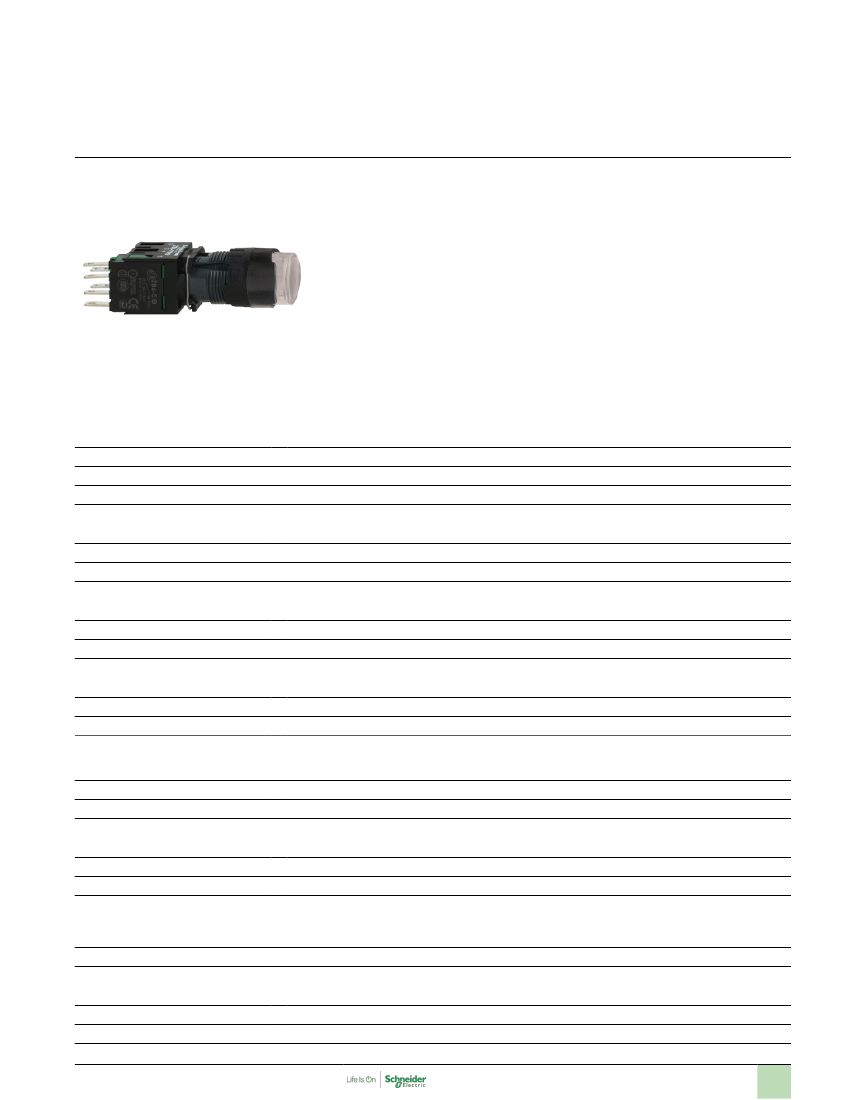

white projecting complete illum pushbutton Ø16
spring return 1NO 48...120V
Range of product
Product or component type
Device short name
Bezel material
Mounting diameter
Sale per indivisible quantity
Shape of signaling unit head
Type of operator
Operator profile
Contacts type and composition
Contact operation
Connections - terminals
Light source
Bulb base
[Us] rated supply voltage
Harmony XB6
Complete illuminated push-button
XB6
Plastic
16 mm
1
Round
Spring return
White projecting unmarked
1 NO
Slow-break
Faston connectors (2.8 x 0.5 mm)
LED
Integral LED
48...120 V AC
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Operating position
Positive opening
Operating travel
Operating force
Contacts material
Short-circuit protection
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
24 Dec, 2018
18 mm
18 mm
61 mm
(13-14)NO
0.025 kg
Any position
With positive opening conforming to EN/IEC 60947-5-1 appendix K
1 mm (NO changing electrical state)
3.5 mm (total travel)
3.5 N NO changing electrical state
Silver alloy (Ag/Ni)
6 A cartridge fuse type gG
250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
4 kV conforming to EN/IEC 60947-1
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
Main
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
Electrical durability
1000000 cycles, AC-15 at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC
60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC
60947-5-1 appendix C
Λ = 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Steady
6...30 V AC/DC
15 mA
1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5
Electrical reliability
Signalling type
Supply voltage limits
Current consumption
Surge withstand
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Electrical shock protection class
IP degree of protection
NEMA degree of protection
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
IP65 conforming to IEC 60529
NEMA 4 conforming to CSA C22.2 No 94
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
CSA C22.2 No 14
CCC
CSA
GOST
UL
+/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
2 kV conforming to IEC 61000-4-4
10 V/m conforming to IEC 61000-4-3
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Class B conforming to IEC 55011
Standards
Product certifications
Vibration resistance
Shock resistance
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
Electromagnetic emission
Contractual warranty
Warranty period
18 months
2
