HD6433522F10 datasheet, PDF - EEWORLD Datasheet

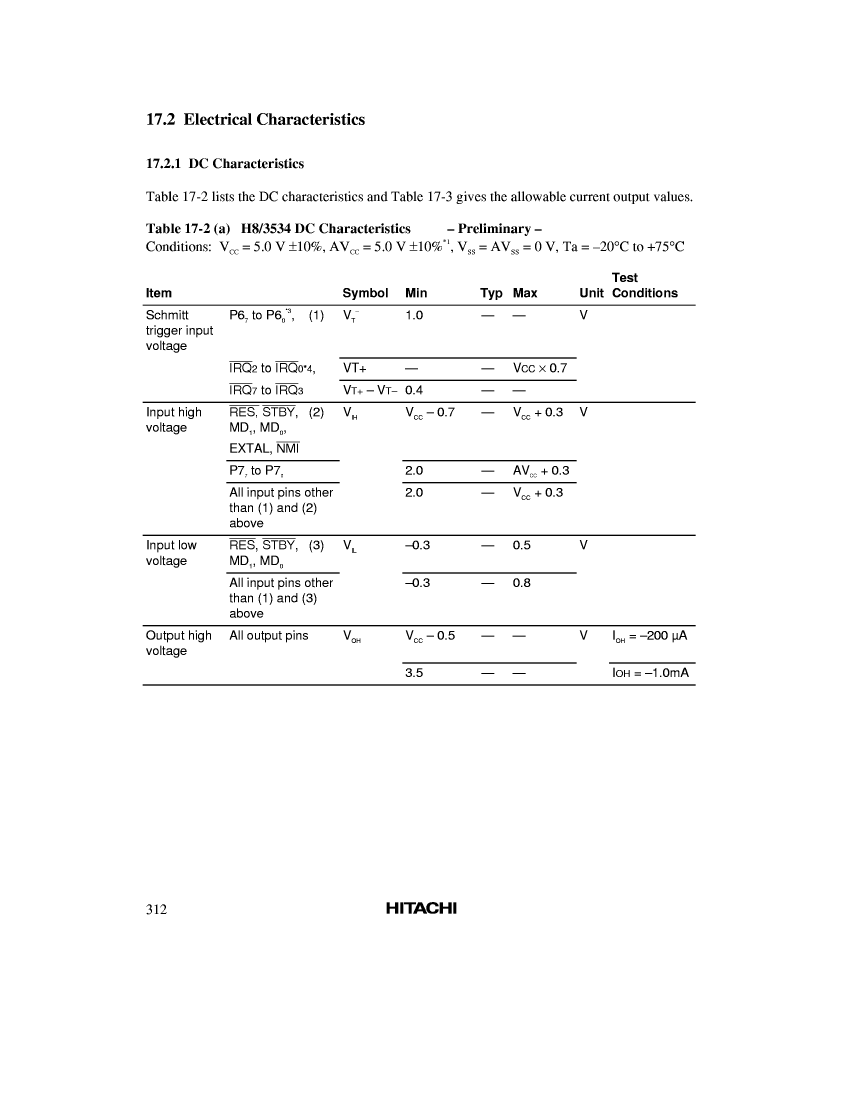

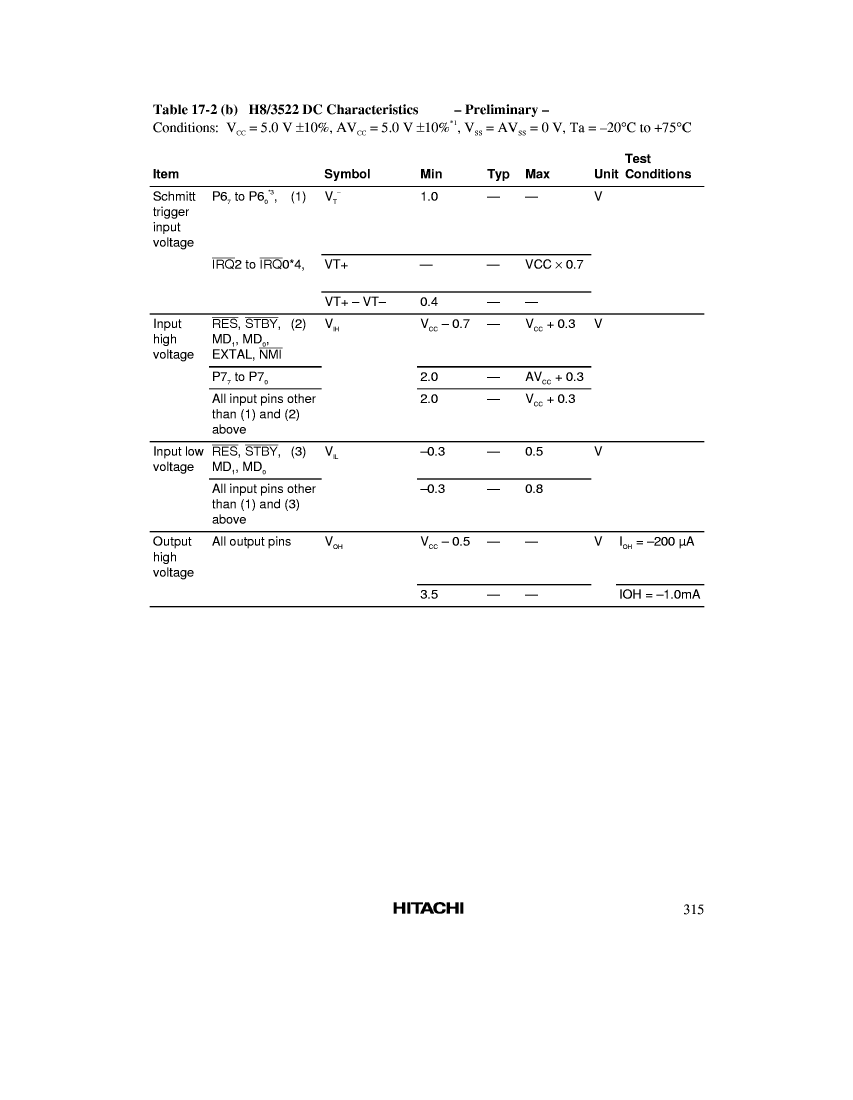

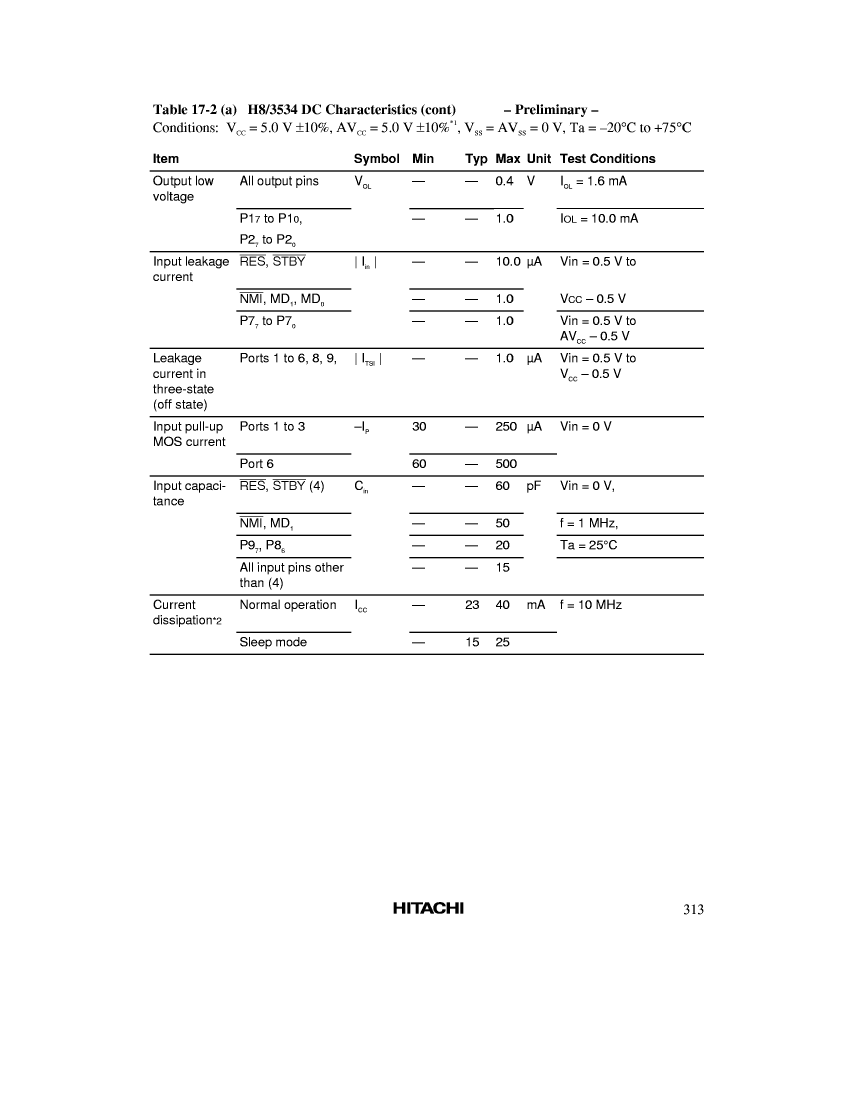

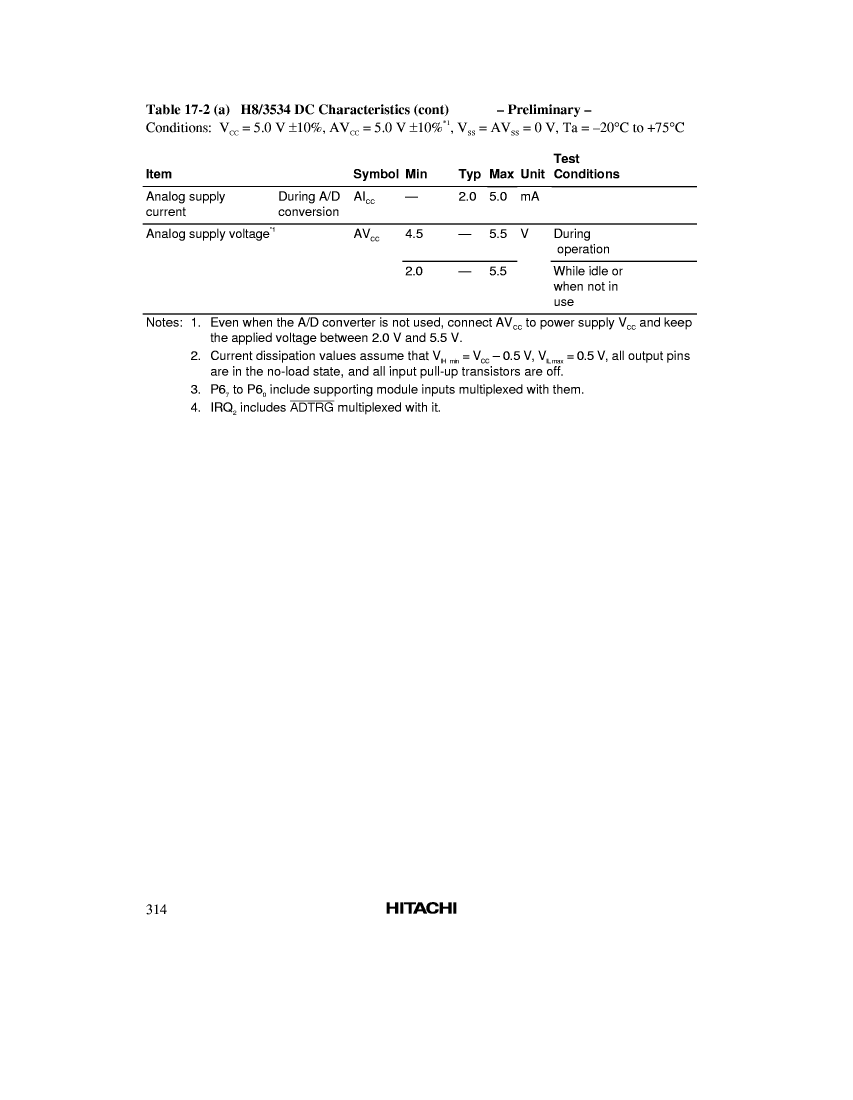

HD6433522F10: DescriptionMicrocontroller, 8-Bit, MROM, H8/300 CPU, 10MHz, CMOS, PQFP64, QUAD-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size527KB，21 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD6433522F10 Overview

Microcontroller, 8-Bit, MROM, H8/300 CPU, 10MHz, CMOS, PQFP64, QUAD-64

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
package instruction	QFP, QFP64,.66SQ,32
Reach Compliance Code	unknown
bit size	8
CPU series	H8/300
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.66SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	16384
ROM programmability	MROM
speed	10 MHz
Maximum slew rate	40 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Base Number Matches	1

	HD6433522F10	HD6433534F10
Description	Microcontroller, 8-Bit, MROM, H8/300 CPU, 10MHz, CMOS, PQFP64, QUAD-64	Microcontroller, 8-Bit, MROM, H8/300 CPU, 10MHz, CMOS, PQFP64, QUAD-80
Is it Rohs certified?	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
package instruction	QFP, QFP64,.66SQ,32	QFP, QFP64,.66SQ,32
Reach Compliance Code	unknown	unknown
bit size	8	8
CPU series	H8/300	H8/300
JESD-30 code	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0
Number of terminals	64	64
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP64,.66SQ,32	QFP64,.66SQ,32
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	512	1024
rom(word)	16384	32768
ROM programmability	MROM	MROM
speed	10 MHz	10 MHz
Maximum slew rate	40 mA	40 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
Base Number Matches	1	1
