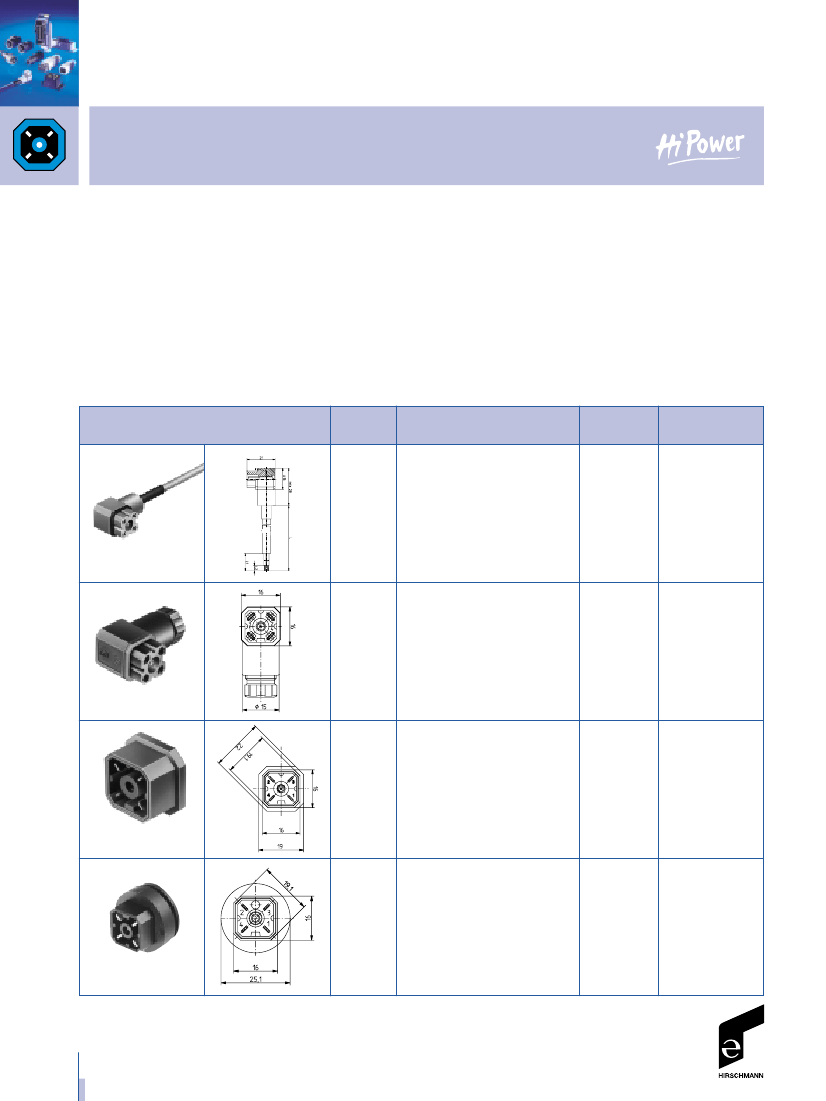

Connectors for mains connection
G-series
Product description
• Compact and robust series of ang-
led connectors protected against
dust and water jets (IEC 60529-IP
65) with VDE expertise
K
• Cable sockets, can be assembled
as required and with injection-moul-
ded leads in different lengths
• Surface-mounted connectors with
solder- and crimp contacts, also
suitable for mounting to light bar-
3110
IEC 60947-5-2
riers by ultrasonic welding
Product characteristics
• Big variety of versions
•
· Two different series (G/GO) coded
to prevent confusion
•
· Number of poles 2-7,
with/without PE
• Operating voltage up to
250 V AC / DC
• Exceptionally small dimensions,
therefore particularly suitable for
electrical connections in hydraulic
and pneumatic control systems
even in very confined spaces
• For actuators, sensors, signalling
systems, miniature drives, electro-
medical equipment, suitable for
use under extreme conditions,
heavy machine construction

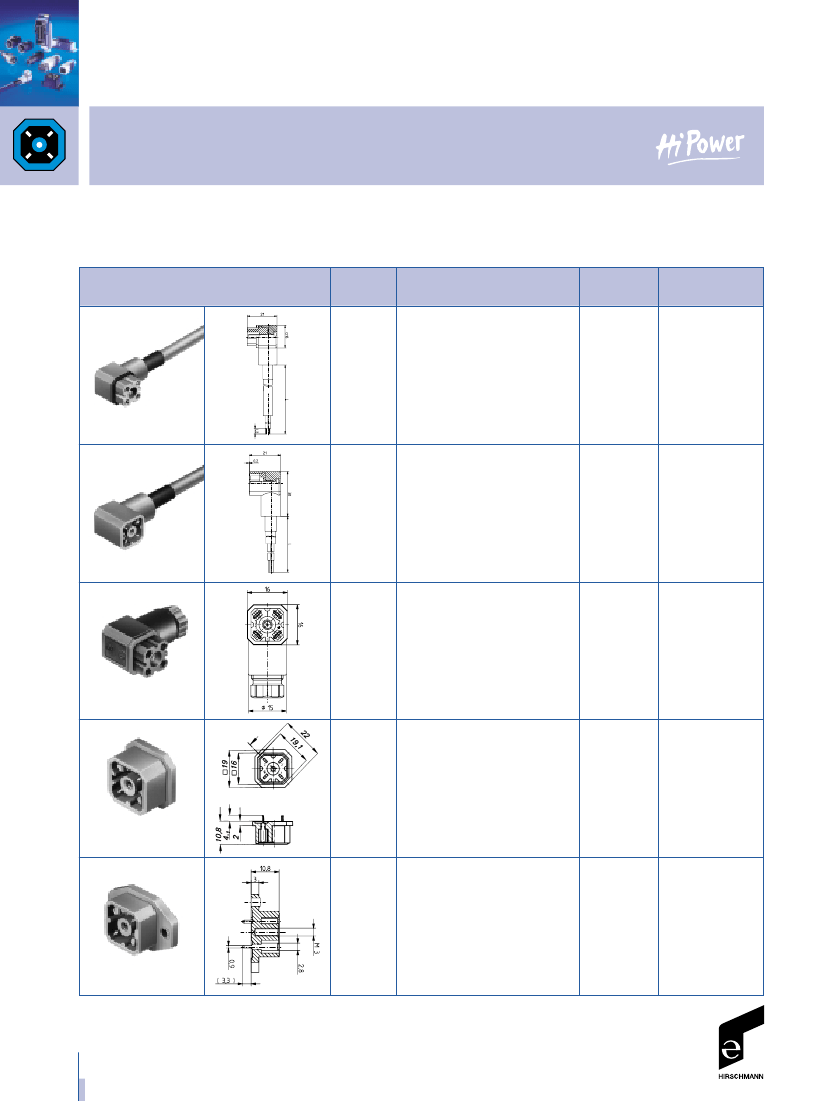

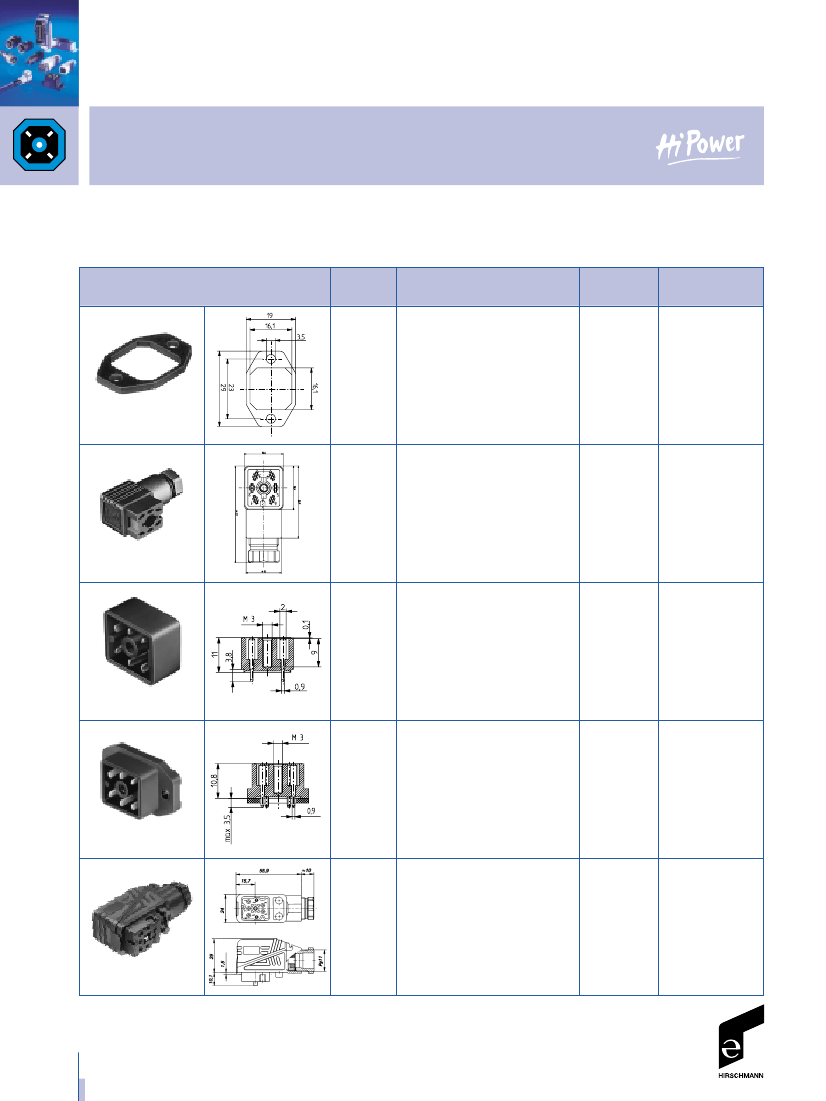

Type
Number
of poles
2
Description
Colour
Order no.
Cable socket
with moulded-on lead
Cable length: 1,5 m
Operating voltage:
black
931 494-603
G 2 KW 1 F
4
50 V AC / DC
Cable socket
with PG 7 cable gland,
with solder contacts
Operating voltage:
black
grey
932 157-100
932 157-106
G4W1F
4
50 V AC / DC
Suface-mounted connectors
for printed circuit boards,
with solder contacts
Operating voltage:
grey
931 807-106
G4A1M
4
50 V AC / DC
Press-fit surface-mounted
connector,
with solder contacts
Operating voltage:
black
932 823-100
G 4 A 1 M MT
50 V AC / DC
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
20

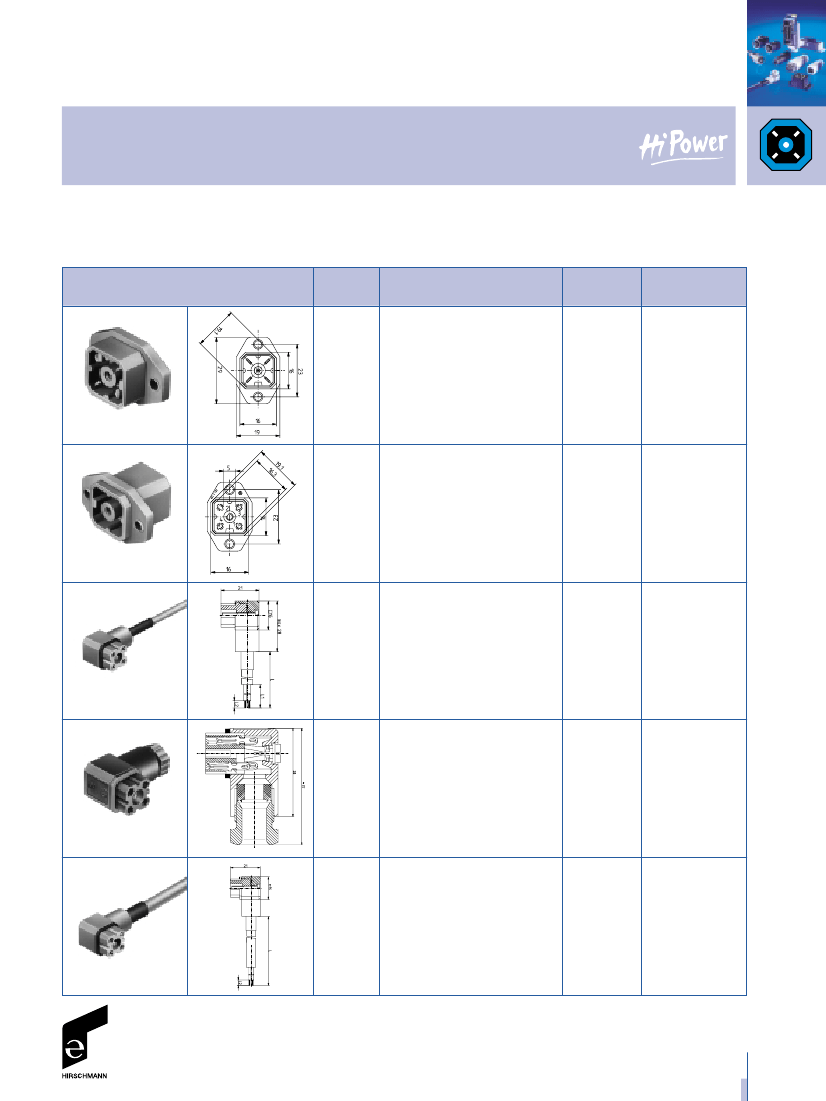

Industrial connectors
Connectors for mains connection
G-series
IEC 60947-5-2
Type
Number
of poles
2 + PE
Description
Colour
Order no.
Cable socket
with moulded-on lead
Cable length: 3 m
Operating voltage:
grey
932 041-002
G 20 KW 3 F
2 + PE
250 V AC / DC
Cable connector
with moulded-on lead
Cable length: 1,5 m
Operating voltage:
grey
931 793-001
G 20 KW 3 M
3 + PE
250 V AC / DC
Cable socket
with PG 7 cable gland,
with solder contacts
Operating voltage:
black
grey
932 186-100
932 186-106
G 30 W 3 F
3 + PE
250 V AC / DC
Surface-mounted connector
for printed circuit boards,
with solder contacts
Operating voltage:
grey
931 700-106
G 30 A 3 M
3 + PE
250 V AC / DC
Surface-mounted connector
with flange,
with solder contacts
Operating voltage:
black
932 840-100
G 30 A 5 M
250 V AC / DC
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
22

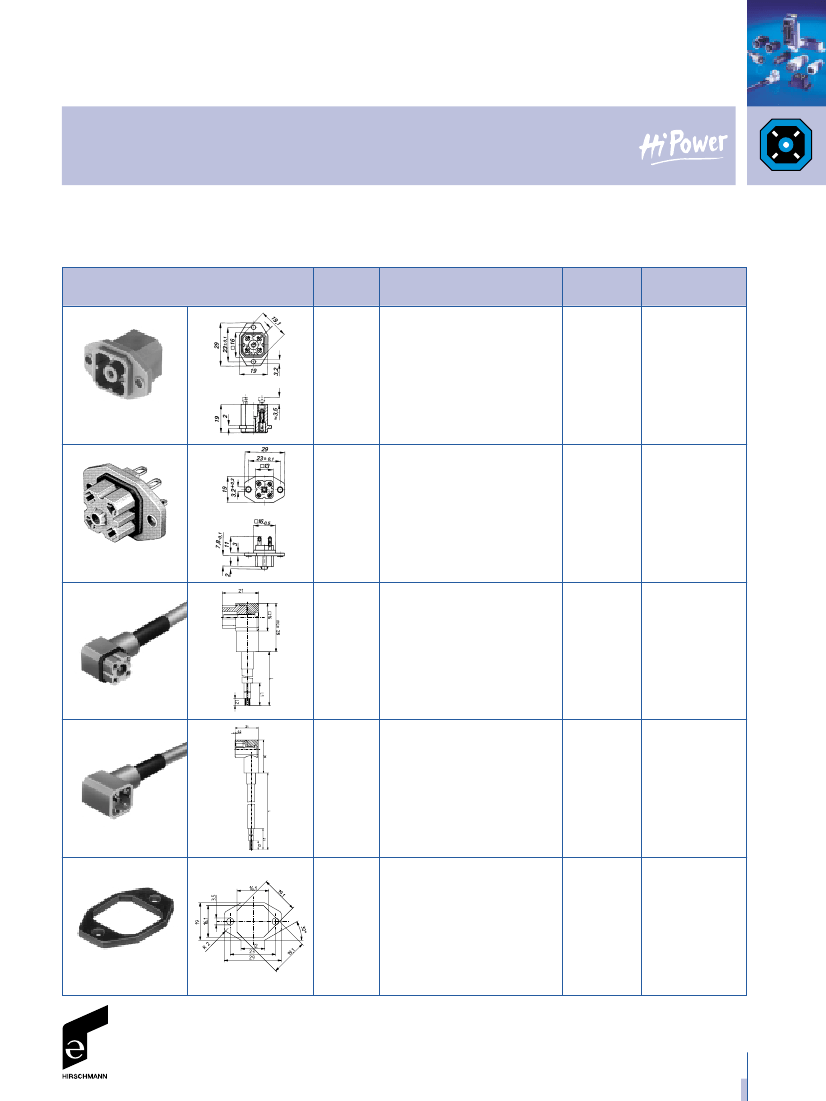

Industrial connectors
Connectors for mains connection
G-series
IEC 60947-5-2
Type
Number
of poles
–
Description
Colour
Order no.
Flat gasket NBR,
0,8 mm thick
733 415-002
G 30 E - 2
6
Cable socket
with PG 7 cable gland,
with solder contacts
Operating voltage:
GO 6 WF
6
50 V AC / DC
Surface-mounted connector
for printed circuit boards,
with solder contacts
Operating voltage:
GO 6 UM
6
50 V AC / DC
Surface-mounted connector
with flange,
with solder contacts
Operating voltage:
GO 6 FAV M
7
50 V AC / DC
Cable socket
with PG 11 cable gland,
with solder contacts
Operating voltage:
GO 070 WF
50 V AC / DC
black
932 483-100
black
932 669-100
black
932 350-100
black
932 447-100
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
24
Industrial connectors
