DSOT03C-LF-T13: DescriptionTrans Voltage Suppressor Diode, 100W, 3.3V V(RWM), Bidirectional, 2 Element, Silicon, ROHS COMPLIANT, DFN-3; CategoryDiscrete semiconductor diode; File Size85KB，4 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DSOT03C-LF-T13 Overview

Trans Voltage Suppressor Diode, 100W, 3.3V V(RWM), Bidirectional, 2 Element, Silicon, ROHS COMPLIANT, DFN-3

DSOT03C-LF-T13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DFN
package instruction	R-PDSO-N3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Minimum breakdown voltage	4 V
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-N3
Maximum non-repetitive peak reverse power dissipation	100 W
Number of components	2
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	3.3 V
surface mount	YES
technology	AVALANCHE
Terminal form	NO LEAD
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

05265

DSOT03C

thru

DSOT05C

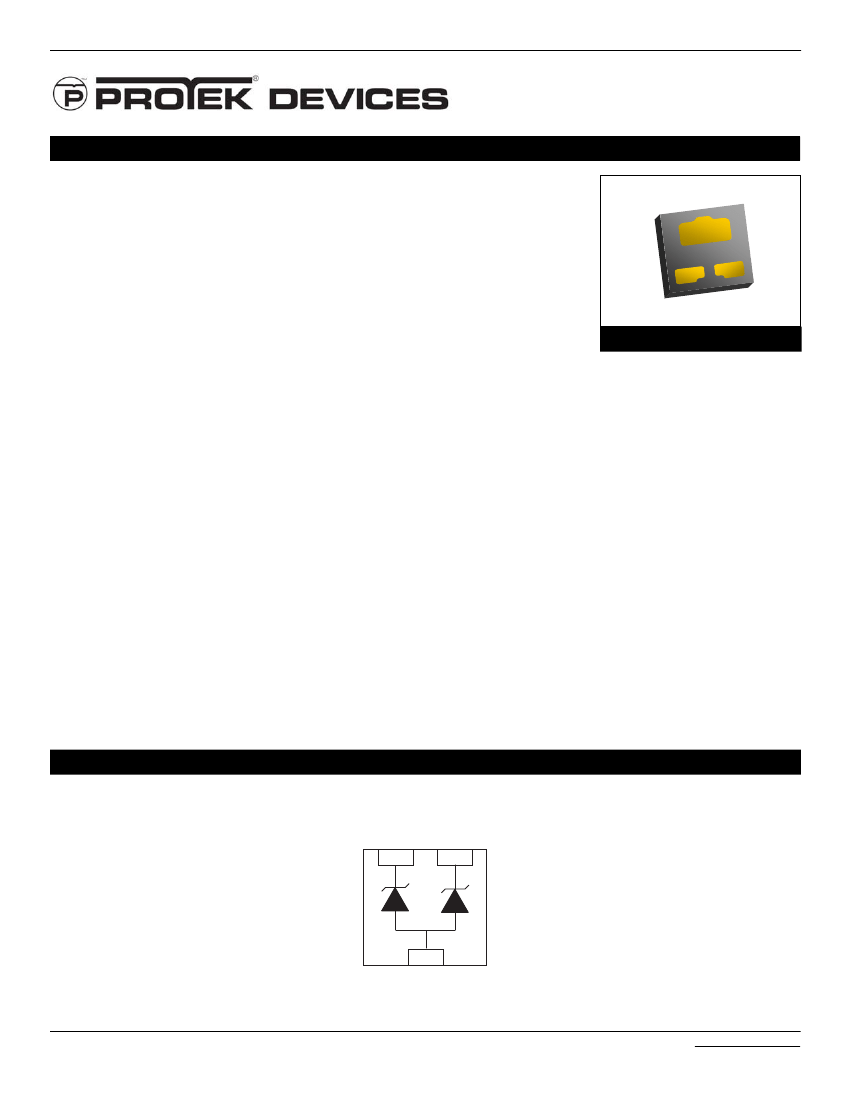

LOW CAPACITANCE TVS ARRAY

APPLICATIONS

✔

RS-232, RS-422 & RS-423

Cellular Phones

Notebooks

Control & Monitoring Systems

Portable Electroincs

Wireless Bus Protection

IEC COMPATIBILITY

(EN61000-4)

✔

61000-4-2 (ESD): Air - 15kV, Contact - 8kV

✔

61000-4-4 (EFT): 40A - 5/50ns

✔

61000-4-5 (Surge): 24A, 8/20μs - Level 2(Line-Ground) & Level 3(Line-Line)

DFN-3

DFN-6

FEATURES

✔

ESD Protection > 40 kilovolts

✔

100 Watts Peak Pulse Power per Line (tp = 8/20μs)

✔

Low Clamping Voltage

✔

Available in 3V & 5V

✔

Bidirectional Configuration

✔

RoHS Compliant

MECHANICAL CHARACTERISTICS

✔

DFN-3 Package

✔

Available in Lead-Free Nickel-Paladium-Gold Plating

✔

Solder Reflow Temperature:

Nickel-Paladium-Gold (Ni/Pd/Au) - Sn/Ag/Cu, 96/3.5/0.5: 260-270°C

✔

Flammability Rating UL 94V-0

✔

Device Marking: Marking Code

✔

8mm Tape and Reel Per EIA Standard 481

PIN CONFIGURATION

05265.R1 1/10

www.protekdevices.com
