30WQ03FTR

Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3.3A, 30V V(RRM), Silicon, TO-252AA, DPAK-3
CategoryDiscrete semiconductor    diode
File Size38KB,4 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

30WQ03FTR Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3.3A, 30V V(RRM), Silicon, TO-252AA, DPAK-3

30WQ03FTR Parametric

Parameter NameAttribute value
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-252AA
package instructionR-PSSO-G2
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresFREE WHEELING DIODE
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.56 V
JEDEC-95 codeTO-252AA
JESD-30 codeR-PSSO-G2
JESD-609 codee0
Maximum non-repetitive peak forward current470 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Maximum output current3.3 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum repetitive peak reverse voltage30 V
Maximum reverse current12000 µA
surface mountYES
technologySCHOTTKY
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationSINGLE
Base Number Matches1
PD-2.301 rev. A 12/97
30WQ03F
30WQ04F
SCHOTTKY RECTIFIER
3.3 Amp

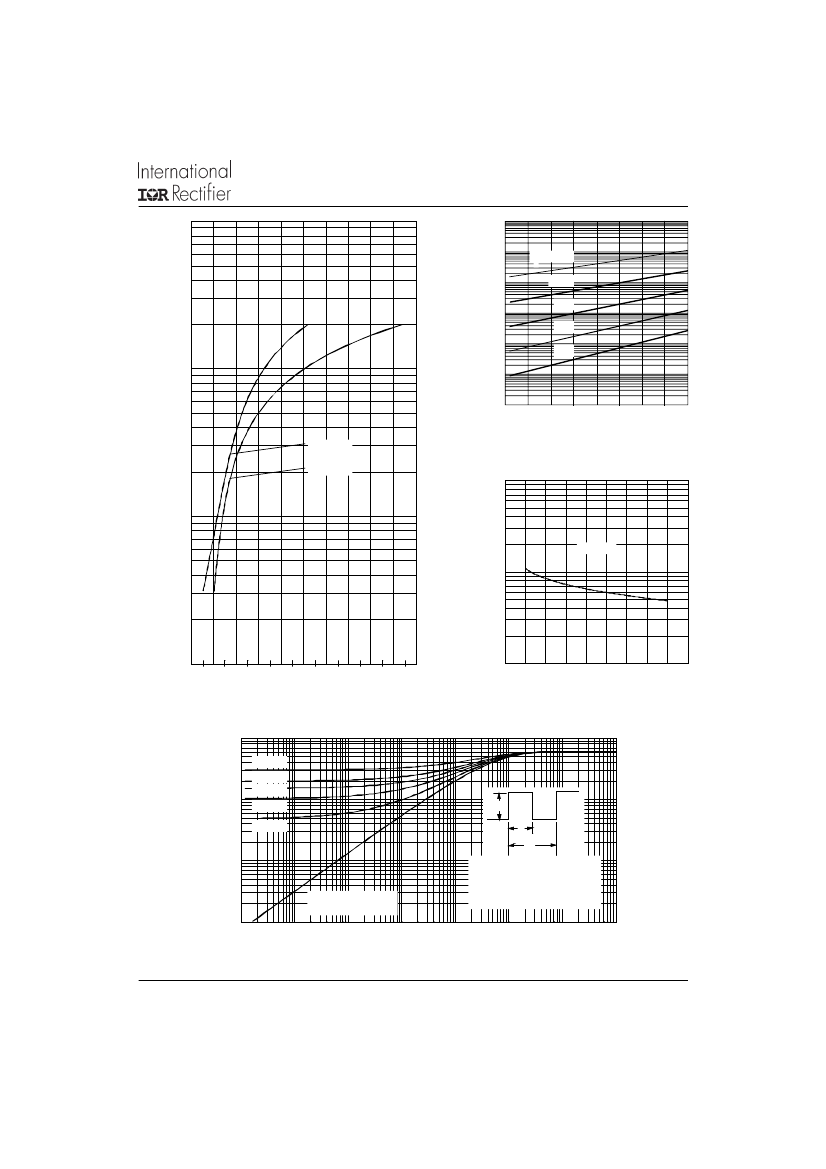

Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 3 Apk, T
J
= 25°C
range
Description/Features
Units
A
V
A
V
°C
The 30WQ..F surface mount Schottky rectifier has been de-
signed for applications requiring low forward drop and small foot
prints on PC board. Typical applications are in disk drives,
switching power supplies, converters, free-wheeling diodes,
battery charging, and reverse battery protection.
Popular D-PAK outline
Small foot print, surface moutable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
30WQ..F
3.3
30/40
470
0.62
- 40 to 125

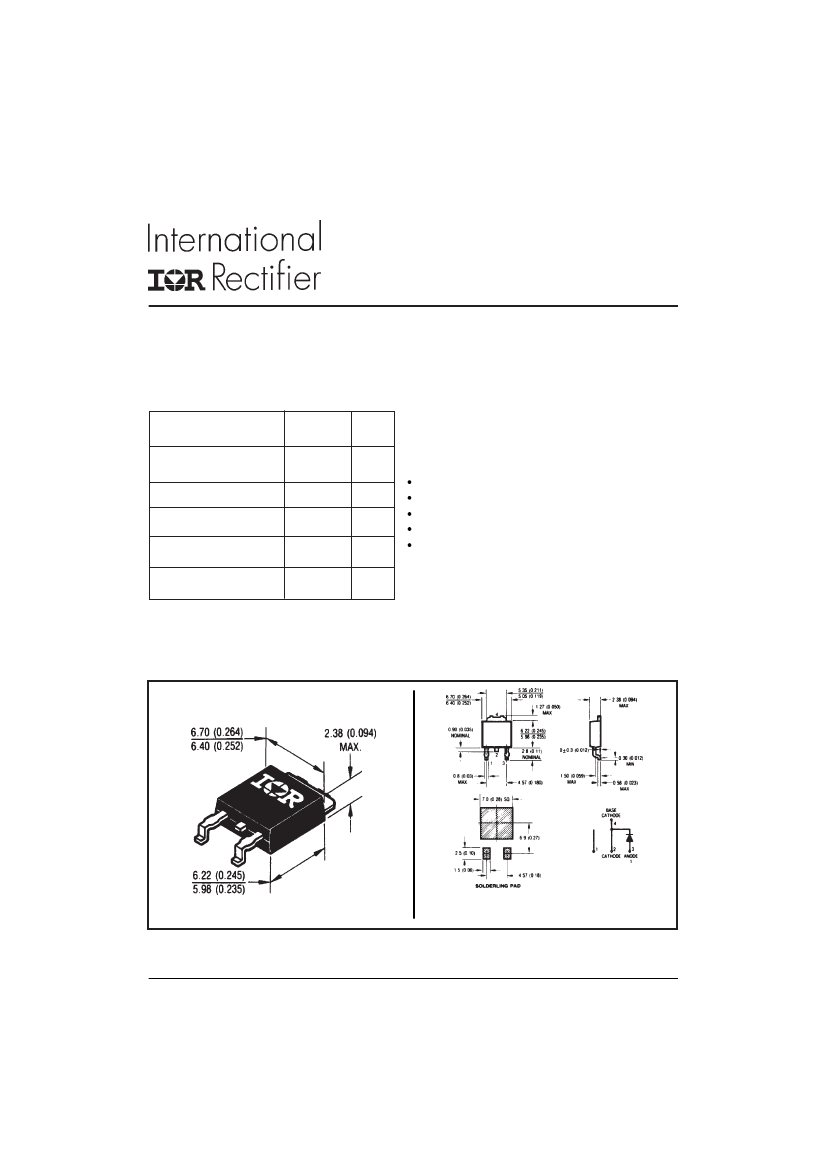

CASE STYLE AND DIMENSIONS
D - PAK Outline (Similar to TO-252AA)
Dimensions in millimeters and inches
www.irf.com
1
