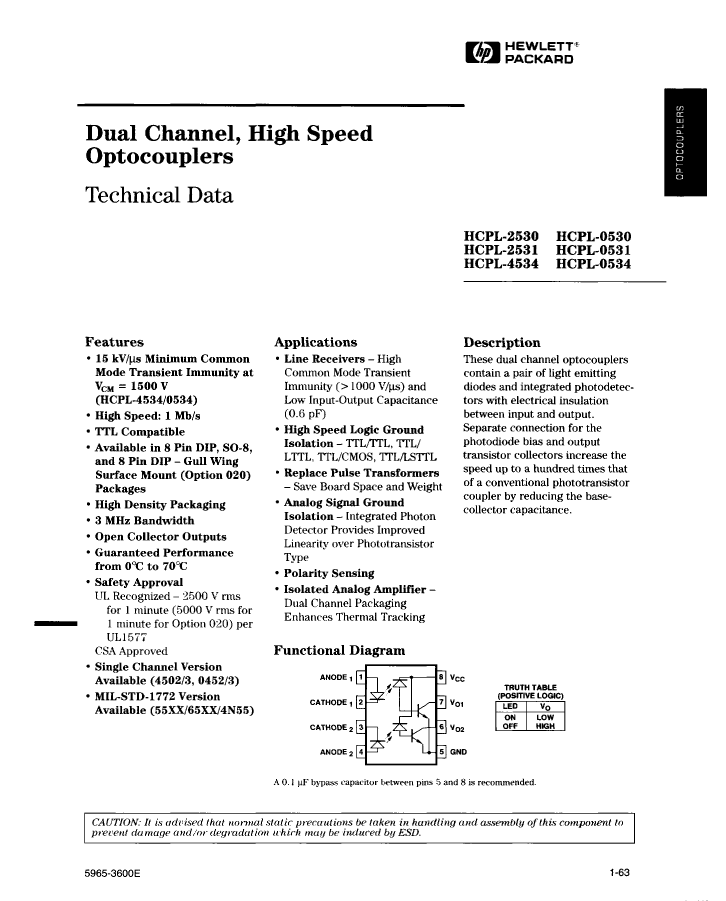

HCPL-2531#520 Overview

Logic IC Output Optocoupler, 2-Element, 5000V Isolation, 1MBps, 0.300 INCH, DIP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	HP（Keysight）

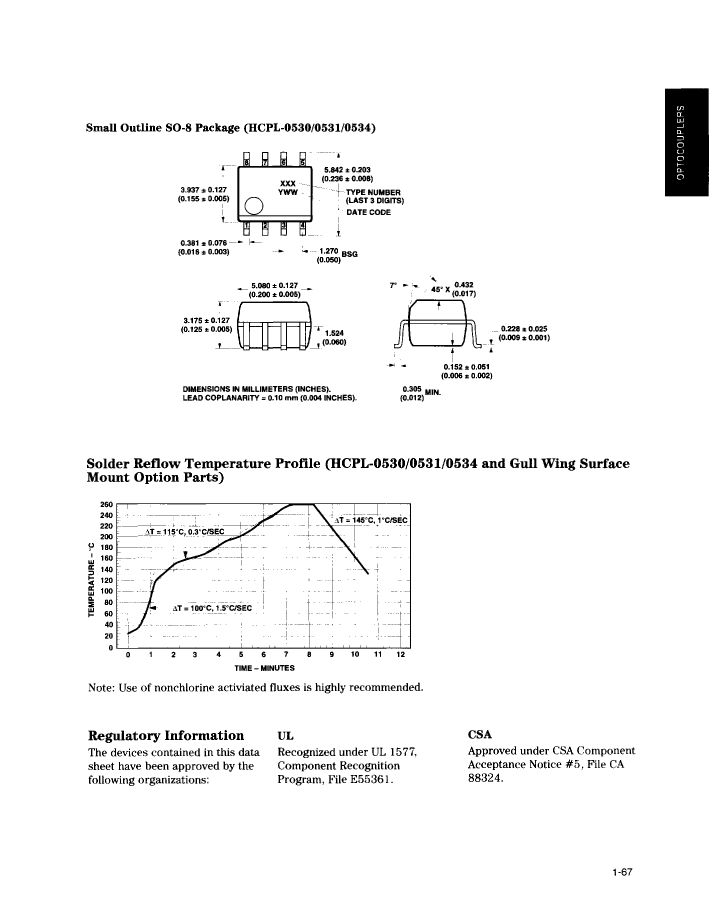

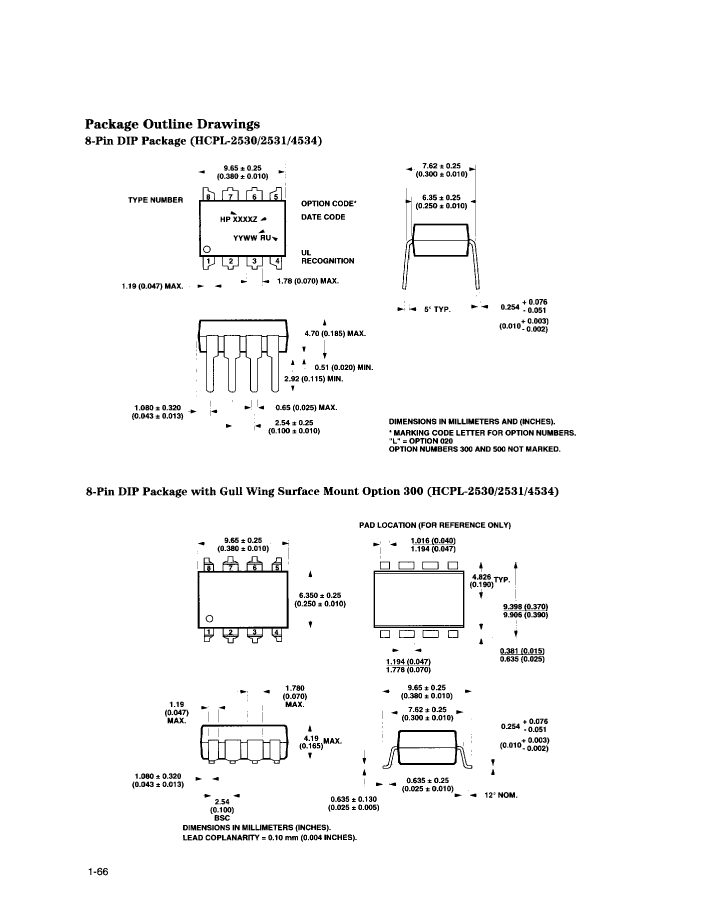

package instruction	0.300 INCH, DIP-8
Reach Compliance Code	unknown
Other features	OPEN COLLECTOR, UL RECOGNIZED

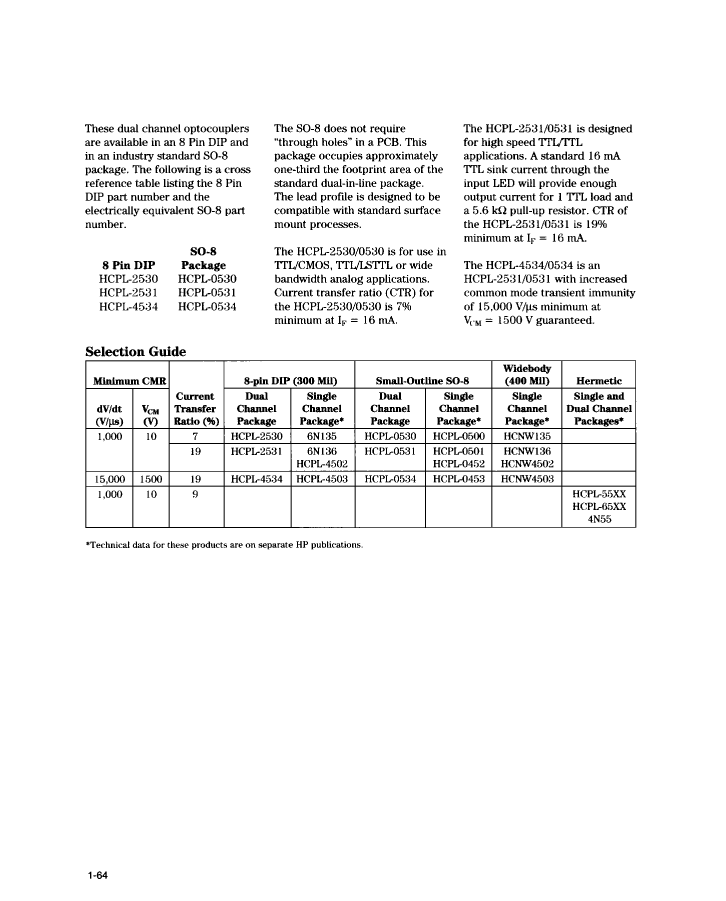

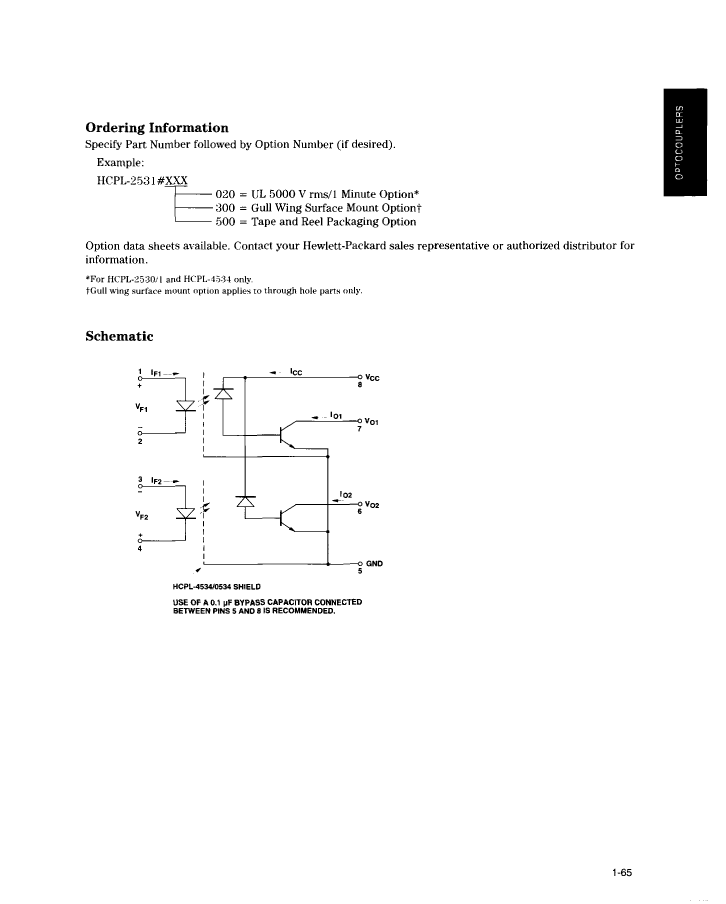

Configuration	SEPARATE, 2 CHANNELS
Nominal data rate	1 MBps
Maximum forward current	0.025 A
Maximum insulation voltage	5000 V
JESD-609 code	e0
Number of components	2
Maximum on-state current	0.008 A
Maximum operating temperature	70 °C
Minimum operating temperature
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1
