5-531021-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-531021-8

5-531021-8: DescriptionCONNECTOR, 100 CONTACT(S), STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-531021-8 Overview

CONNECTOR, 100 CONTACT(S), STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, ROHS COMPLIANT

5-531021-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1671066651
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
YTEOL	0
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0

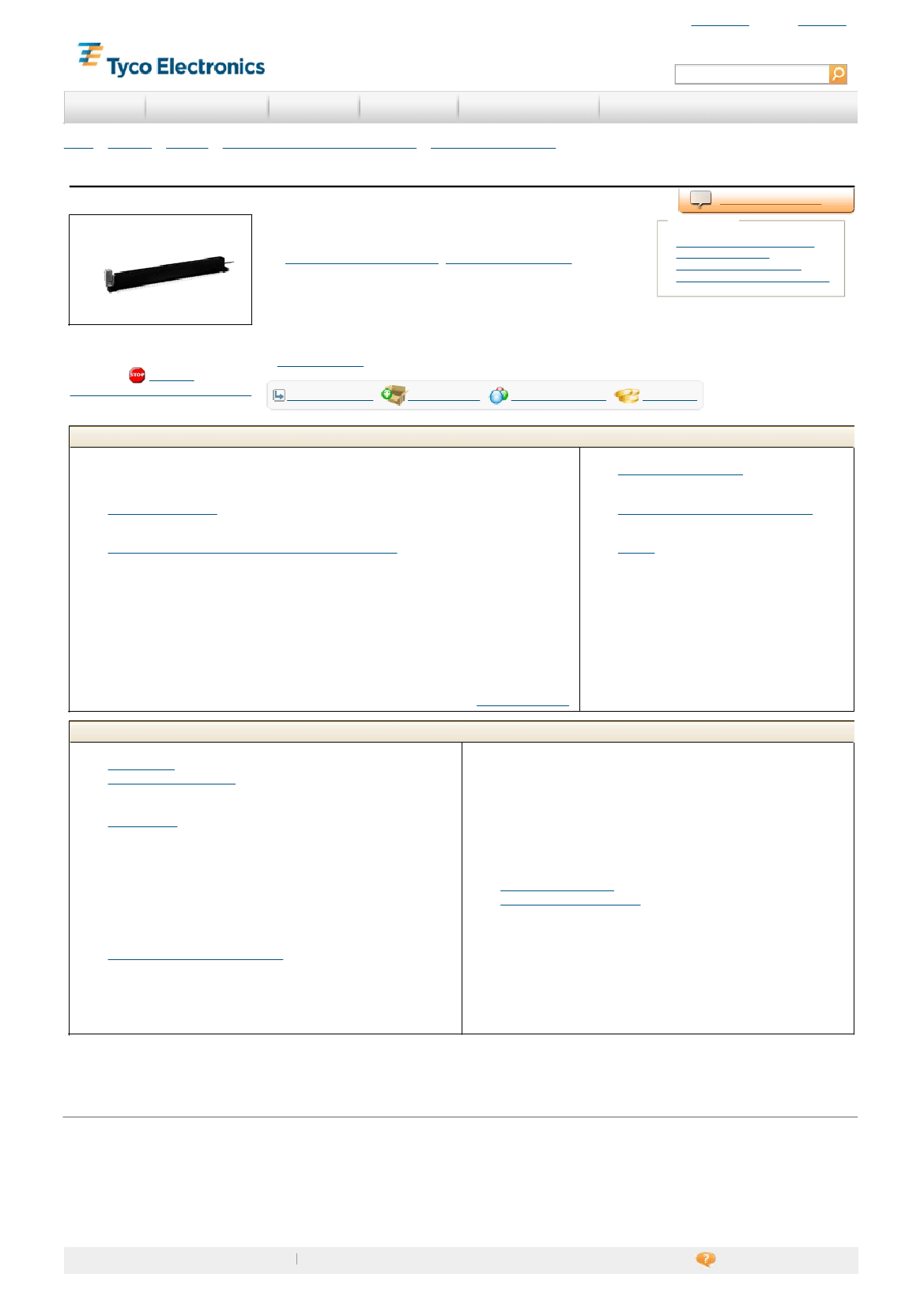

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

ZIF (Zero Insertion Force) C onnectors

Product Feature Selector

> Product Details

5-531021-8 Product Details

Live Product Chat

.100, .125, .156 Centerline Rotary Cam ZIF Connectors

and Accessories

Always EU R oHS/ELV C om plia nt

(

Sta te m e nt of C om plia nce

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

5-531021-8

T E I nternal N umber: 5 - 5 3 1 0 2 1 - 8

Product Highlights:

C onnector

50 Dual Positions

2.54 x 5.08 mm C enterline, Matrix

Vertical Mount Angle

Post Type = Solder Post

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Obsolete

C ontact Product Information C enter

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

card edge connectors

(PDF, English)

Product Specifications:

C onnector, Edge, Zero Insertion Force, Rotary C am Ac...

(PDF, English)

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type

= C onnector

Number of Dual Positions

= 50

Mount Angle = Vertical

Post Type = Solder Post

Housing Style

= Open End / Open End

UL Recognized = Yes

Qty./Tray = 50

C omment = Plated per MIL-G-45204 in contact area; per MIL-P-

81728 on post; underplated per QQ-N-290.

Mechanical Attachment:

Boardlock = With

Termination Related Features:

Termination Post Length (mm [in])

= 3.18 [0.125]

Body Related Features:

C enterline, Matrix (mm [in]) = 2.54 x 5.08 [.100 x .200]

Post Plating = Matte Tin

Contact Related Features:

C ontact Base Material = Phosphor Bronze

C ontact Plating, Mating Area, Material = Gold (30)

C ontact Underplating = Nickel (50)

Housing Related Features:

Housing Material = Polyester GF

Housing Flammability Rating = UL 94V-0

Industry Standards:

RoHS/ELV C ompliance

= RoHS compliant, ELV compliant

Lead Free Solder Processes

= Wave solder capable to 240?C

RoHS/ELV C ompliance History = Always was RoHS compliant

Other:

Brand = AMP

Additional Information:

Product Line Information

Additional Product Images:

Recommended PC Board Edge Pattern
