74LS11FCQR datasheet, PDF - EEWORLD Datasheet

74LS11FCQR: DescriptionAND Gate, TTL, CDFP14,; Categorylogic logic; File Size217KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

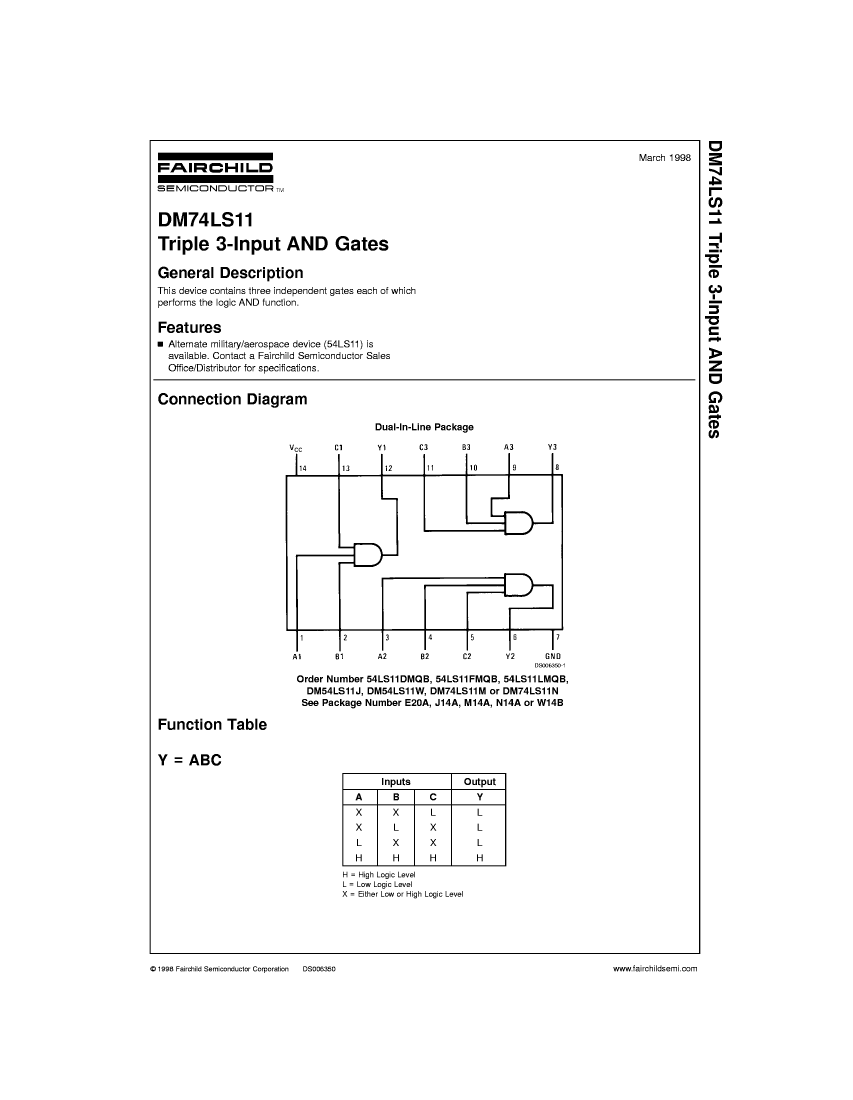

74LS11FCQR Overview

AND Gate, TTL, CDFP14,

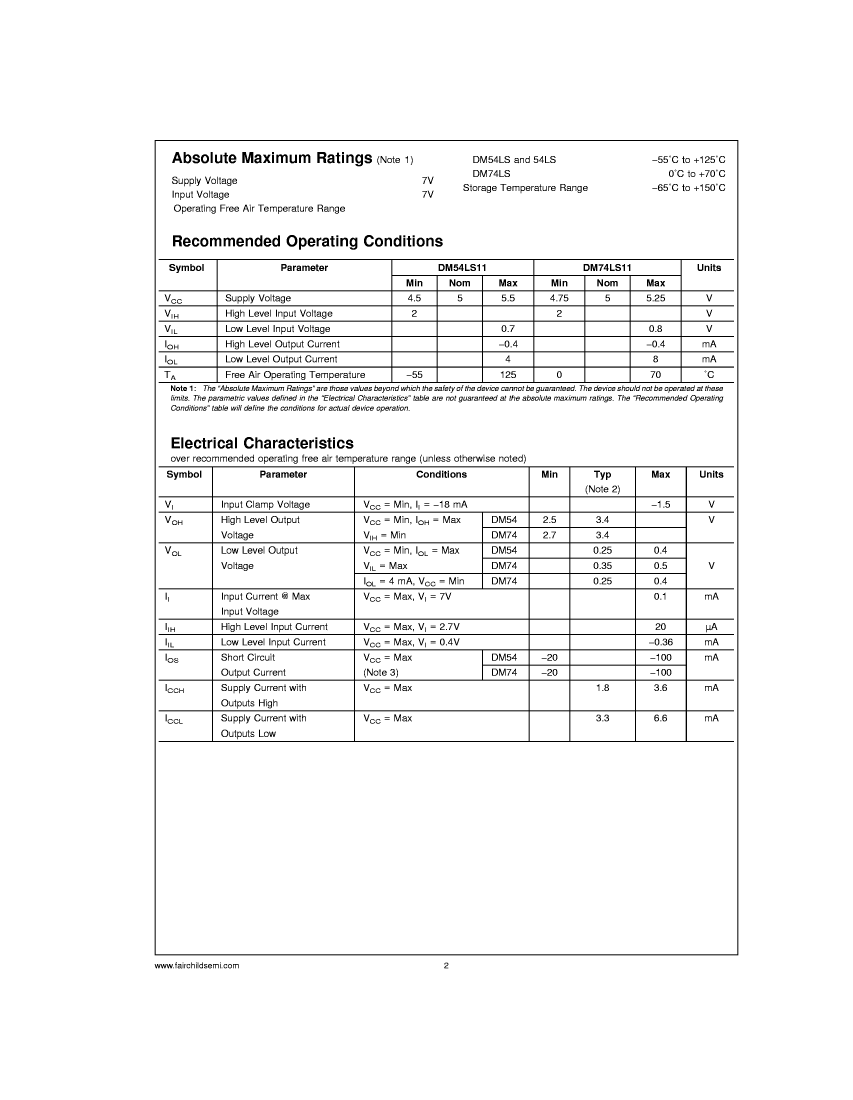

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	AND GATE
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature

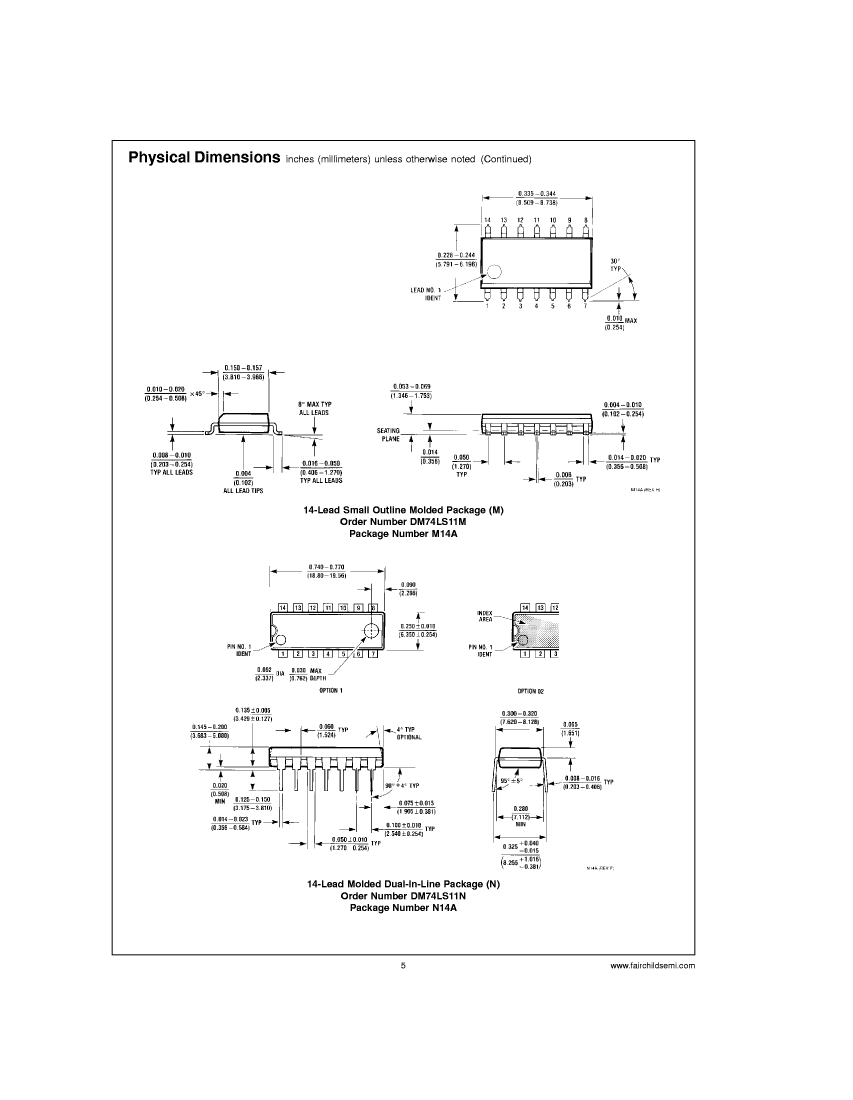

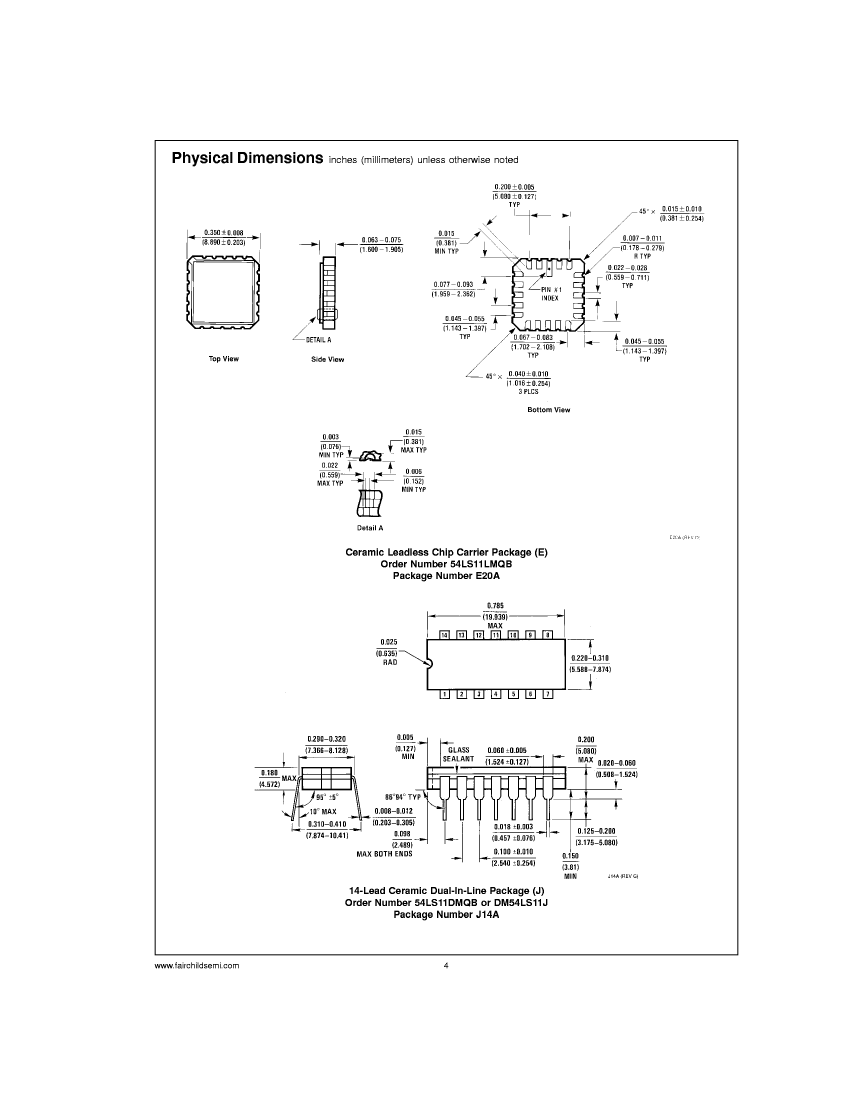

Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
