BX7275 datasheet, PDF - EEWORLD Datasheet

BX7275: Description5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size629KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX7275 Overview

5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	19 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

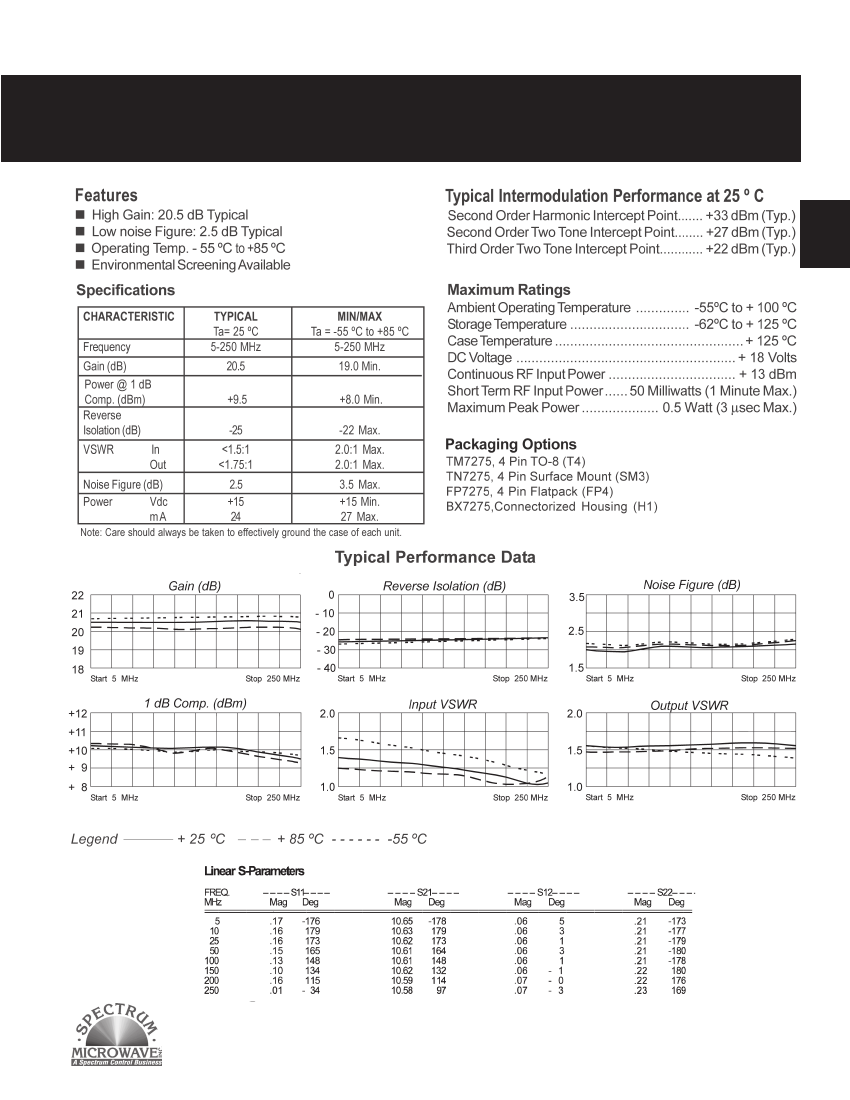

RF Amplifier

High Gain: 20.5 dB

Model TM7275

5 to 250 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

369

Amplifiers

	BX7275	FP7275	TN7275	TM7275
Description	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	19 dB	19 dB	19 dB	19 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
