5082-3040 datasheet, PDF - EEWORLD Datasheet

5082-3040: DescriptionSILICON, PIN DIODE; CategoryDiscrete semiconductor diode; File Size154KB，5 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/

Download Datasheet Parametric Compare View All

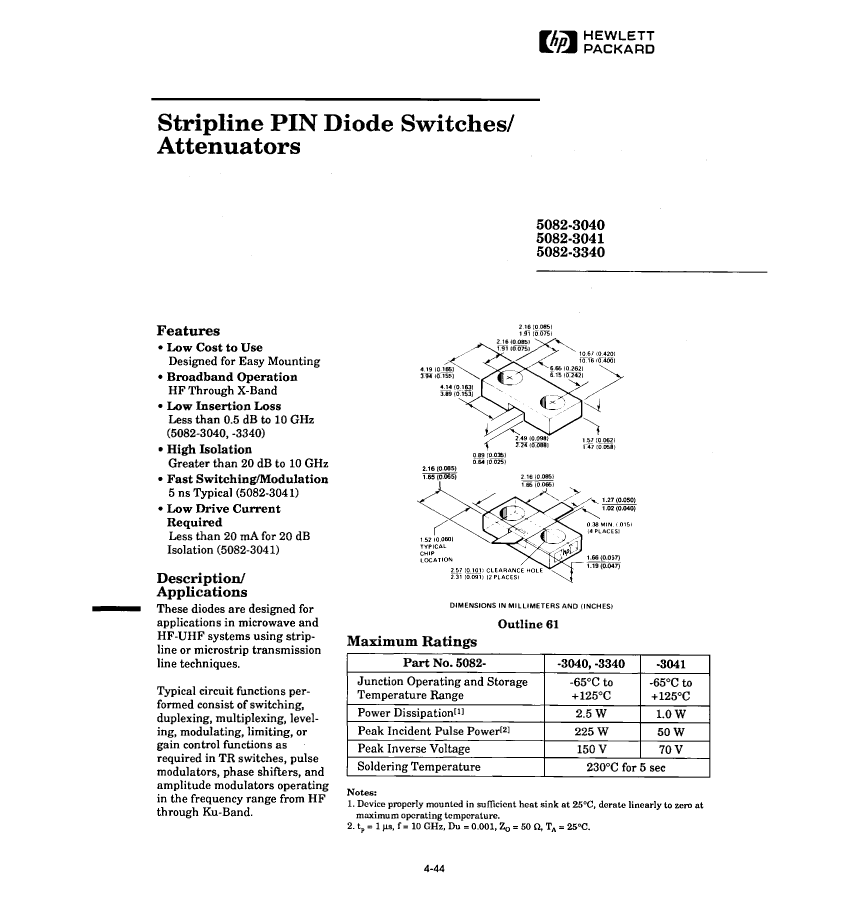

5082-3040 Overview

SILICON, PIN DIODE

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	AVAGO
package instruction	R-MDFM-F2
Reach Compliance Code	compliant
application	ATTENUATOR; SWITCHING
Shell connection	ANODE
Configuration	SINGLE
Maximum diode capacitance	0.1 pF
Diode component materials	SILICON
Maximum diode forward resistance	1 Ω
Diode type	PIN DIODE
frequency band	HIGH FREQUENCY TO KU BAND
JESD-30 code	R-MDFM-F2
Minority carrier nominal lifetime	0.4 µs
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	2.5 W
Certification status	Not Qualified
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

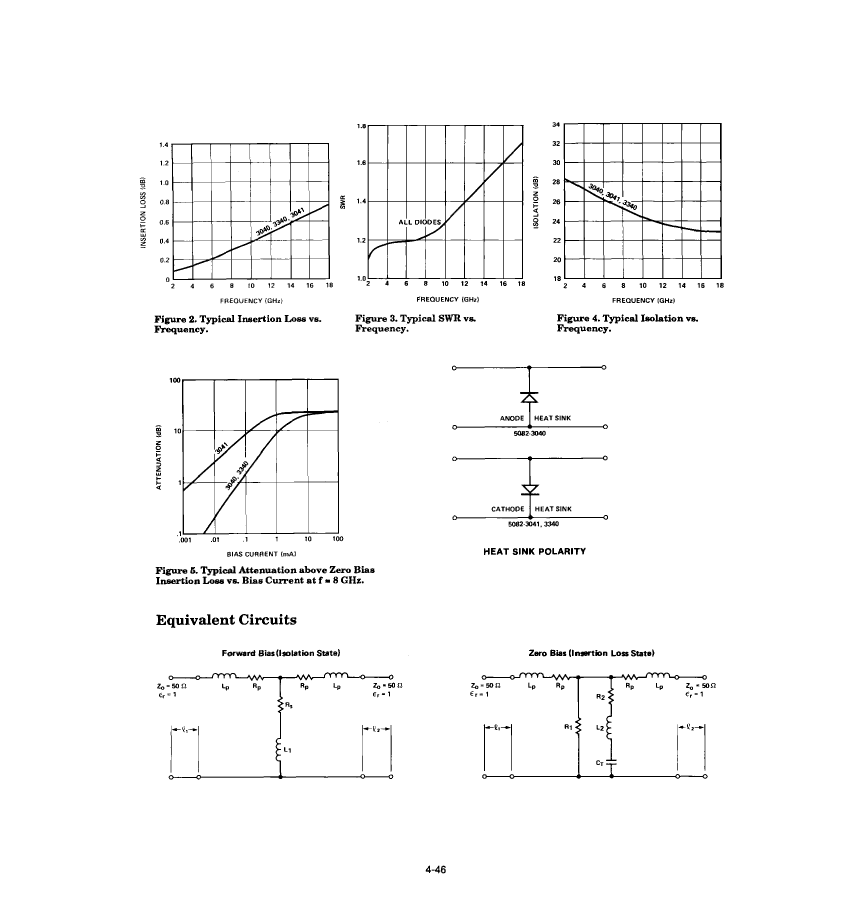

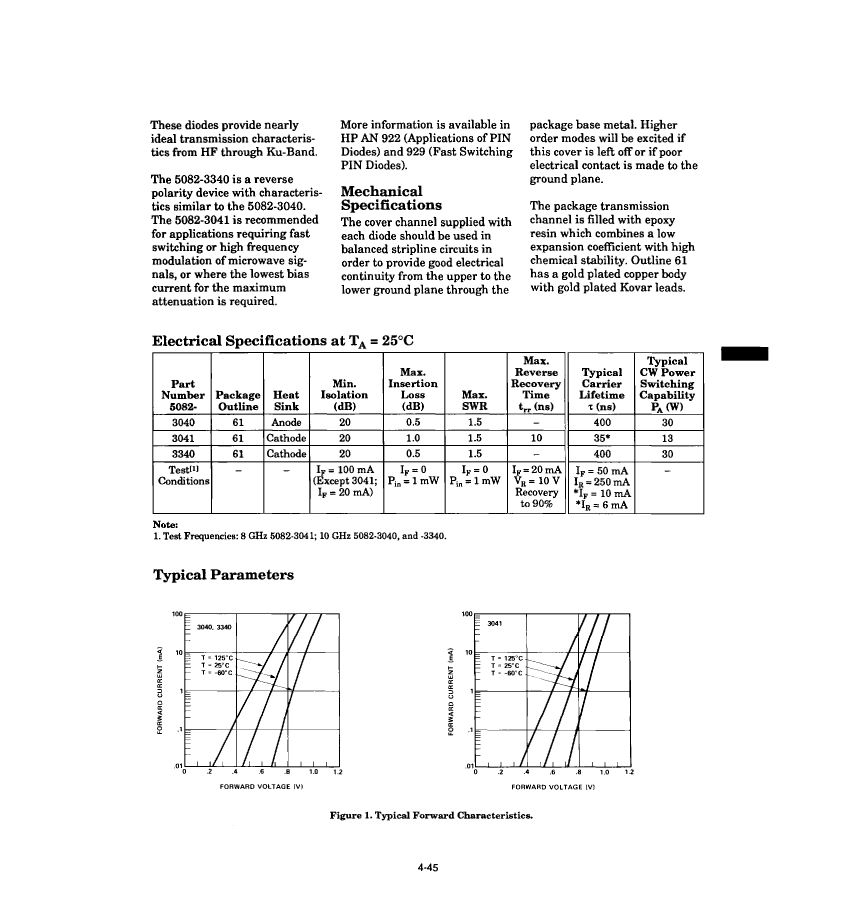

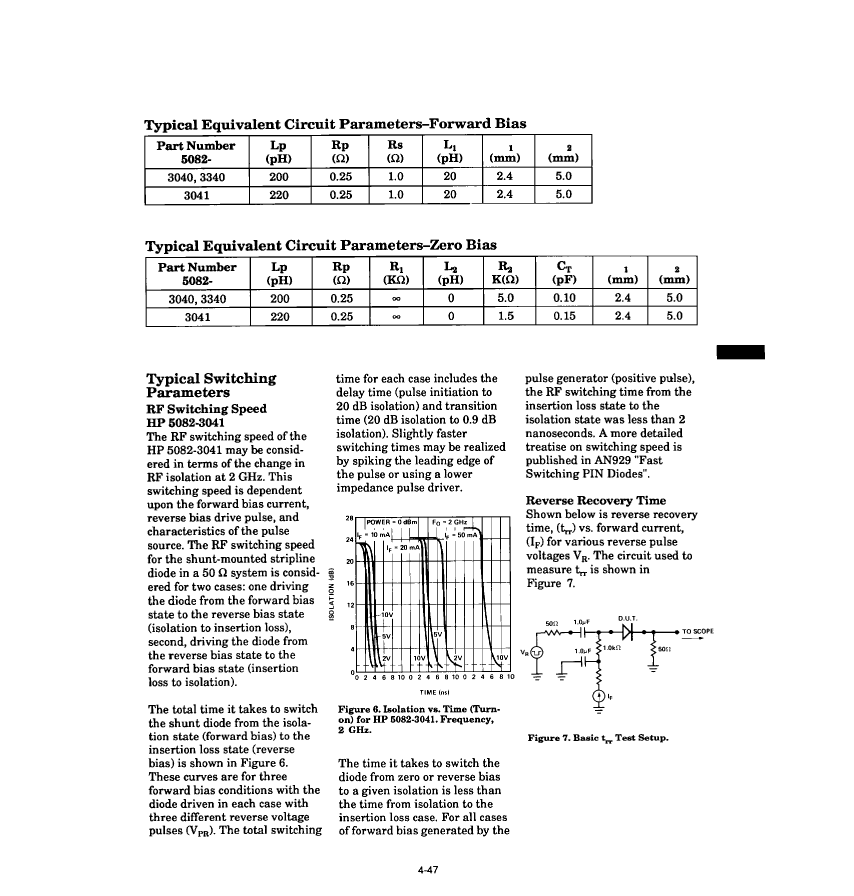

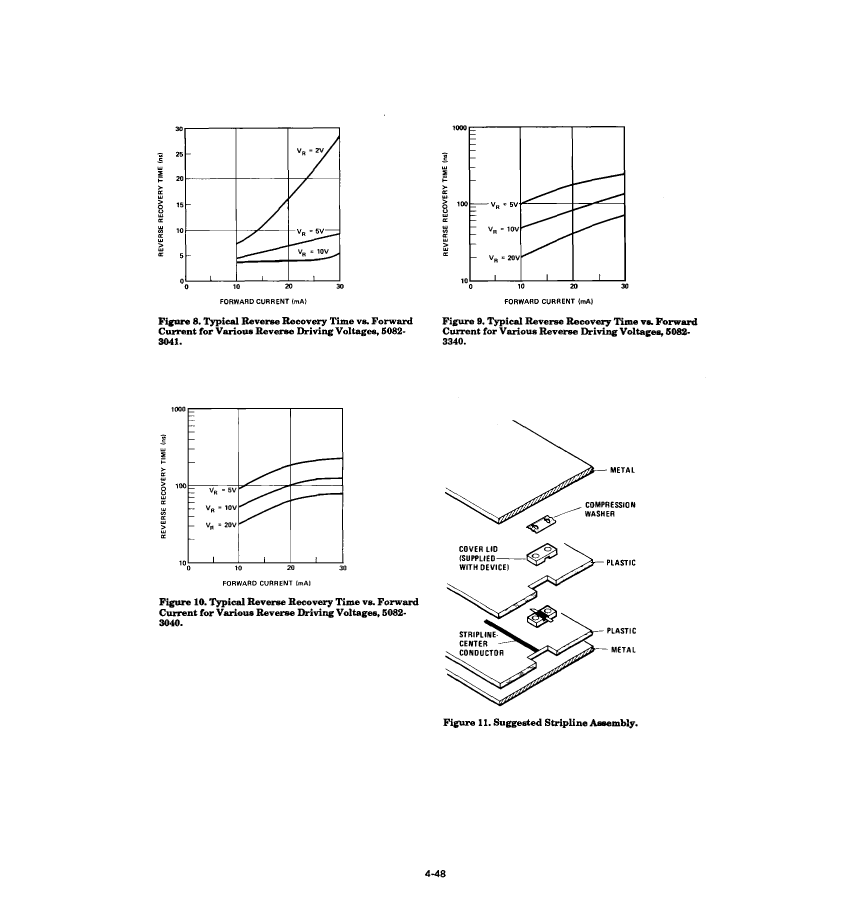

	5082-3040	5082-3041	5082-3340
Description	SILICON, PIN DIODE	SILICON, PIN DIODE	SILICON, PIN DIODE
Maker	AVAGO	AVAGO	AVAGO
package instruction	R-MDFM-F2	R-MDFM-F2	R-MDFM-F2
Reach Compliance Code	compliant	unknown	unknown
application	ATTENUATOR; SWITCHING	ATTENUATOR; SWITCHING	ATTENUATOR; SWITCHING
Shell connection	ANODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	0.1 pF	0.15 pF	0.1 pF
Diode component materials	SILICON	SILICON	SILICON
Maximum diode forward resistance	1 Ω	1 Ω	1 Ω
Diode type	PIN DIODE	PIN DIODE	PIN DIODE
frequency band	HIGH FREQUENCY TO KU BAND	HIGH FREQUENCY TO KU BAND	HIGH FREQUENCY TO KU BAND
JESD-30 code	R-MDFM-F2	R-MDFM-F2	R-MDFM-F2
Minority carrier nominal lifetime	0.4 µs	0.035 µs	0.4 µs
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Package body material	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum power dissipation	2.5 W	1 W	2.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
Is it lead-free?	Contains lead	-	Contains lead
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
