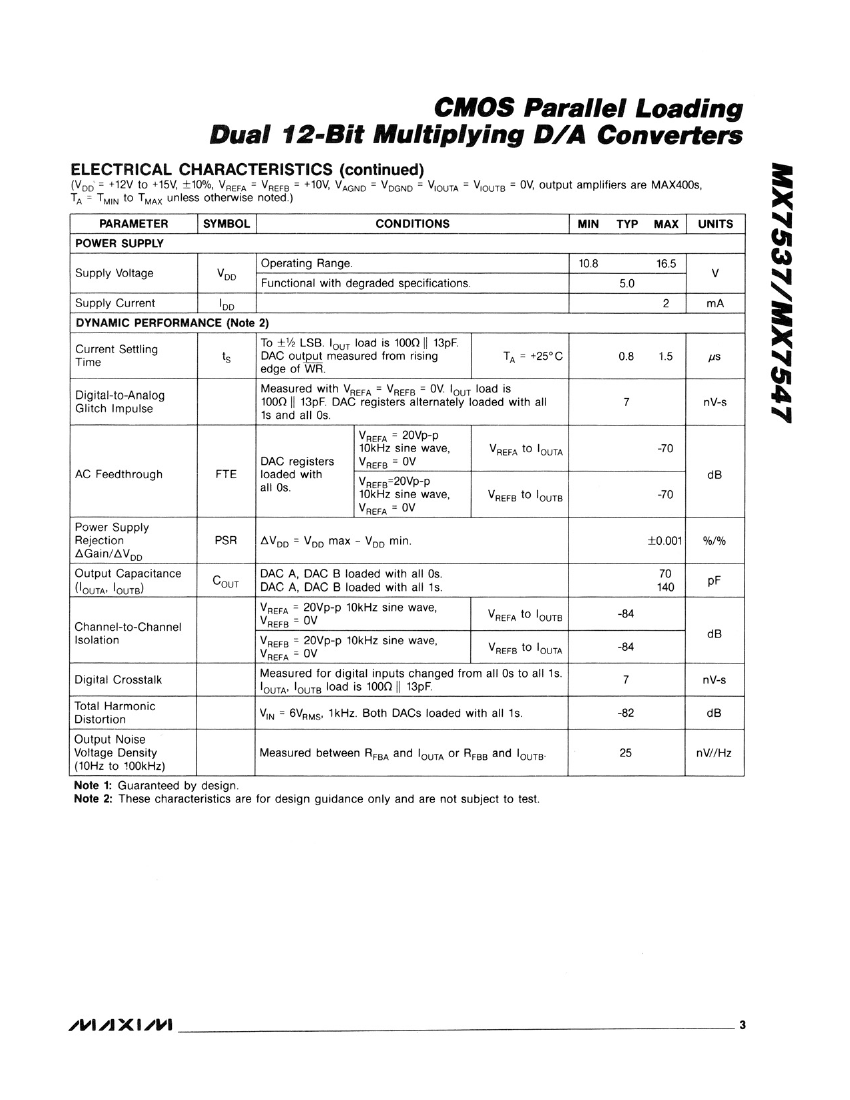

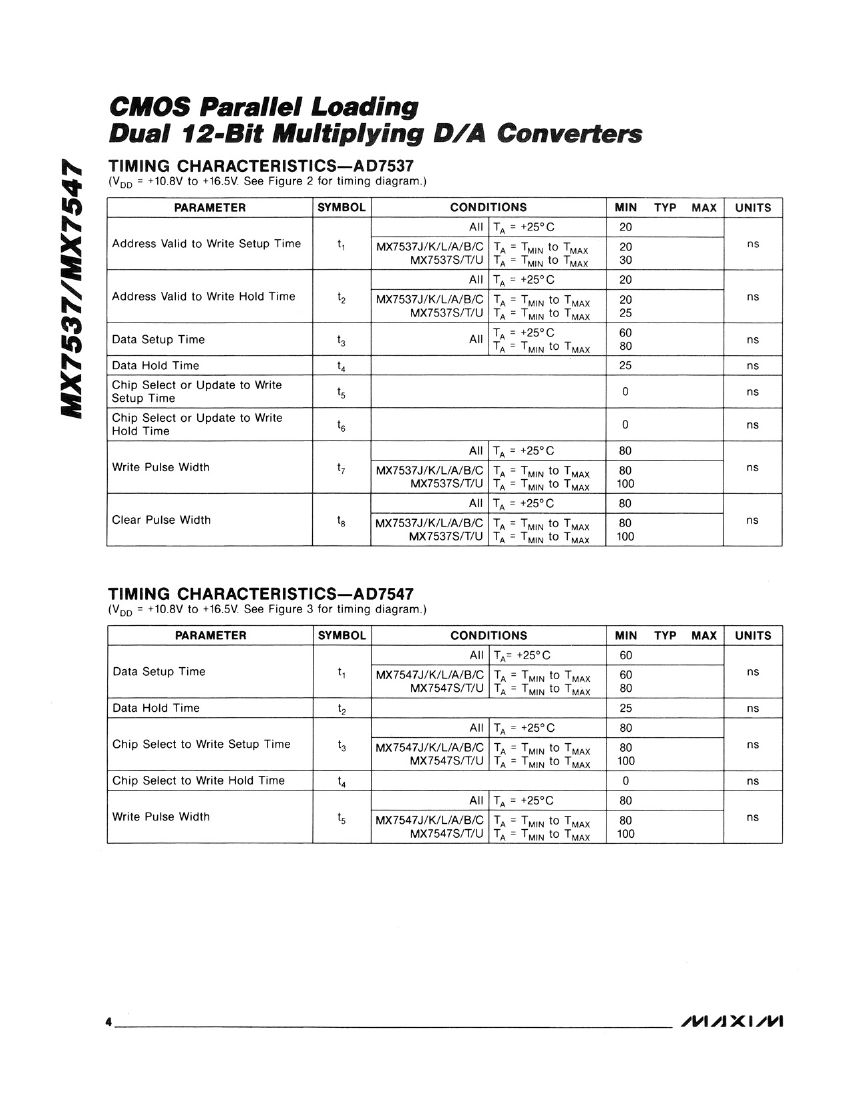

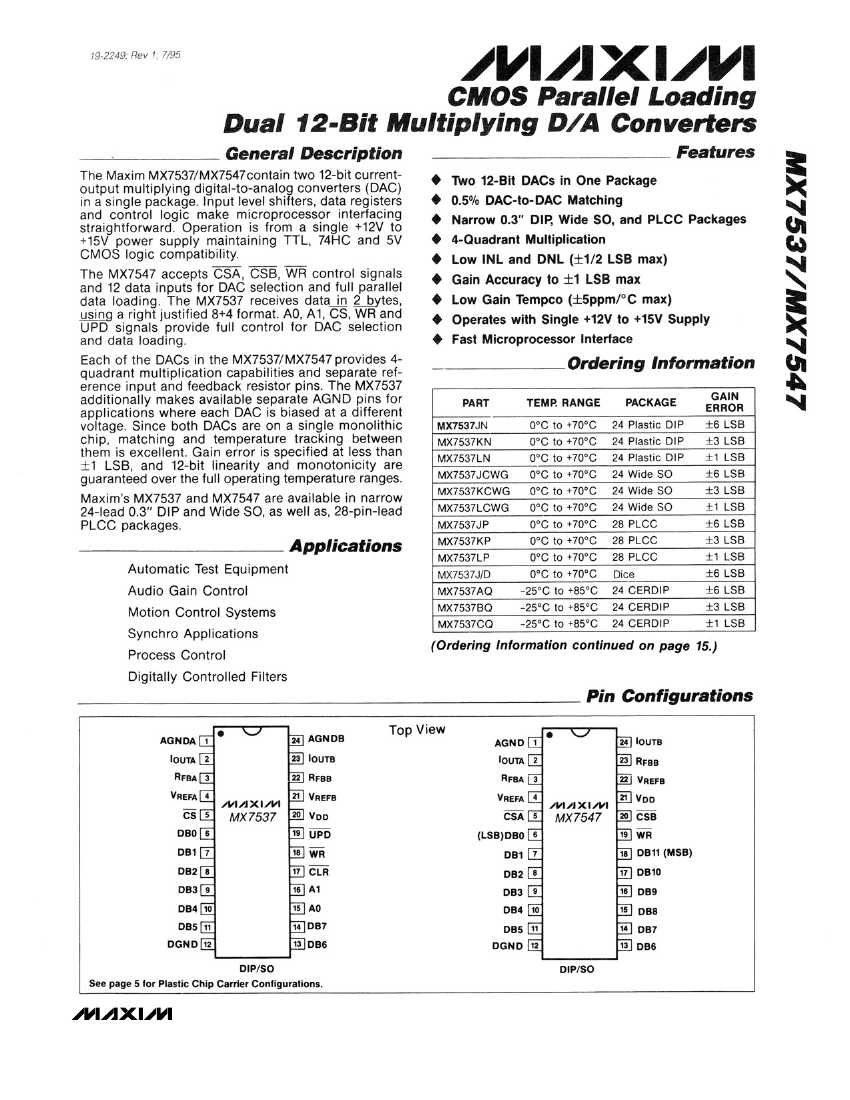

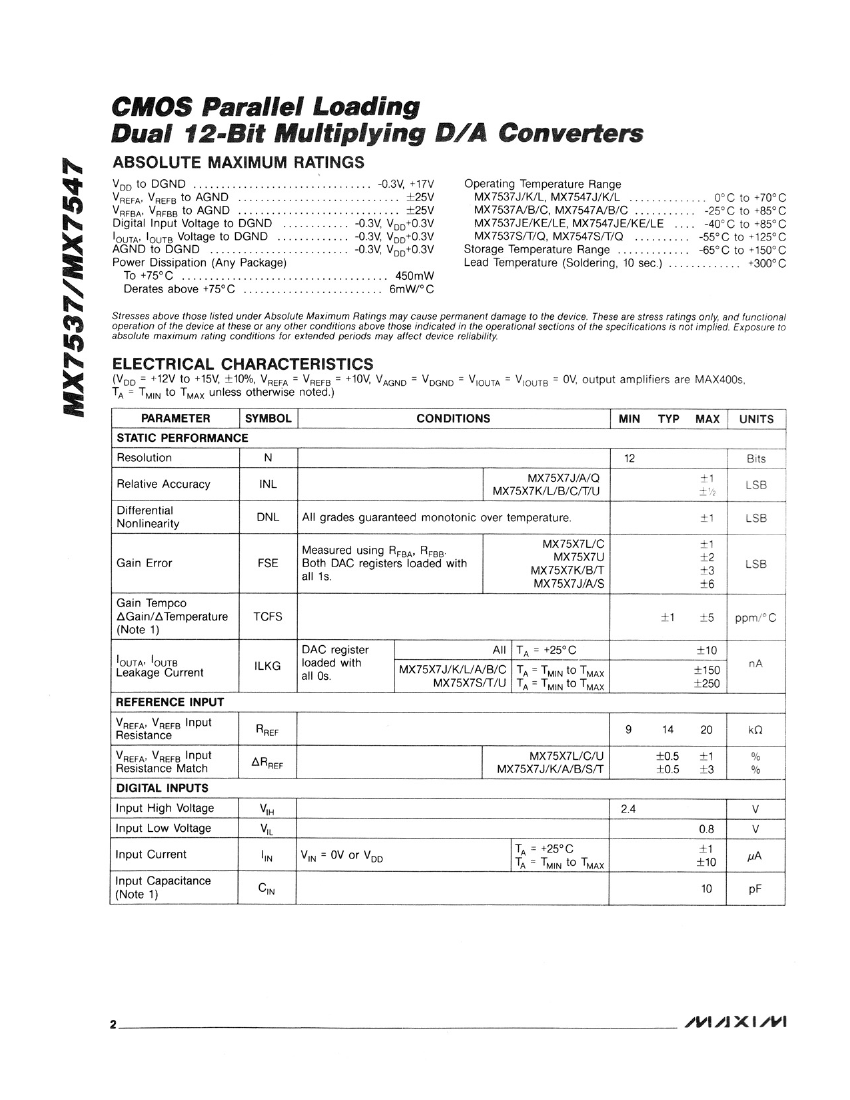

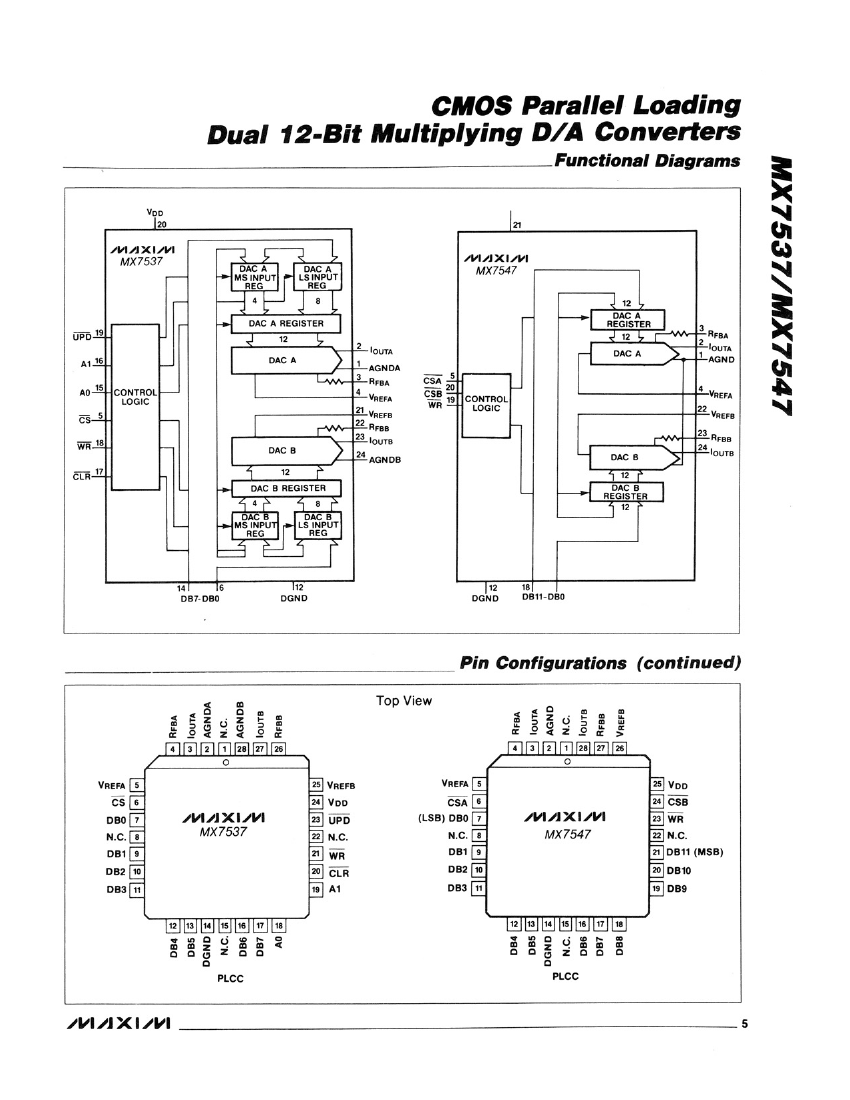

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | DIP |
| package instruction | CERAMIC, DIP-24 |
| Contacts | 24 |
| Reach Compliance Code | not_compliant |
| ECCN code | 3A001.A.2.C |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY |
| Input format | PARALLEL, WORD |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| Maximum linear error (EL) | 0.0244% |
| Humidity sensitivity level | 1 |
| Number of digits | 12 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 240 |
| power supply | 12/15 V |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum stabilization time | 1.5 µs |
| Maximum slew rate | 2 mA |
| Nominal supply voltage | 15 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 20 |
| Base Number Matches | 1 |
| 5962-8965703LA | 5962-8965701LA | 5962-8776303LA | 5962-87763023C | 5962-8776301LA | 5962-87763033C | 5962-87763013C | 5962-8965702LA | |
|---|---|---|---|---|---|---|---|---|
| Description | D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24 | D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24 | D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24 | D/A Converter, 1 Func, Parallel, Word Input Loading, CQCC28, CERAMIC, LCC-28 | D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24 | D/A Converter, 1 Func, Parallel, Word Input Loading, CQCC28, CERAMIC, LCC-28 | D/A Converter, 1 Func, Parallel, Word Input Loading, CQCC28, CERAMIC, LCC-28 | D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP | QLCC | DIP | QLCC | QLCC | DIP |
| package instruction | CERAMIC, DIP-24 | CERAMIC, DIP-24 | CERAMIC, DIP-24 | QCCN, LCC28,.45SQ | DIP, DIP24,.3 | QCCN, LCC28,.45SQ | QCCN, LCC28,.45SQ | CERAMIC, DIP-24 |
| Contacts | 24 | 24 | 24 | 28 | 24 | 28 | 28 | 24 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY |
| Input format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD |
| JESD-30 code | R-GDIP-T24 | R-GDIP-T24 | R-GDIP-T24 | R-CQCC-N28 | R-GDIP-T24 | R-CQCC-N28 | R-CQCC-N28 | R-GDIP-T24 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum linear error (EL) | 0.0244% | 0.0244% | 0.0122% | 0.0122% | 0.0122% | 0.0122% | 0.0122% | 0.0244% |
| Number of digits | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 24 | 24 | 28 | 24 | 28 | 28 | 24 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | QCCN | DIP | QCCN | QCCN | DIP |
| Encapsulate equivalent code | DIP24,.3 | DIP24,.3 | DIP24,.3 | LCC28,.45SQ | DIP24,.3 | LCC28,.45SQ | LCC28,.45SQ | DIP24,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE |
| Peak Reflow Temperature (Celsius) | 240 | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| power supply | 12/15 V | 12/15 V | 12/15 V | 12/15 V | 12/15 V | 12/15 V | 12/15 V | 12/15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Maximum stabilization time | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs |
| Maximum slew rate | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA |
| Nominal supply voltage | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | YES | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN LEAD | Tin/Lead (Sn/Pb) | TIN LEAD | TIN LEAD | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | NO LEAD | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | QUAD | DUAL | QUAD | QUAD | DUAL |
| Maximum time at peak reflow temperature | 20 | 20 | 20 | NOT SPECIFIED | 20 | NOT SPECIFIED | NOT SPECIFIED | 20 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | Maxim | Maxim | - | - | Maxim | Maxim | Maxim | Maxim |
| Humidity sensitivity level | 1 | 1 | 1 | - | 1 | - | - | 1 |
