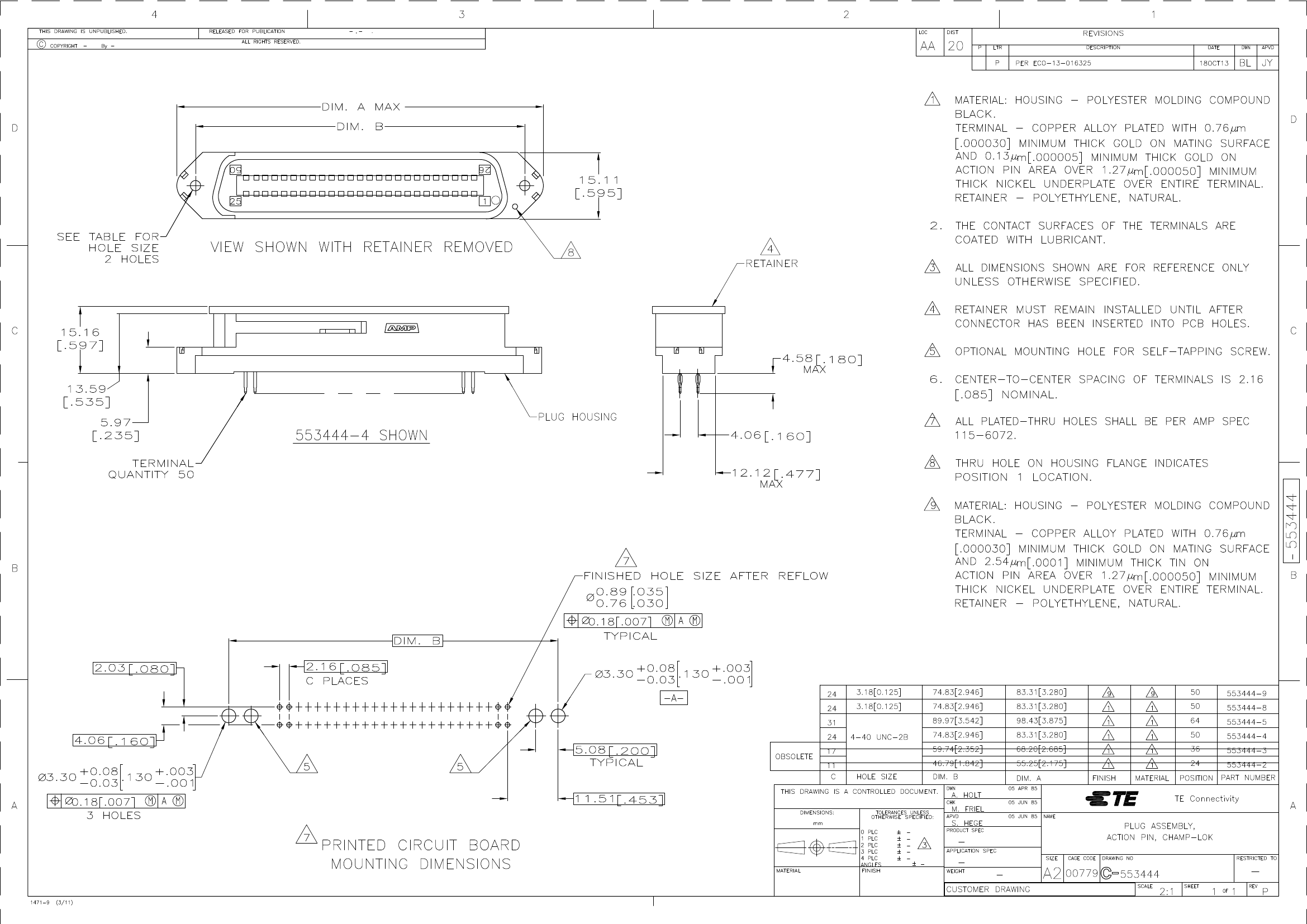

553444-2 |
553444-3 |
| Description |
24 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, PRESS FIT, PLUG |
36 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, PRESS FIT, PLUG |
| Is it Rohs certified? |
conform to |
conform to |
| Maker |
TE Connectivity |
TE Connectivity |
| Reach Compliance Code |
compliant |
compliant |
| ECCN code |
EAR99 |
EAR99 |
| Other features |
ACTION PIN; CHAMP-LOK |
ACTION PIN; CHAMP-LOK |
| body width |
0.595 inch |
0.595 inch |
| subject depth |
0.235 inch |
0.235 inch |
| body length |
2.175 inch |
2.685 inch |
| Body/casing type |
PLUG |
PLUG |
| Connector type |
TELECOM AND DATACOM CONNECTOR |
TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact point gender |
MALE |
MALE |
| Contact material |
COPPER ALLOY |
COPPER ALLOY |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
6.5 mΩ |
6.5 mΩ |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
1000VAC V |
1000VAC V |
| empty shell |
NO |
NO |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| Insulation resistance |
20000000000 Ω |
20000000000 Ω |
| Insulator color |
BLACK |
BLACK |
| insulator material |
POLYESTER |
POLYESTER |
| MIL compliance |
NO |
NO |
| Manufacturer's serial number |
553444 |
553444 |
| Plug contact pitch |
0.085 inch |
0.085 inch |
| Match contact row spacing |
0.16 inch |
0.16 inch |
| Plug information |
553443-2 |
553443-3 |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
#4-40 |
#4-40 |
| Installation option 2 |
SCREW |
SCREW |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD AND PANEL |
BOARD AND PANEL |
| PCB row number |
2 |
2 |
| Number of rows loaded |
2 |
2 |
| Maximum operating temperature |
105 °C |
105 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
4.064 mm |
4.064 mm |
| Plating thickness |
30u inch |
30u inch |
| Rated current (signal) |
3 A |
3 A |
| Guideline |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Shell material |
POLYESTER |
POLYESTER |
| Terminal length |
0.18 inch |
0.18 inch |
| Terminal pitch |
2.159 mm |
2.159 mm |
| Termination type |
PRESS FIT |
PRESS FIT |
| Total number of contacts |
24 |
36 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Base Number Matches |
1 |
1 |
