54F827SDM datasheet, PDF - EEWORLD Datasheet

54F827SDM: DescriptionBus Driver, 1-Func, 10-Bit, True Output, TTL, CDIP24,; Categorylogic logic; File Size314KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

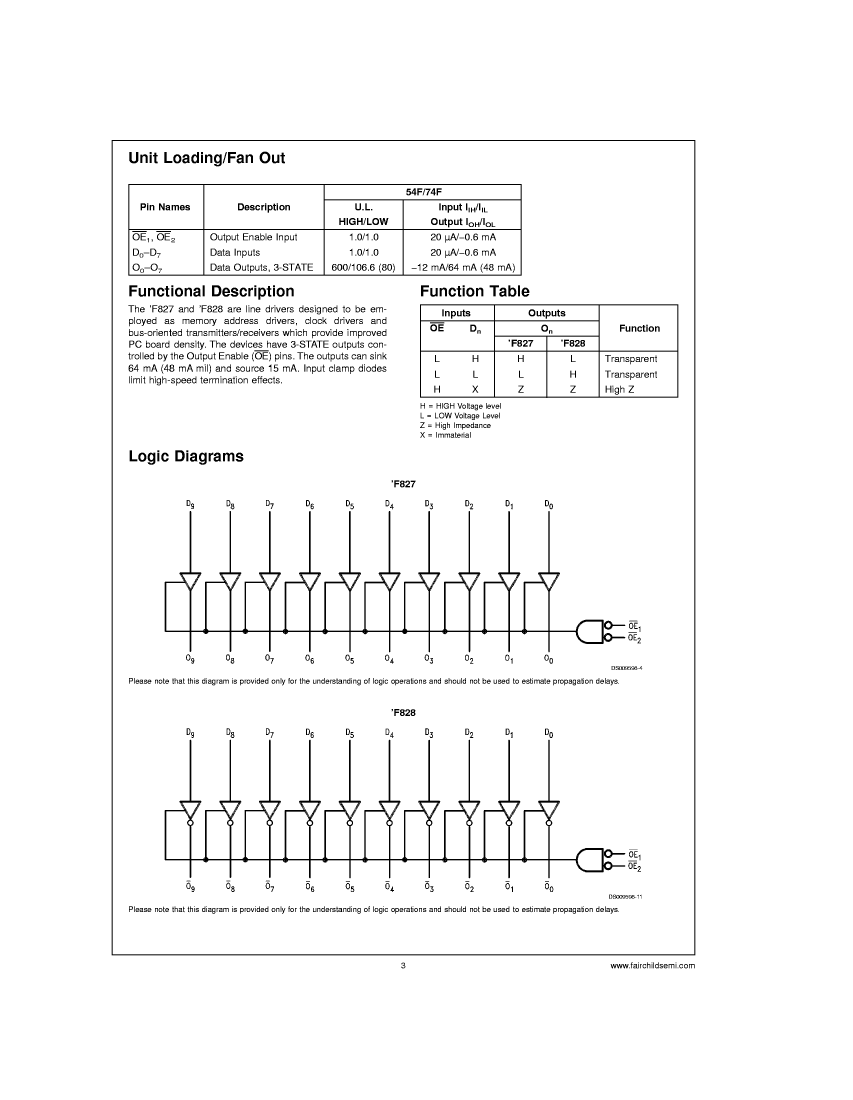

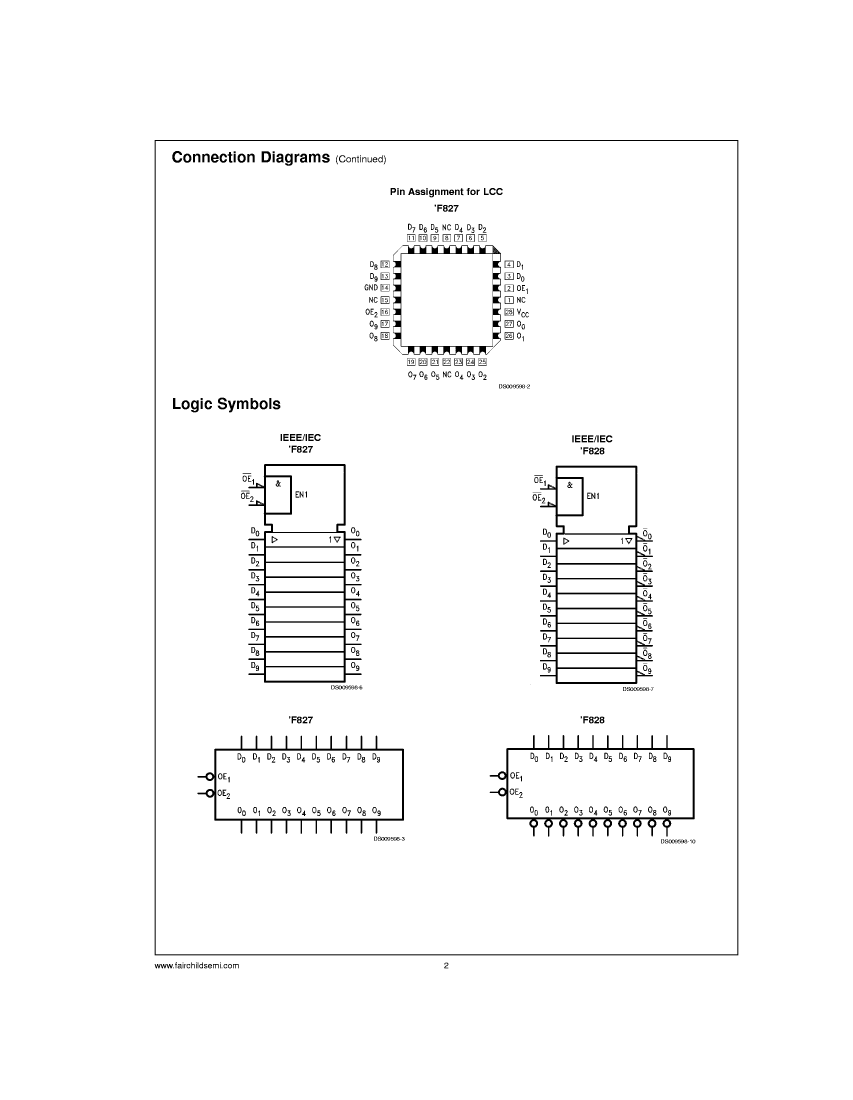

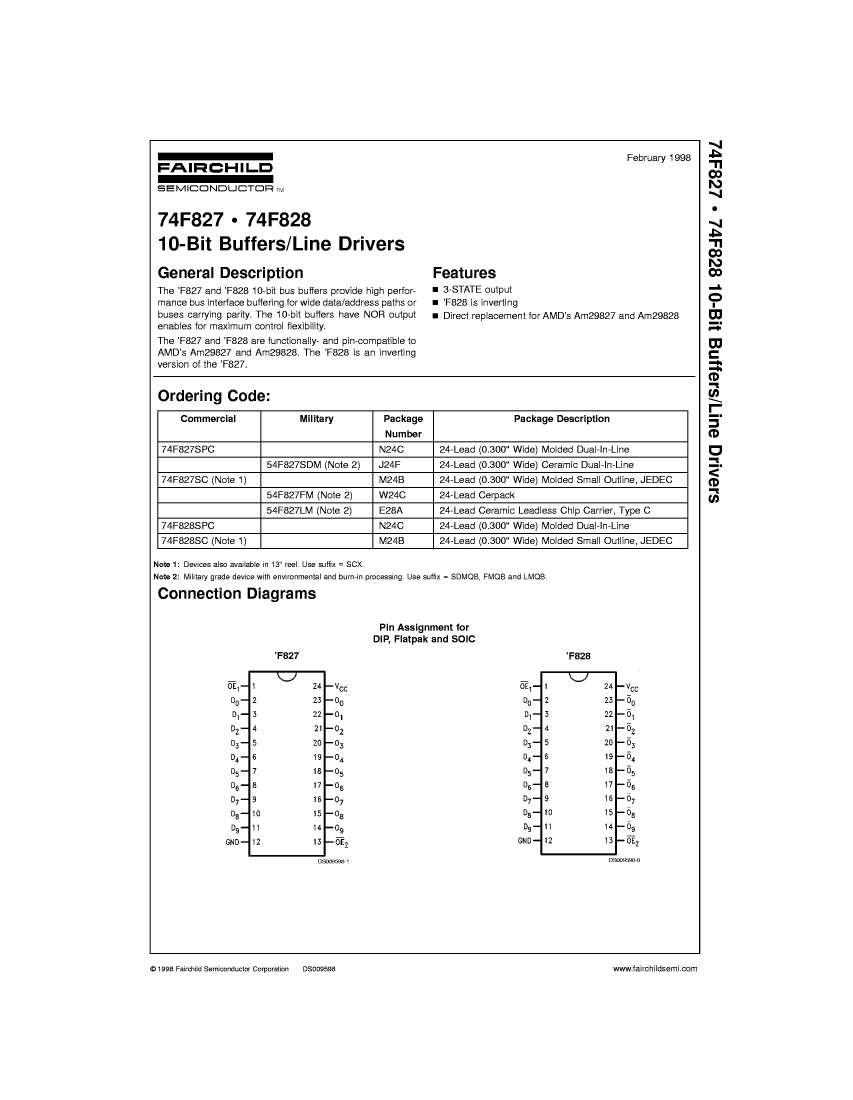

54F827SDM Overview

Bus Driver, 1-Func, 10-Bit, True Output, TTL, CDIP24,

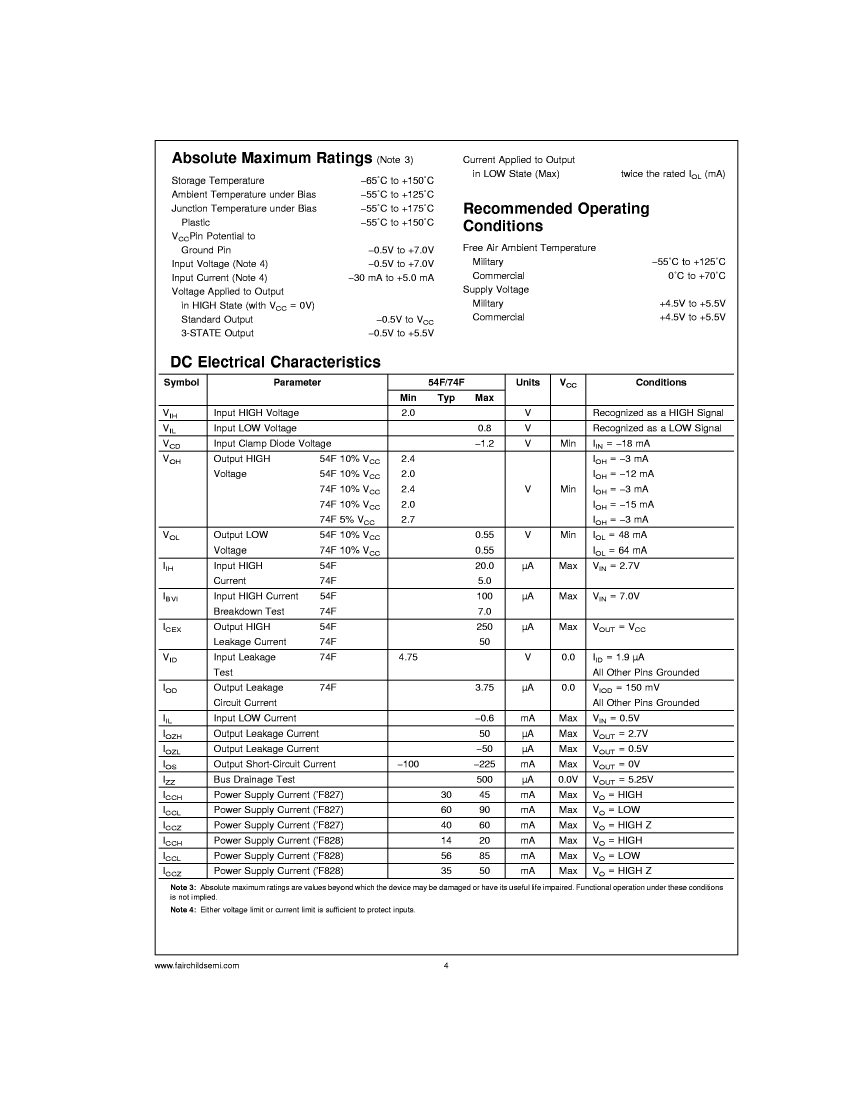

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	10
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	90 mA
Prop。Delay @ Nom-Sup	7.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	54F827SDM	54F827FM
Description	Bus Driver, 1-Func, 10-Bit, True Output, TTL, CDIP24,	Bus Driver, 1-Func, 10-Bit, True Output, TTL, CDFP24,
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
package instruction	DIP, DIP24,.3	DFP, FL24,.4
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDIP-T24	R-XDFP-F24
JESD-609 code	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A
Number of digits	10	10
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP24,.3	FL24,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	5 V	5 V
Maximum supply current (ICC)	90 mA	90 mA
Prop。Delay @ Nom-Sup	7.5 ns	7.5 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
