BMB-2B-2000A-N1 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> BMB-2B-2000A-N1

BMB-2B-2000A-N1: Description1 FUNCTIONS, 0.1A, FERRITE CHIP, EIA STD PACKAGE SIZE 1206; CategoryAnalog mixed-signal IC filter; File Size266KB，8 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

BMB-2B-2000A-N1 Overview

1 FUNCTIONS, 0.1A, FERRITE CHIP, EIA STD PACKAGE SIZE 1206

BMB-2B-2000A-N1 Parametric

Parameter Name	Attribute value
Objectid	1925985729
package instruction	EIA STD PACKAGE SIZE 1206
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.8
Maximum DC resistance	2.1 Ω
filter type	FERRITE CHIP
high	1.6 mm
length	3.2 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output impedance	2000 OHM Ω
Rated current	0.1 A
width	1.6 mm

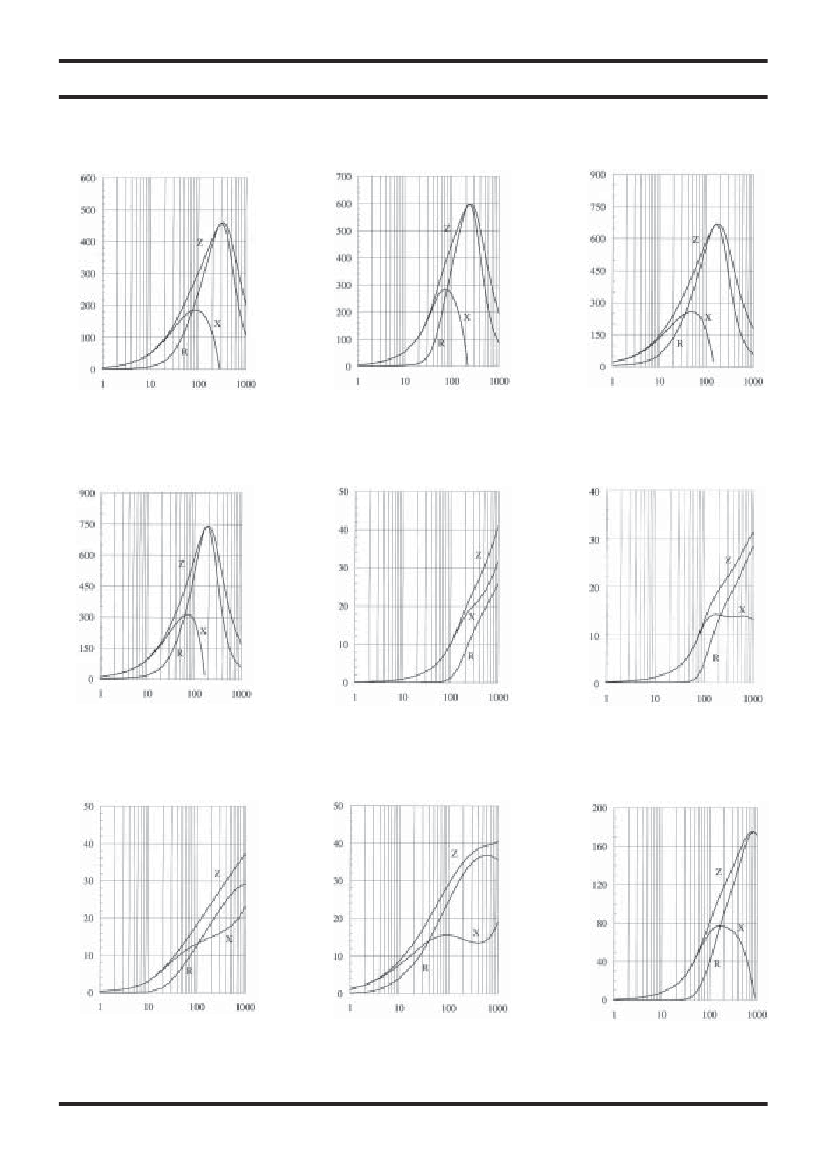

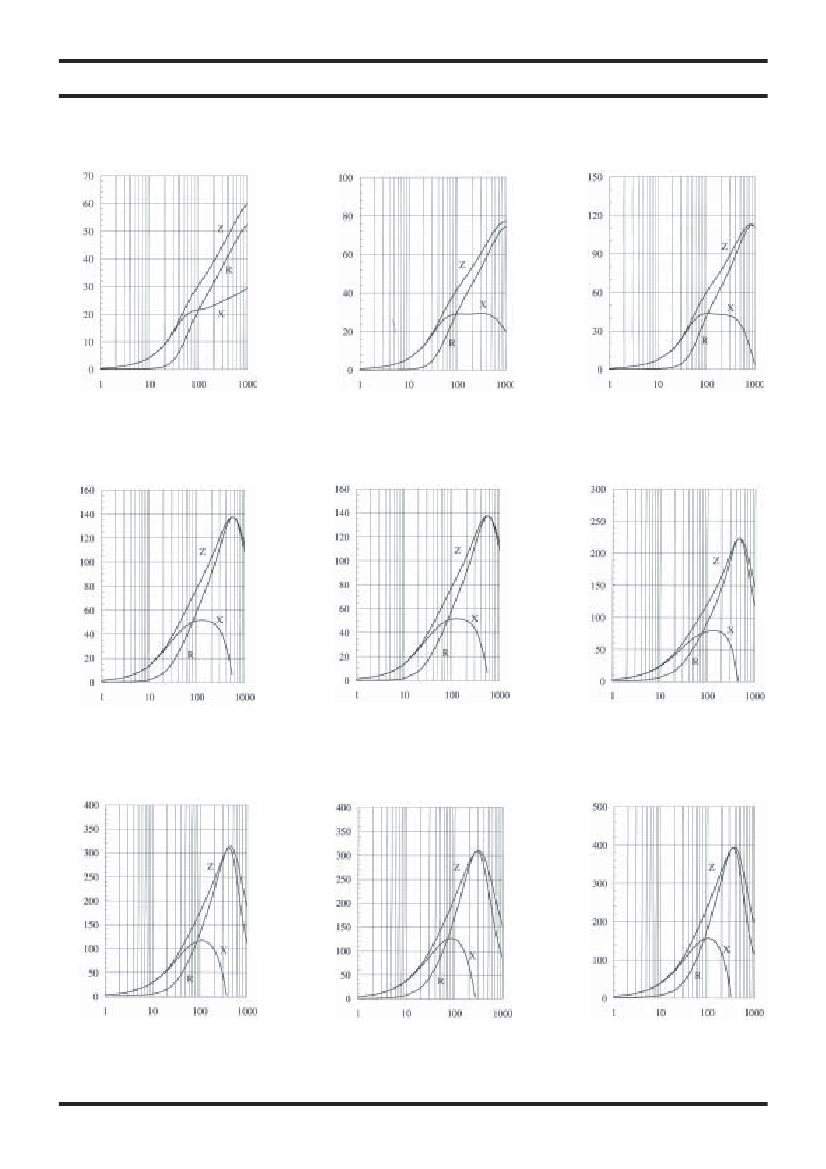

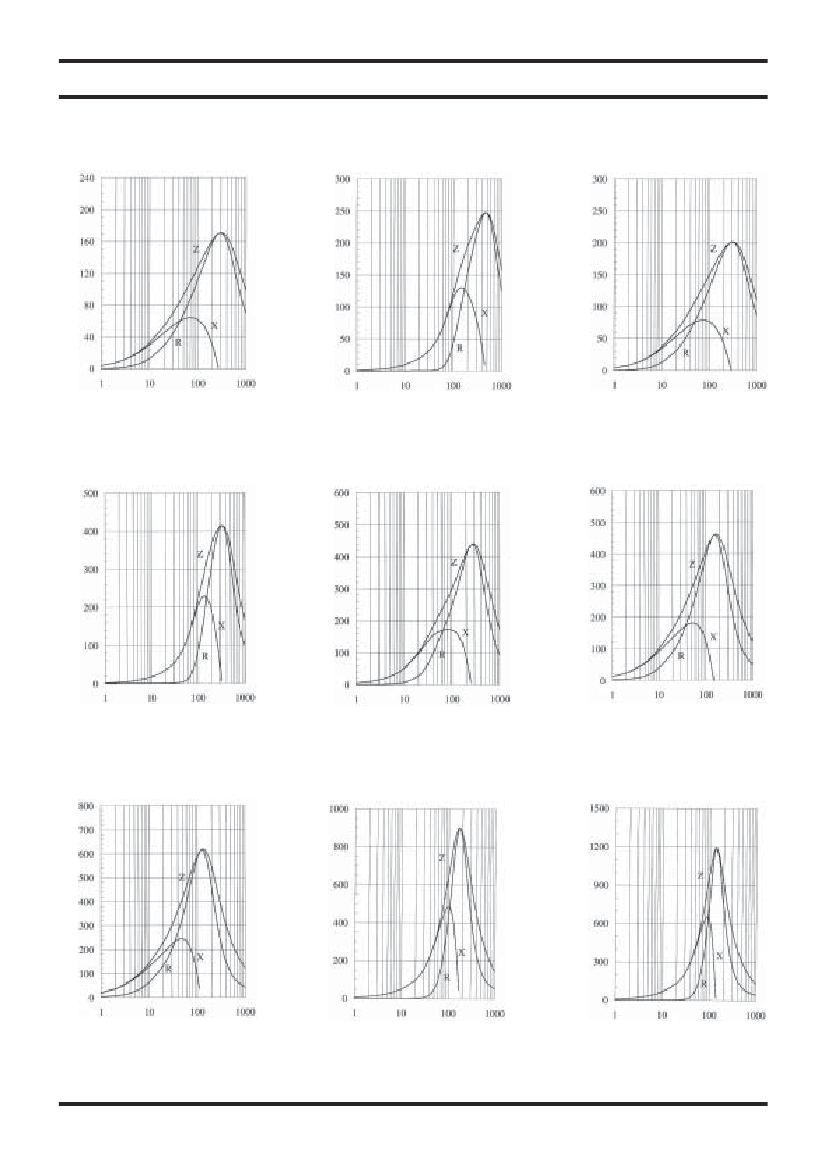

Preview

Download Datasheet

View All

MEGGITT SIGMA

AXIAL INDUCTORS

SMD INDUCTORS

THIN FILM PRINTED INDUCTORS

POWER CHOKES IN

RADIAL AND AXIAL STYLE

Mulitlayer Ferrite Beads

TYPE BMB-A SERIES

The BMB A Series of beads cover a wide range of

impedance characteristics. The chip beads have a

monolithic organic material construction that minimises

the effect of electromagnetic interference. These are high

loss types for general use. This series is offered in 06:03,

08:05, 12:06, 12:10, 18:06 and 18:12 package sizes.

MEGGITT SIGMA

KEY FEATURES

EFFECTIVE EMI PROTECTION

WIDE FRQUENCY CHARACTERISTICS

HIGH SOLDERING HEAT RESISTANCE

VARIOUS PACKAGE SIZES AVAILABLE

SUITED TO A VARIETY OF APPLICATIONS

MEGGITT ELECTRONIC

COMPONENTS LTD

SALES ACTION DESK

TEL: (01793 611666)

FAX: (01793 611777)

EMAIL: sales@megelec.co.uk

WEB SITE: www.meggittelectronics.com

LOG No FO750

ISSUE 1

8 Pages

10-01

BMB-2B-2000A-N1 Related Products

	BMB-2B-2000A-N1	BMB-2A-0011A-N2
Description	1 FUNCTIONS, 0.1A, FERRITE CHIP, EIA STD PACKAGE SIZE 1206	1 FUNCTIONS, 0.6A, FERRITE CHIP, EIA STD PACKAGE SIZE 0805
package instruction	EIA STD PACKAGE SIZE 1206	EIA STD PACKAGE SIZE 0805
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum DC resistance	2.1 Ω	0.1 Ω
filter type	FERRITE CHIP	FERRITE CHIP
high	1.6 mm	0.9 mm
length	3.2 mm	2 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Output impedance	2000 OHM Ω	11 OHM Ω
Rated current	0.1 A	0.6 A
width	1.6 mm	1.2 mm
