Kingbright
Features
!
1.6mmx0.8mm
!
LOW
®
1.6x0.8mm SUPER THIN SMD CHIP LED LAMPS
KPH-1608 SERIES
SMT LED, 0.65mm THICKNESS.
POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
!
WIDE
!
IDEAL
Package Dimensions
!
VARIOUS
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange Light
Emitting Diode.
The Super Bright Green source color devices are made with
Gallium Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium Arsenide
Phosphide on Gallium Phosphide Yellow Light Emitting Diode.
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.004")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subjected to change without notice.
Selection Guide
Iv (m c d )
@ 20 m A
Min .
KPH-1608HD
KPH-1608HC
KPH-1608ID
KPH-1608EC
KPH-1608SGD
KPH-1608SGC
KPH-1608SGW
KPH-1608YD
KPH-1608YC
KPH-1608SRD-PRV
KPH-1608SRC-PRV
BRIGHT RED (GaP)
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
SUPER BRIGHT GREEN (GaP)
SUPER BRIGHT GREEN (GaP)
SUPER BRIGHT GREEN (GaP)
YELLOW (GaAsP/GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
WATER CLEAR
RED DIFFUSED
WATER CLEAR
GREEN DIFFUSESD
WATER CLEAR
WHITE DIFFUSED
YELLOW DIFFUSED
WATER CLEAR
RED DIFFUSED
WATER CLEAR
0.8
0.8
5
5
3
3
3
3
3
40
40
Ty p .
1.2
1.2
12
12
12
12
12
8
8
70
70
V i ew i n g
An g l e
2θ1/2
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
P ar t N o .
Dic e
L en s Ty p e
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 20mA.
KPH-1608-1
Kingbright
Sy m b o l
®
Electrical / Optical Characteristics at T
A
=25°C
°
P ar am et er
D ev i c e
Bright Red
High Efficiency Red
Super Bright Green
Yellow
Super Bright Red
Ty p .
700
625
565
590
660
45
45
30
35
20
40
12
45
10
95
2.0
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
2.5
10
Max .
Un its
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Spectral Line Halfwidth Super Bright Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Super Bright Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Super Bright Green
Yellow
Super Bright Red
All
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
V R = 5V
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
B r i g h t R ed
120
25
150
5
Hig h
E f f i c i en c y
R ed
105
30
150
5
S u p er B r i g h t
Gr een
105
25
150
5
Yello w
105
30
150
5
S u p er B r i g h t
R ed
100
30
150
5
Un its
mW
mA
mA
V
-40
°
C To +85
°C
KPH-1608-2
Kingbright
®

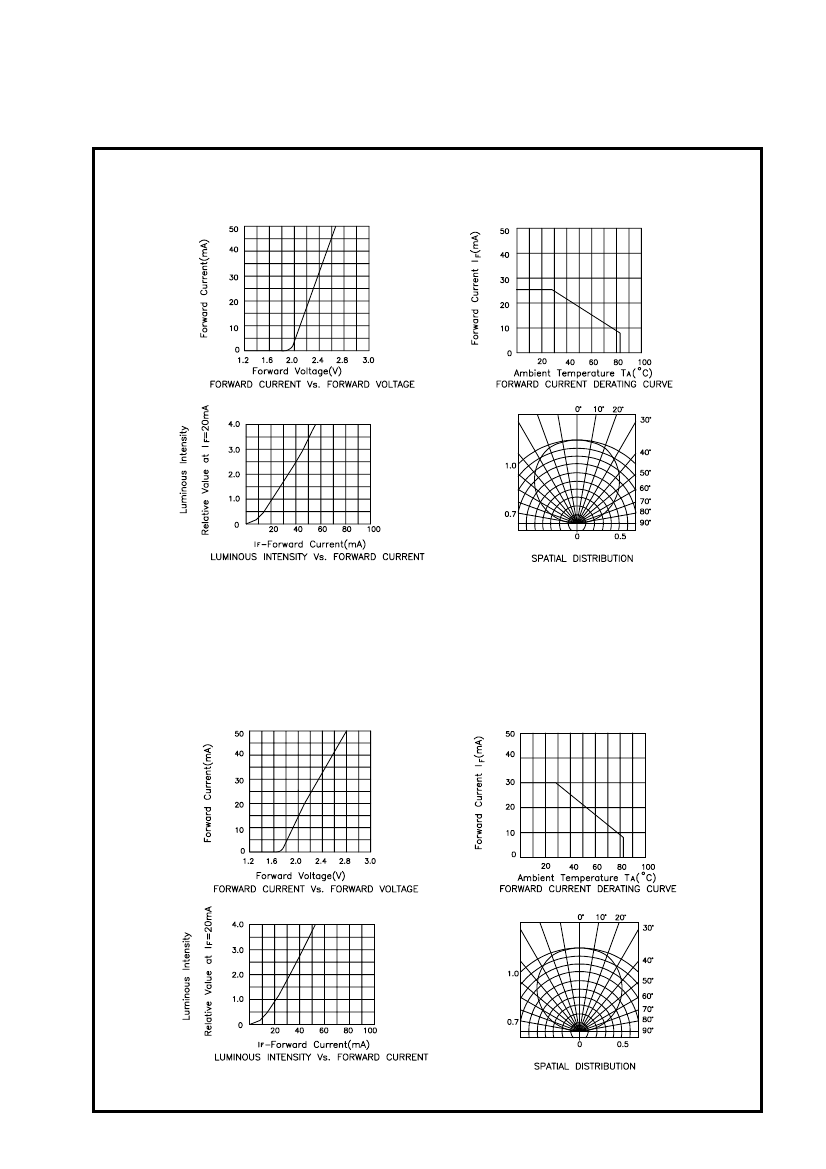

Super Bright Green KPH-1608SGD,KPH-1608SGC,KPH-1608SGW
Yellow KPH-1608YD,KPH-1608YC
KPH-1608-4
