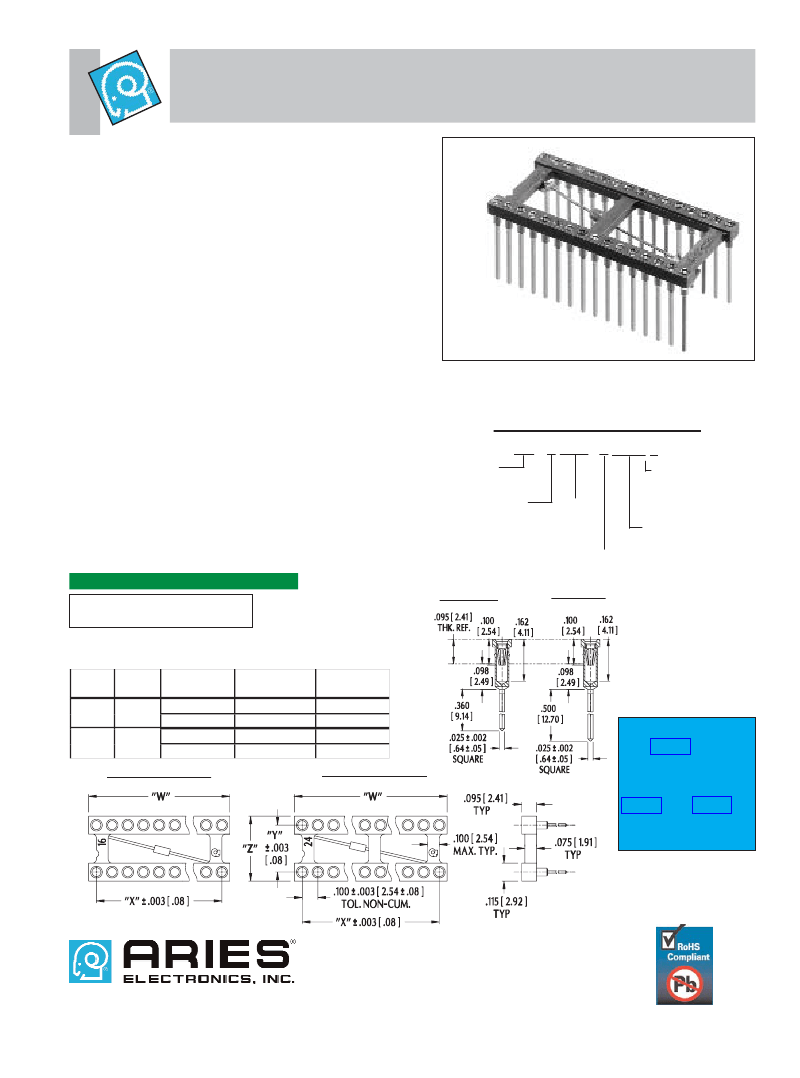

Series 508 Open Frame Capacitor
Collet Sockets with Wire Wrap Pins
FEATURES:
• Capacitor bypasses unwanted electromagnetic “noise.”
• Available with either .1μF or .33μF capacitor, 50V, Z5U
temperature coefficient.
• Open frame allows for more efficient utilization of board space
and better cooling.
• Compatible with automatic insertion equipment.
• Side-to-side and end-to-end stackable.
SPECIFICATIONS:
• Body material is black UL 94V-0 Glass-filled 4/6 Nylon.
•Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-00.
• Pin body plating is either 10μ [.25μm] min. Gold per MIL-G-
45204 or 200μ [5.08μm] min. 93/7 Tin/Lead per ASTM B545
or 200μ [5.08μm] min. Tin per ASTM B545 Type 1 over 100μ
[2.54μm] min. Nickel per SAE-AMS-QQ-N-290.
Note: Aries specializes in custom design and production. In addition to the
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
standard products shown on this page, special materials, platings, sizes, and
C17200 ASTM-B194-01.
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
• Contact plating is 30μ [.76μm] min. Gold per MIL-G-45204
over 50μ [1.27μm] min. Nickel per SAE-AMS-QQ-N-290.
ORDERING INFORMATION
• Contact current rating=3 Amps.
• Operating Temp. = -67°F to 221°F [-55°C to 105°C] Tin
XX-X508-XXXXX
= -67°F to 257°F [-55°C to 125°C] Gold
1=.1μF capacitor
No. of pins
• Insertion Force=180 grams/pin; Withdrawal Force=90
2=.33μF capacitor
(see table)
grams/pin; Normal Force=140 grams/pin; based on a
Plating:
Row-to-row spacing:
.018 [.46] dia. test lead.
Series
0=Gold collet/Tin
3: “Y”=.300 [7.62]
• Accepts leads .015-.025 [.38-.64] in diameter.
shell
4: “Y”=.400 [10.16]
• Accepts lead lengths from .100 [2.54] min.
0TL=Gold collet/
6: “Y”=.600 [15.24]
MOUNTING CONSIDERATIONS:
Tin/Lead shell
2=2 level wire wrap
•Suggested PCB hole size=.045 ± .002 [1.14 ± .05] dia.
1=Gold collet/Gold
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
3=3 level wire wrap
shell
All tolerances ± .005 [.13]
unless otherwise specified
“W”=(NO. OF PINS PER ROW) X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Frame
Style
B
C
No of
Ribs
2
3
Centers
“Y ”
.300 [7.62]
400 [10 16]
.300 [7.62]
.600 [15.24]
Dim
“Z”
.400 [10.16]
500 [12 70]
.400 [10.16]
.700 [17.78]
Available
Sizes
14, 16, 18, 20
20 22 24
24, 28
24, 28, 32, 40
2 LEVEL
3 LEVEL
STYLE B (2 RIB)
STYLE C (3 RIB)
Consult Data Sheet
No. 12026 for solder
tail pins
Consult Data Sheets
12016 and 12017 for
Open Frame Sockets
w/out capacitor.
http://www.arieselec.com • info@arieselec.com
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
abc
12027
REV.D
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
