23K101-102H3

Description
RF Connector, Female, Cable Mount, Crimp Terminal, Jack,
CategoryThe connector    The connector
File Size121KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

23K101-102H3 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Jack,

23K101-102H3 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Other featuresAPPLICABLE CABLES: RG 316/U; RG 174A/U; RG 188A/U
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.24 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number23K101-102H3
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.67
Base Number Matches1

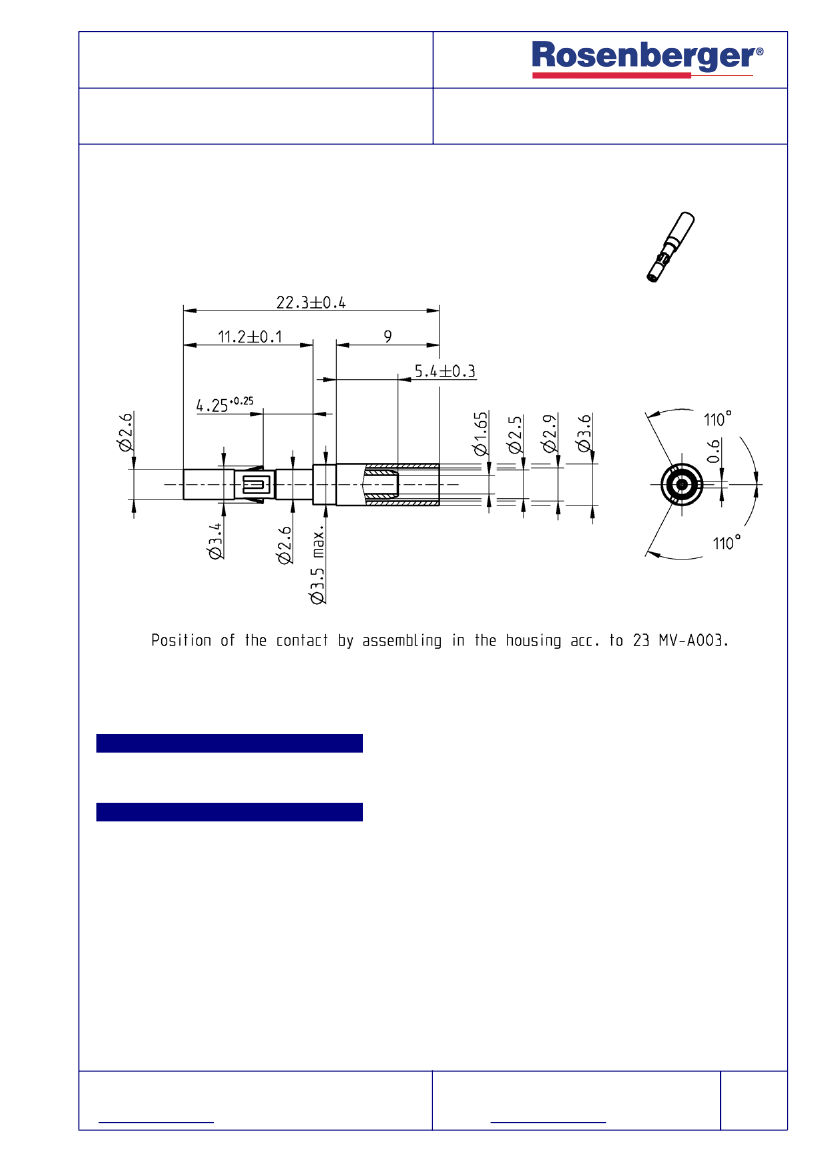

TECHNICAL DATA SHEET
Mini-Coax
STRAIGHT JACK
23K101-102H3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Documents
Assembly instruction
23 A
Material and plating
Connector parts
Center contact
Outer contact
Body
Clip
Dielectric
Crimping ferrule
Material
Beryllium copper
Brass
Brass
Beryllium copper
PTFE
Copper
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 1.27 µm, over chemical nickel
Gold, min. 1.27 µm, over chemical nickel
Nickel, 2.5-5 µm
Gold, 0.1 µm min.
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
