BNC8105-0223 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BNC8105-0223

BNC8105-0223: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size781KB，1 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric Compare View All

BNC8105-0223 Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack

BNC8105-0223 Parametric

Parameter Name	Attribute value
Maker	JYEBAO Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
subject depth	1.185 inch
Body/casing type	JACK
Cable type	RG-223
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Contact resistance	1.5 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

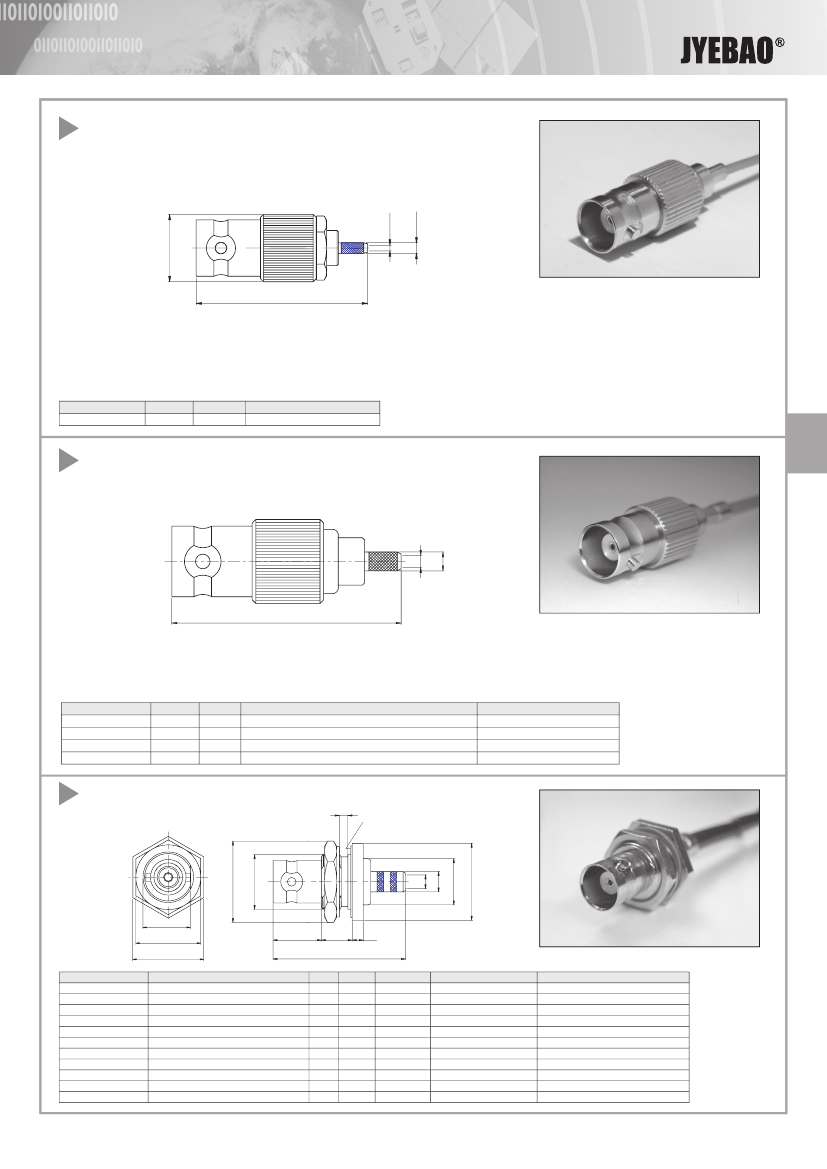

BNC JACK CRIMP

(ø.453)

ø11.5

29.3

(1.154)

BNC JACK CRIMP

ø1.65

(ø.065)

31.4

(1.236)

Part Number

BNC8100-0179

BNC8100-0316

BNC9100-0316

BNC8100D-0316

Weight

10.58g

10.46g

10.32g

Material

Suitable Cables

RG179,RG179-FEP

RG174,RG188,RG316,RG316-E,RG316-FEP,JBY100

RD316,RG316D-E,RD316-FEP

ø2.35

(ø.093)

Remarks

Impedance=75ohm

Reverse Polarity Jack

D=Equivalent cable RD 316

BNC JACK CRIMP FOR BULKHEAD

2.6 MAX

(.102 MAX)

GASKET

1/2 28UNEF

16 HEX

(.630 HEX)

11.7

(.461)

16 HEX

(.630 HEX)

17.5 HEX

(.689 HEX)

(.433)

(.276)

2.5

(.098)

Part Number

BNC8105-0058

BNC8105-0059

BNC8105-0122

BNC8105-0142

BNC8105-0223

BNC8105-03C2

BNC9105-0058

BNC9105-0059

BNC9105-0122

BNC9105-0142

BNC9105-0223

Measurments

ød=3.1 (.122) øD=4.4 (.173) L=30.1 (1.185)

ød=3.9 (.154) øD=5.6 (.220) L=30.1 (1.185)

ød=2.7 (.106) øD=3.8 (.150) L=28.6 (1.126)

ød=3.1 (.122) øD=4.4 (.173) L=30.1 (1.185)

ød=3.3 (.130) øD=5.6 (.220) L=30.1 (1.185)

ød=3.1 (.122) øD=4.4 (.173) L=30.1 (1.185)

ød=3.9 (.154) øD=5.6 (.220) L=30.1 (1.185)

ød=2.7 (.106) øD=3.8 (.150) L=28.6 (1.126)

ød=3.1 (.122) øD=4.4 (.173) L=30.1 (1.185)

M.H.

Weight

15.62g

16.92g

16.42g

9.44g

13.76g

16.09g

Material

Suitable Cables

RG58, JBY195

RG59

RG122

RG55,RG142,RG142-E,RG400

RG223

3C-2W

RG58, JBY195

RG59

RG122

RG55,RG142,RG142-E,RG400

RG223

17.5 HEX

(.689 HEX)

ø10.5

(ø.413)

øD

ød

Remarks

Impedance=75ohm

Reverse Polarity Jack

Impedance=75ohm; Reverse Polarity Jack

Reverse Polarity Jack

Material & Plating: See Page 437

Mounting Hole (M.H.): See Page 439

www.jyebao.com.tw

Tel : 886-2-29029282

Fax: 886-2-29029283

E-mail: jyebao@jyebao.com.tw

122

BNC

Part Number

BNC8100-0178

Weight

11.03g

Material

Suitable Cables

RG178,RG178-FEP,RG196

ø1

(ø.039)

ø1.8

(ø.071)

BNC8105-0223 Related Products

	BNC8105-0223	BNC8105-0142	BNC8105-0058
Description	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack
Maker	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	1.185 inch	1.185 inch	1.185 inch
Body/casing type	JACK	JACK	JACK
Cable type	RG-223	RG-142	RG-58
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
Contact resistance	1.5 mΩ	1.5 mΩ	1.5 mΩ
Contact style	COAX	COAX	COAX
Dielectric withstand voltage	2100VAC V	2100VAC V	2100VAC V
Durability	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	TEFLON	TEFLON	TEFLON
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Number of ports	1	1	1
Maximum operating frequency	4 GHz	4 GHz	4 GHz
Maximum operating temperature	165 °C	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Panel mounting	YES	YES	YES
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS	BRASS
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1
Base Number Matches	1	1	1
