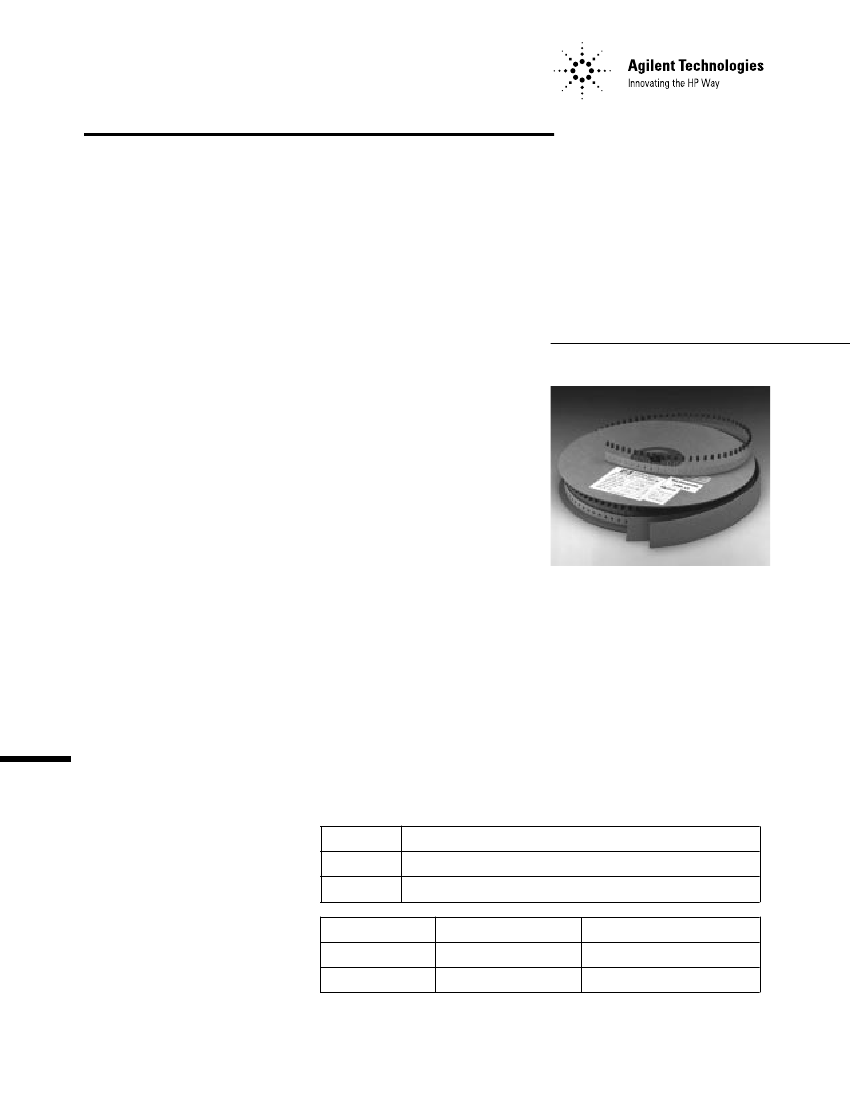

Tape and Reel Options for T-1
3
/
4
(5 mm), T-1 (3 mm), LED Lamps
Technical Data
Option 01
Option 02
Features
• Compatible with Radial Lead
Automatic Insertion
Equipment
• Meets Dimensional Specifi-
cations of IEC Publication
286 and ANSI/EIA Standard
RS-468 for Tape and Reel
• Reel Packaging Simplifies
Handling and Testing
• T-1 and T-1
3
/
4
LED Lamps
Available Packaged on Tape
and Reel
• 5 mm (0.197 inch) Formed
Lead and 2.54 mm (0.100
inch) Straight Lead Spacing
Available
Ordering Information
To order LED lamps packaged on
tape and reel, include the
appropriate option code along
with the device catalog part
number. Example: to order the
HLMP-3300 on tape and reel with
formed leads (5 mm lead spacing)
order as follows: HLMP-3300
Option 01. Minimum order
quantities vary by part number.
Orders must be placed in reel
increments. Please contact your
local Agilent sales office or
franchised Agilent distributor for
a complete list of lamps available
on tape and reel.
LED lamps with 0.46 mm (0.018
inch) square leads with 5 mm
(0.197 inch) lead spacing are
recommended for use with
automatic insertion equipment.
Description
T-1 and T-1
3
/
4
LED lamps are
available on tape and reel as
specified by the IEC Publication
286 and ANSI/EIA Standard
RS-468. The Option 01 lamp
devices have formed leads with
5 mm (0.197 inch) spacing for
automatic insertion into PC
boards by radial lead insertion
equipment. The Option 02 lamp
devices have straight leads with
2.54 mm (0.100 inch) spacing,
packaged on tape and reel for
ease of handling. T-1 lamps are
packaged 1800/reel. T-1
3
/
4
lamps
are packaged 1300/reel.
Caution: Agilent does not
recommend T-1 package, option
02 LEDs for auto-insertion. The
force exerted on the LED lead
frame during the cut and clinch
operation of auto-insertion may
result in cracking of the lamp
epoxy dome which results in
catastrophic failure. It is
suggested that insertion machine
compatibility be confirmed.
Device Selection Guide
Option
01
02
Package
T-1
T-1
3
/
4
Description
Tape and reel, 5 mm (0.197 inch) formed leads.
Tape and reel, 2.54 mm (0.100 inch) straight leads.
Quantity/Reel
1800
1300
Order Increments
1800
1300
2
Absolute Maximum
Ratings and Electrical/
Optical Characteristics
The absolute maximum ratings,
mechanical dimension tolerances
and electrical/optical
characteristics for lamps
packaged on tape and reel are
identical to the basic catalog
device. Refer to the basic data
sheet for the specified values.

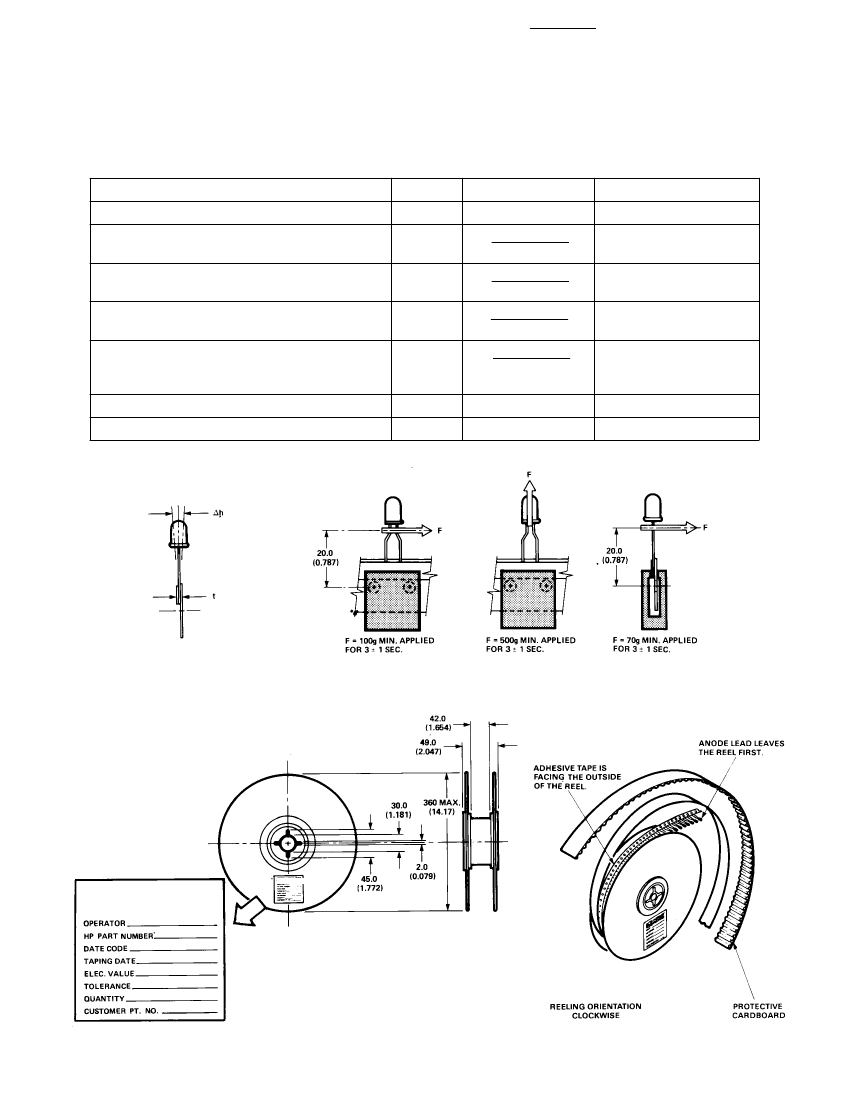

Notes:
1. Minimum leader length at either end of
tape is 3 blank part spaces.
2. Silver saver paper is used as the
interlayer for silver plated lead devices.
3. The maximum number of consecutive
missing lamps is 3.
4. In accordance with EIA and IEC specs,
the anode lead leaves the reel first.
5. Drawings apply to devices with
0.46 mm (0.018 inch) square leads
only. Contact Agilent Sales Office for
dimensions of 0.635 mm (0.025 inch)
square lead devices.

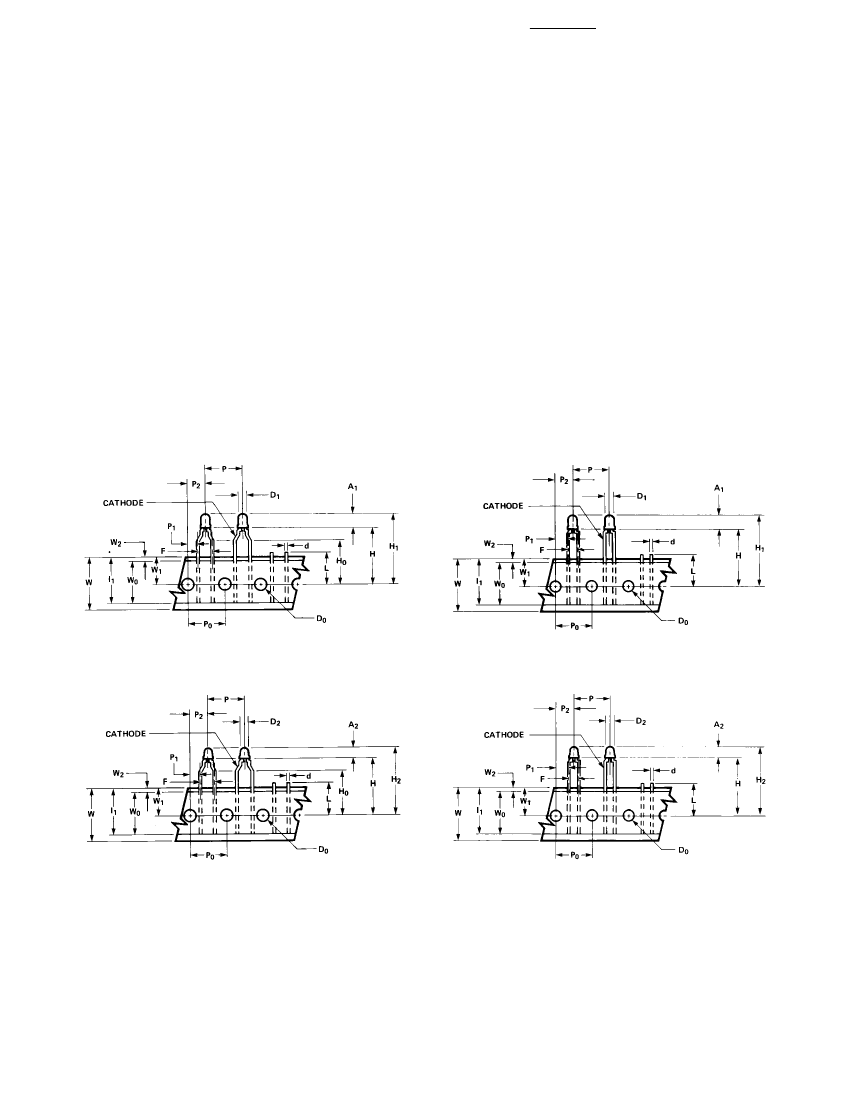

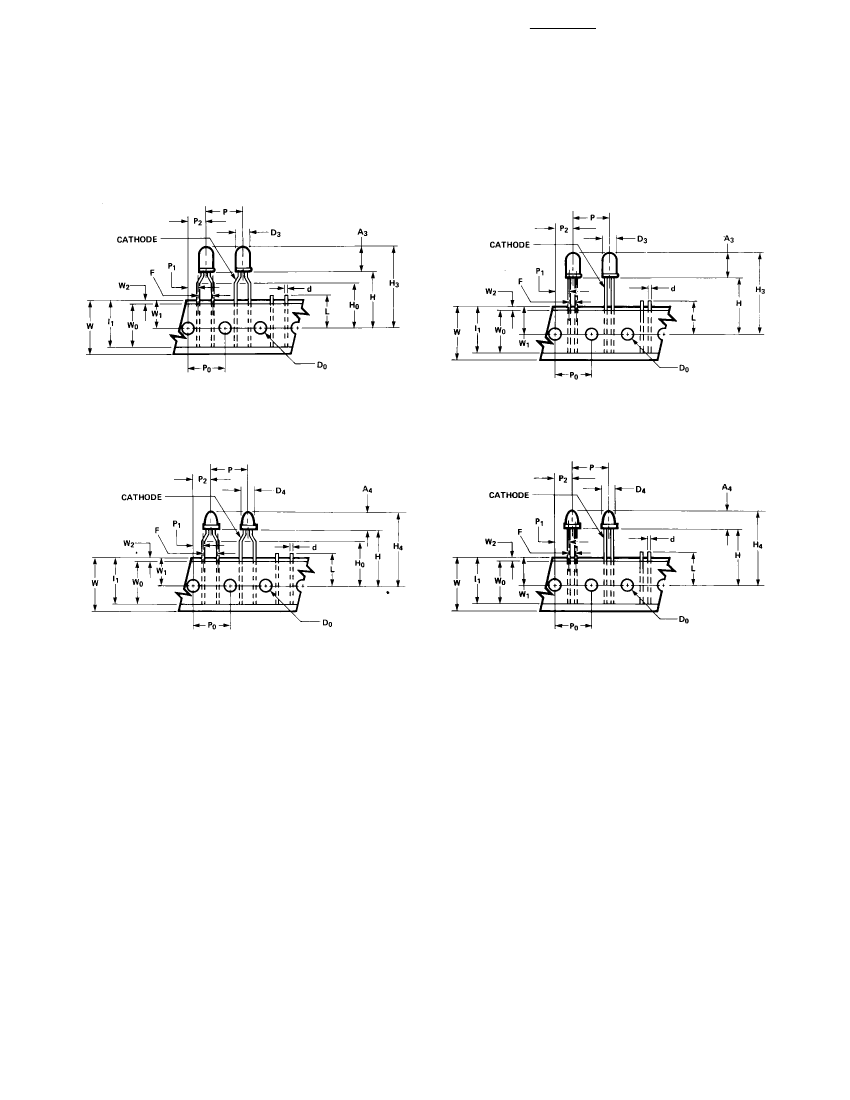

Tape and Reel LED Configurations
Figure 1. T-1 High Profile Lamps, Option 01.
Figure 2. T-1 High Profile Lamps, Option 02.
Figure 3. T-1 Low Profile Lamps, Option 01.
Figure 4. T-1 Low Profile Lamps, Option 02.
