Panel feed-through - QPD W 4PE6,0 12-20 M25 1,0 GY - 1410402
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through, QUICKON connection, number of positions: 4+PE, 2.5 mm² ... 6 mm², 690 V, 40 A, gray,
with QUICKON nut, cable diameter range: 12 mm ... 20 mm, assembly thread: M25, Single wires (welded-on),
6 mm², wires cut flat at the end, cable length: 1 m
Your advantages
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Convenient: quick and easy assembly without special tools
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection thanks to polarization against mismatching and touch-proof protection according to DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356929424
22.220 g
85366990
Poland
1 pc
Technical data
General
Type
Length of cable
Color
Locking type
Connection method
Number of positions
Note number of positions
QPD 5x6,0
1m
gray
Screw locking
QUICKON connection
IDC connection
5
4+PE
01/04/2019 Page 1 / 5
https://www.phoenixcontact.com/in/products/1410402
Panel feed-through - QPD W 4PE6,0 12-20 M25 1,0 GY - 1410402
Technical data
General
Wrench size, union nut
Tightening torque, union nut
Number of connections
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
30 mm
15 Nm
10
2.5 mm²
6 mm²
2.5 mm²
6 mm²
14
10
Cabel
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter VDE 0295 class 1 to 6/min. 0.15 mm
Wire insulation material
Wire diameter including insulation
External cable diameter
Conductor cross section
Wire colors
Position marking
PVC/PE/TPE/rubber
2.95 mm ... 5 mm
12 mm ... 20 mm
6 mm²
black, brown, gray, blue, green/yellow
1, 2, L, N, PE
Ambient conditions
Degree of protection
IP66
IP68 (2 m / 24 h)
IP69K
Ambient temperature (operation)
Ambient temperature (storage/transport)
Temperature when conductor connected
-40 °C ... 100 °C
-40 °C ... 100 °C
-5 °C ... 50 °C
Electrical characteristics
Nominal current I
N
Rated current
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
40 A
40 A
690 V
1000 V
1000 V
6 kV
8 kV
8 kV
Mechanical characteristics
QUICKON connectability
Category of shock impact
max. 10
IK07
Material data
Contact material
Cu
01/04/2019 Page 2 / 5
https://www.phoenixcontact.com/in/products/1410402
Panel feed-through - QPD W 4PE6,0 12-20 M25 1,0 GY - 1410402
Technical data
Material data
Contact surface material
Contact carrier material
Insulating material
Flammability rating according to UL 94
Overvoltage category
Degree of pollution
silver-plated
PA
PA
V0
III
3
Standards and Regulations
Flammability rating according to UL 94
V0
Drawings
Dimensional drawing
Ø39,6
62,4
19,2
Dimensional drawing
25
+0,2
N
2
32
3,91
Dimensional drawing of QPD W 4PE6,0 M25
Panel cutout
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27143400
27143400
27440602
27440602
27440602
ETIM
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC002635
EC002566
EC002061
UNSPSC
UNSPSC 13.2
39121522
Accessories
Accessories
Coding element
01/04/2019 Page 3 / 5
11,2
+0,2
30
22,5
M25
1
3
https://www.phoenixcontact.com/in/products/1410402
Panel feed-through - QPD W 4PE6,0 12-20 M25 1,0 GY - 1410402

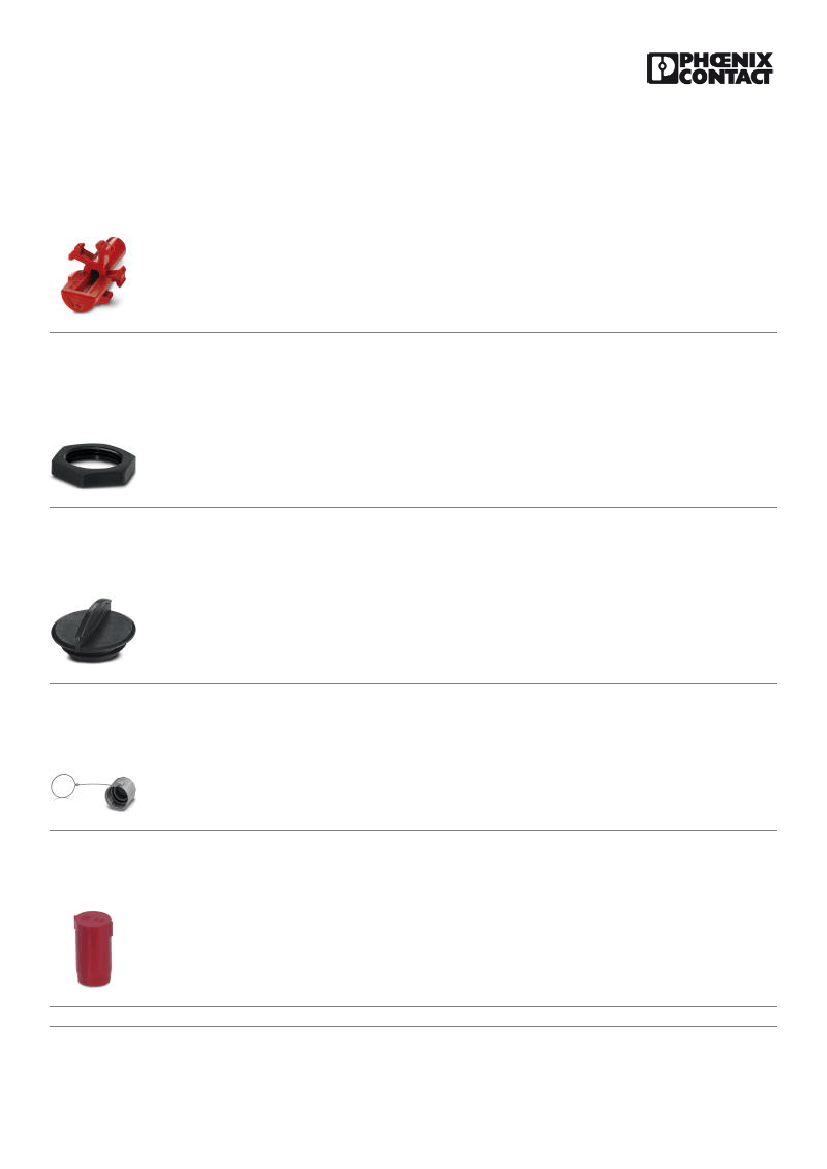

Accessories
Coding profile - CP-QPD 5X6,0 - 1411402
Coding profile, red, for insertion into the 5-pos. QUICKON dome and connector, can be positioned in 72° increments.
Mounting material
Nut - Q-MU M25 - 1640715
Nut (plastic) to lock the contact carrier from the inside of the device
Protective cap
Protective cap - QPD QSK 5X6,0 - 1411403
Protective cap, black plastic, for 5 x 2.5 mm² QPD connector, IP50.
Protective cap - QPD QSK GY 5X6,0 FS - 1411401
Protective cap, plastic, for QUICKON connection, gray, with retaining cord, IP68
Sealing plugs
Closing cap - SEALING PLUG 14X22 RD - 1400270
Closing cap, PA, for threads pluggable, color: red
01/04/2019 Page 4 / 5
https://www.phoenixcontact.com/in/products/1410402
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/04/2019 Page 5 / 5
