SOLISTRAND, Budget and DIAMOND GRIP
Uninsulated Terminals and Splices
Catalog 65505
Revised 9-00
Product Facts
s
s
s
s

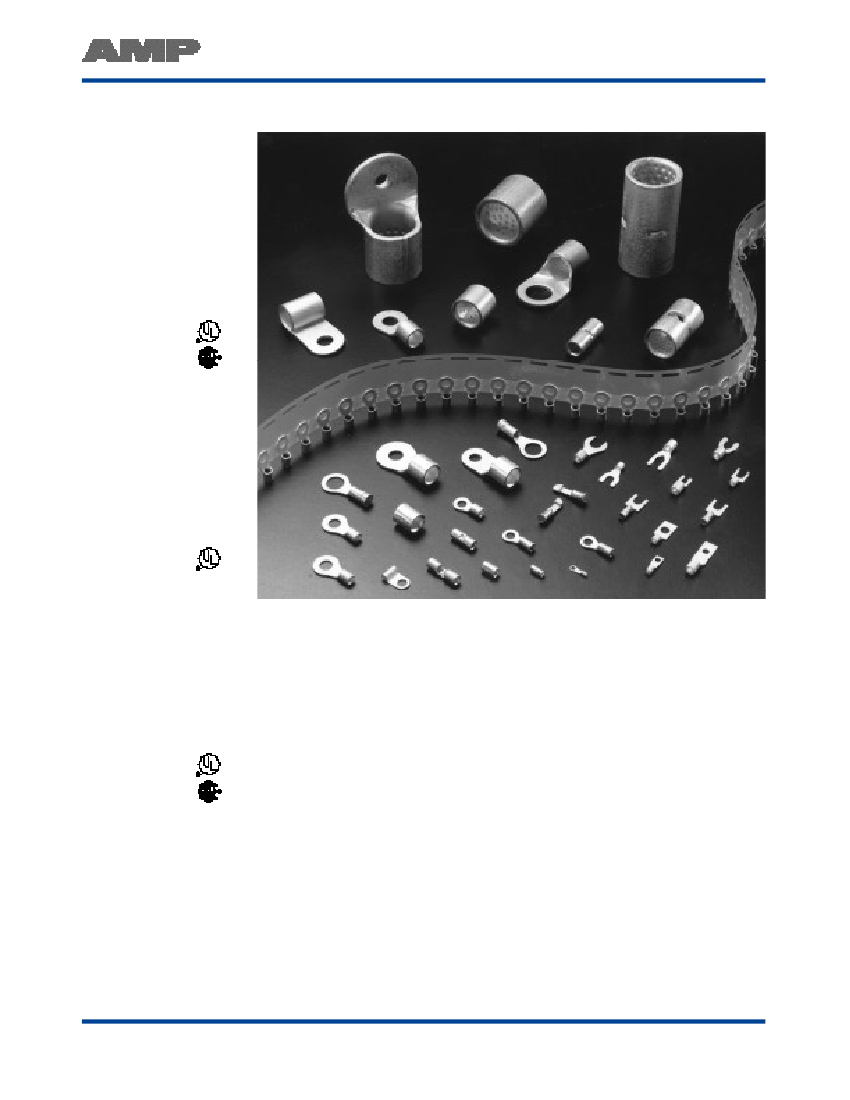

SOLISTRAND
Terminals and Splices
Utilize a brazed seam
Applied with “W” crimp
tooling
Available in wire sizes
26 AWG – 600 MCM
[0.1–304 mm
2
]
For terminating solid
& stranded wires
U.L. Listed
CSA Certified
Military Approved
Budget
Terminals and Splices
Utilize a butted seam
Applied with “F” crimp
tooling
Availble in wire
sizes 26 – 10 AWG
[0.1–6.64 mm
2
]
For terminating stranded
wire only
U.L. Listed
DIAMOND GRIP
Terminals and Splices
Utilize a butted seam
Metal insulation support
sleeve with “V” notches
Applied with a “C” crimp
Available in wire sizes
26-10 AWG (0.1-6.64 mm
2
)
For terminating stranded
wire only
U.L. Listed
CSA Certified
SOLISTRAND and Budget
terminals and splices are
specially designed to termi-
nate solid and stranded
wire, irregular shaped con-
ductors, and combinations
of these — retaining the
superior performance char-
acteristics of single-purpose
terminals and splices.
Corrosion resistance, vibra-
tion resistance and tensile
strength of these terminals
and splices are well within
the limits of commercial and
military specifications.
The Budget terminal is
primarily the same as the
SOLISTRAND terminals
without the brazed seam
in the wire barrel. These
terminals and splices fulfill
the need for an economical
and electrically superior ter-
mination where extreme
vibration and tension on the
wires are not present.
DIAMOND GRIP utilizes a
tin plated copper insulation
support sleeve with “V”
notches. The sleeve elimi-
nates fraying of the insula-
tion or breaking of the con-
ductor. The “V” notches
lock the wire insulation
against vibration and
pullout.
Need more information?
Call the AMP Technical
Support Center:
1-800-522-6752
The Technical Support
Center is staffed with spe-
cialists well versed in all
AMP Products. The Center
can provide you with:
s
Technical Support
s
Catalogs
s
Technical Documents
s
Product Samples
s
AMP Authorized
Distributor Locations
© Copyright 1994, 1996 and 2000 by
AMP Incorporated, Harrisburg, PA.
All Rights Reserved.
AMP, AMPOMATOR, AMP-O-LECTRIC,
AMP-TAPETRONIC, CERTI-CRIMP,
DIAMOND GRIP, PRO-CRIMPER II,
SOLISTRAND, TAPETRONIC and
DYNA-CRIMP are trademarks.
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
1
For drawings, technical data or samples, contact your AMP sales engineer or call the AMP Technical Support Center 1-800-522-6752.
Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents.
Specifications subject to change. Consult AMP for latest specifications.
SOLISTRAND, Budget and DIAMOND GRIP
Uninsulated Terminals and Splices
Catalog 65505
Revised 9-00
Table of Contents
How to Compute Circular
Mil Area of Various Wire Shapes ............................................................................................3
Table of SOLISTRAND and Budget Standard Wire Ranges ..................................................3
Table listing: Circular Mil Area for common wire sizes......................................................4 – 7
Product Descriptions ....................................................................................................8, 9, 10
Stud Hole Sizes ....................................................................................................................11
SOLISTRAND and Budget
Ring Tongue Terminals...........................................................................................12–
20
26 AWG – 600 MCM [0.1– 304 mm
2
]
Right Angle Ring Tongue Terminals
............................................................................21
22 AWG – 300 MCM [0.26– 152 mm
2
]
Heavy Duty Ring Tongue Terminals
......................................................................22, 23
16 – 1/0 AWG [1.04 – 60.6 mm
2
]
Rectangular Tongue Terminals
..............................................................................24, 25
22 – 10 AWG [0.26 – 6.64 mm
2
]
Spade Tongue Terminals
..............................................................................................26
26 – 10 AWG [0.1 – 6.64 mm
2
]
Short Spring Spade Tongue Terminals
................................................................27, 28
26 – 10 AWG [0.1 – 6.64 mm
2
]
Long Spring Spade Tongue Terminals
.......................................................................29
26 – 10 AWG [0.1 – 6.64 mm
2
]
Flanged Spade Tongue Terminals
..............................................................................30
26 – 10 AWG [0.1 – 6.64 mm
2
]
Slotted Ring Tongue Terminals
...................................................................................31
26 – 10 AWG [0.1 – 6.64 mm
2
]
Hook Tongue Terminals
................................................................................................32
22 – 10 AWG [0.26 – 6.64 mm
2
]
Tab Tongue Terminals...................................................................................................32
22 – 8 AWG [0.26 – 10.5 mm
2
]
Flag Ring Tongue Terminals...................................................................................33,
34
16 – 4/0 AWG [1.04 – 117 mm
2
]
Parallel Splices...............................................................................................................35
22 AWG– 600 MCM [0.26 – 304 mm
2
]
Butt Splices
..............................................................................................................36, 37
26 AWG – 600 MCM [0.1 – 304 mm
2
]
DIAMOND GRIP
Ring Tongue Terminals
...........................................................................................38, 39
26 – 10 AWG [0.1– 6.64 mm
2
]
Knife Disconnect Splices
..............................................................................................40
22 – 10 AWG [0.26 – 6.64 mm
2
]
Slotted Ring Tongue
......................................................................................................40
26 – 16 AWG [0.1 – 1.65 mm
2
]
Rectangular Tongue Terminals
....................................................................................41
22 – 16 AWG [0.26 – 1.65 mm
2
]
Flanged Spade Tongue Terminals
..............................................................................41
26 – 14 AWG [0.1 – 2.62 mm
2
]
Spade Tongue Terminals
.............................................................................................42
26 – 16 AWG [0.1 – 1.65 mm
2
]
Standard “B”
Knife Disconnect Splices
..............................................................................................43
22 – 8 AWG [0.26 – 10.5 mm
2
]
Rectangular Tongue Terminals
....................................................................................43
22 – 14 AWG [0.26 – 2.62 mm
2
]
Military Approvals, Part Numbers & Requirements ......................................................44 – 48
U.L. Requirements ..........................................................................................................49, 50
Application Tooling ........................................................................................................51– 56
Part Number Index .........................................................................................................57– 59
2
For drawings, technical data or samples, contact your AMP sales engineer or call the AMP Technical Support Center 1-800-522-6752.
Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents.
Specifications subject to change. Consult AMP for latest specifications.
SOLISTRAND, Budget and DIAMOND GRIP
Uninsulated Terminals and Splices
Catalog 65505
Revised 9-00
How to Compute Circular Mil Area of Various Wire Shapes
Square or Rectangular Wire
U.S. Customary Dimensions
Multiply the width of the wire cross section
in mils by the thickness of the wire cross
section in mils by 1.2732 and subtract the
radius factor shown below.
CMA = W x T x 1.2732 – radius factor
Metric Dimensions
Multiply the width of the wire cross section in
millimetres by the thickness of the wire cross
section in millimetres by 1973.525 and sub-
tract the radius factor shown below.
CMA = W x T x 1973.525 – radius factor
Round Solid Wire AWG
Multiply the diameter in mils by itself.
CMA = D
2
Multiply the diameter in milllimetres by itself
by 1550.003
CMA = D
2
x 1550.003
Stranded Wire AWG
Multiply the diameter of one strand (in mils)
by itself, and then multiply the result by the
total number of strands.
CMA = D
2
x N
Multiply the diameter of one strand in mil-
limetres by itself by the number of strands
by 1550.003.
CMA = D
2
x N x 1550.003
Conversion Table
To
Convert
From
CMA
CMA
mm
2
mm
2
To
mm
2
in
2
in
2
CMA
Multiply By
.0005067075
.0000007854
.001550003
1973.525
Radius Factor, U.S. Customary
Radius
(in.)
.010
.012
.016
.020
.026
.032
.040
.063
.094
Radius must be measured.
Radius Factor
To Subtract
(CMA)
110
158
280
438
740
1121
1752
4346
9675
Radius Factor, Metric
Radius
(mm)
0.25
0.3
0.35
0.4
0.5
0.6
0.8
1.2
Radius must be measured.
Radius Factor
To Subtract
(CMA)
106
153
208
272
424
611
1086
2444
Note:
Refer to table listing for circu-
lar mil area for common wire sizes.
Table of SOLISTRAND and Budget Standard Wire Ranges
Use to select the proper size terminals or splices.
Terminal Connector
Size
26–22
24–20
22–16
16–14 & 16–14 HD
14–12
12–10
8 & 8 HD
6 & 6 HD
4 & 4 HD
HD-Denotes Heavy Duty Terminal.
CMA Range
202–810
320–1,290
509–3,260
2,050–5,180
3,260–8,230
5,180–13,100
13,100–20,800
20,800–33,100
33,100–52,600
Terminal Connector
Size
2 & 2 HD
1/0 & 1/0 HD
2/0
3/0
4/0
250–300 MCM
300–350 MCM
400 MCM
500–600 MCM
CMA Range
52,600–83,700
83,700–119,500
119,500–150,500
150,500–190,000
190,000–231,000
231,000–300,000
300,000–380,000
350,000–478,000
478,000–600,000
3
For drawings, technical data or samples, contact your AMP sales engineer or call the AMP Technical Support Center 1-800-522-6752.
Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents.
Specifications subject to change. Consult AMP for latest specifications.
SOLISTRAND, Budget and DIAMOND GRIP
Uninsulated Terminals and Splices
