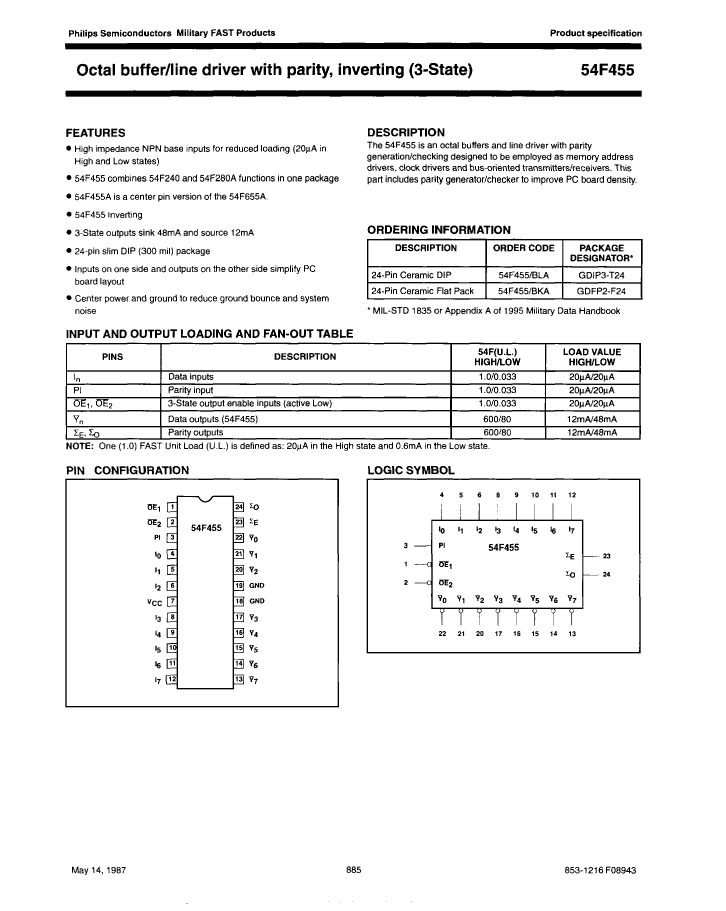

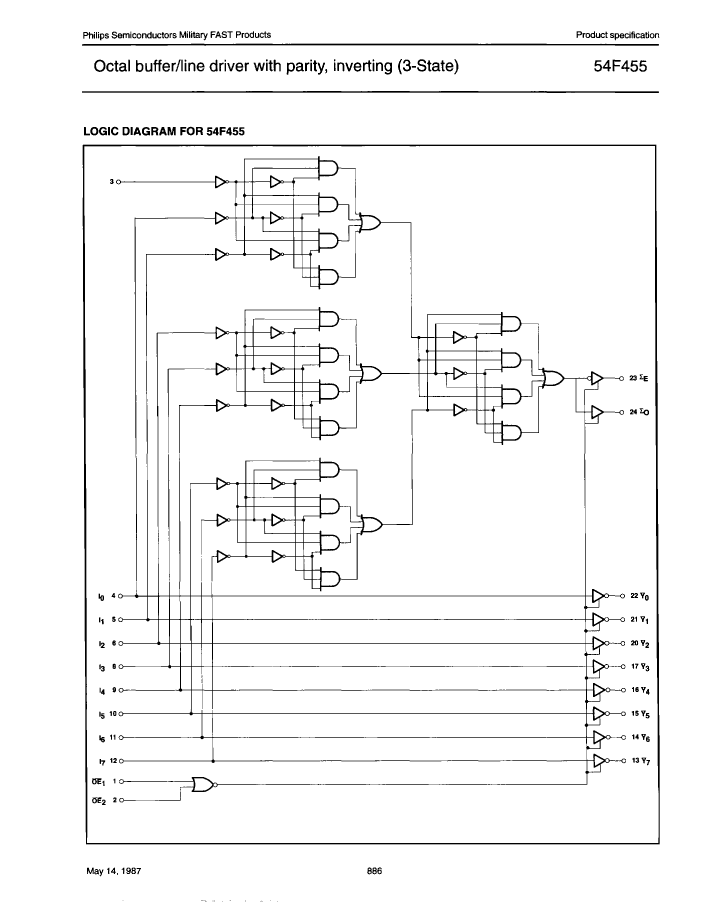

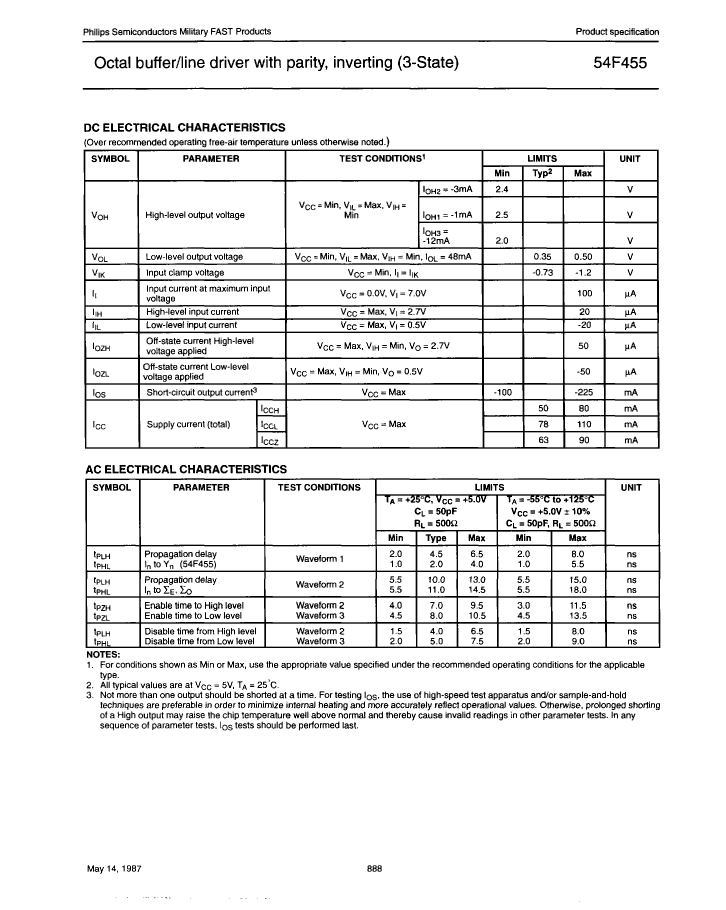

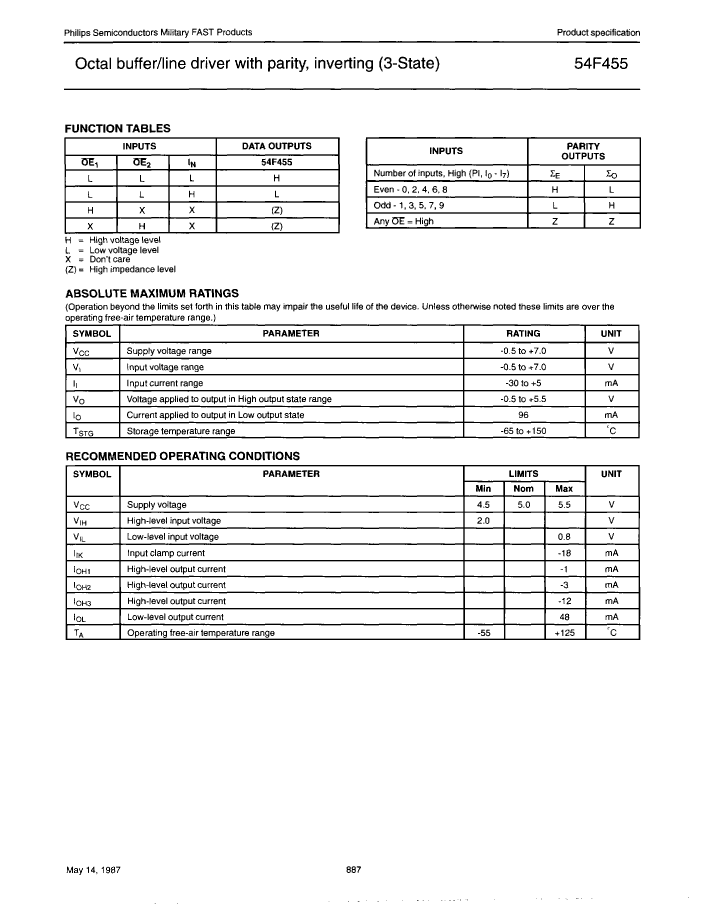

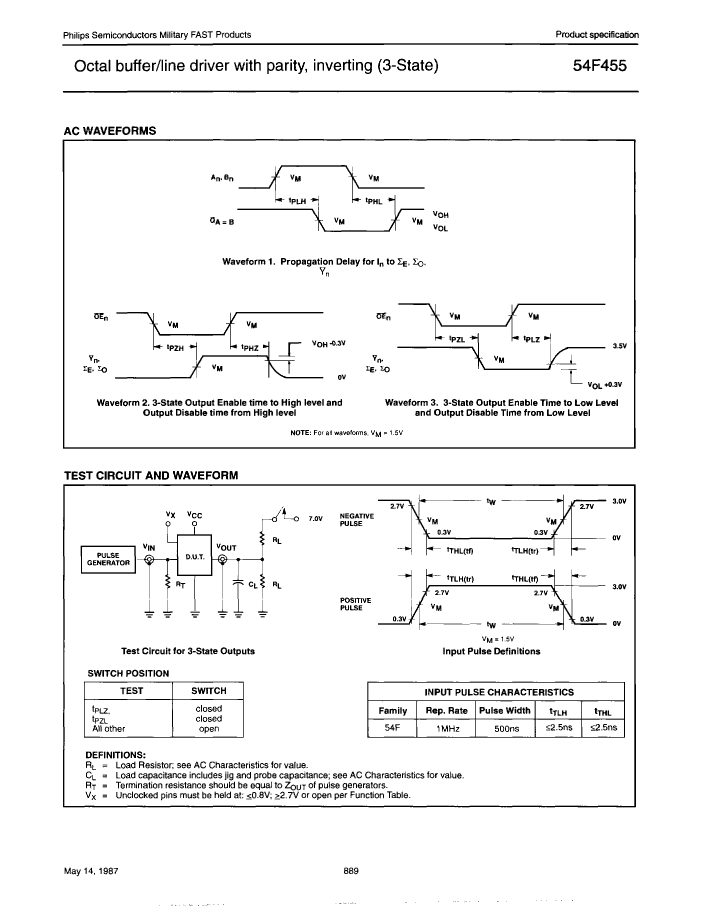

54F455/BKA: DescriptionIC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver; Categorylogic logic; File Size123KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F455/BKA Overview

IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver

54F455/BKA Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DFP
package instruction	DFP,
Contacts	24
Reach Compliance Code	unknown
Other features	DUAL OUTPUT ENABLE; ODD/EVEN PARITY GENERATION; CENTRE PIN VCC VERSION OF 655
series	F/FAST
JESD-30 code	R-CDFP-F24
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	110 mA
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.144 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54F455/BKA Related Products

	54F455/BKA	N54F455/BKA	54F455/BLA
Description	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24, Bus Driver/Transceiver
Maker	NXP	NXP	NXP
Parts packaging code	DFP	DFP	DIP
package instruction	DFP,	DFP,	DIP,
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
Other features	DUAL OUTPUT ENABLE; ODD/EVEN PARITY GENERATION; CENTRE PIN VCC VERSION OF 655	DUAL OUTPUT ENABLE; ODD/EVEN PARITY GENERATION; CENTRE PIN VCC VERSION OF 655	DUAL OUTPUT ENABLE; ODD/EVEN PARITY GENERATION; CENTRE PIN VCC VERSION OF 655
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F24	R-CDFP-F24	R-GDIP-T24
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE
Maximum supply current (ICC)	110 mA	110 mA	110 mA
propagation delay (tpd)	5.5 ns	5.5 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	2.286 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	9.144 mm	9.144 mm	7.62 mm
Base Number Matches	1	1	1
