3204.31.2420.025 datasheet, PDF

3204.31.2420.025: DescriptionRF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

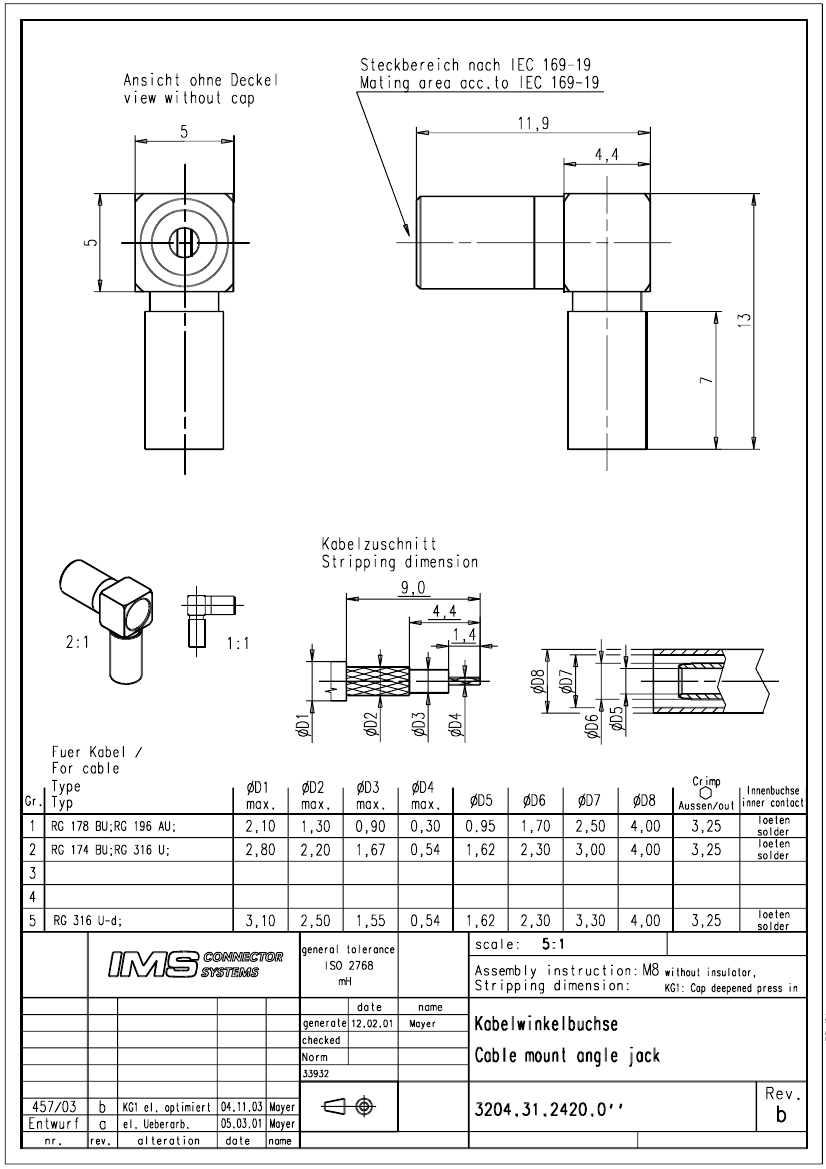

3204.31.2420.025 Overview

RF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.512 inch
subject depth	0.469 inch
body length	0.173 inch
Body/casing type	JACK
Cable type	RG-174
Characteristic impedance	50 Ω
Connector type	RF SSMB CONNECTOR
Contact point gender	FEMALE
Contact resistance	5 mΩ
Contact style	COAX
Dielectric withstand voltage	500VDC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	YES
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	12.4 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
reliability	MIL-C-39012
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

	3204.31.2420.025	3204.31.2420.021
Description	RF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack
Reach Compliance Code	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.512 inch	0.512 inch
subject depth	0.469 inch	0.469 inch
body length	0.173 inch	0.173 inch
Body/casing type	JACK	JACK
Cable type	RG-174	RG-174
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SSMB CONNECTOR	RF SSMB CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	5 mΩ	5 mΩ
Contact style	COAX	COAX
Dielectric withstand voltage	500VDC V	500VDC V
Durability	500 Cycles	500 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
MIL compliance	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	12.4 GHz	12.4 GHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Rated current (signal)	1 A	1 A
reliability	MIL-C-39012	MIL-C-39012
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
Base Number Matches	1	1
