NOTES: UNLESS OTHERWISE SPECIFIED
1. FOR GENERAL SERIES SPECIFICATIONS, SEE SD31-0000.
2. MATERIAL SPECIFICATIONS:
REAR BODY AND CONTACT: BRASS PER ASTM B16
FRONT BODY: COPPER BERYLLIUM PER ASTM B196
CLIP RING: COPPER BERYLLIUM PER ASTM B196
INSULATOR: TEFLON PER ASTM D1710
3. FINISH SPECIFICATIONS:
BODIES AND CONTACT: 30µIN MIN GOLD PER B488 OVER
80 µIN MIN NICKEL PER SAE-AMS-QQ-N-290
CLIP RING: 100 µIN NICKEL PER SAE-AMS-QQ-N-290
4. DESIGNED FOR USE IN THE FOLLOWING D-SIZE SHELL
CONFIGURATIONS: 24W7S, 36W4S, 43W2S AND 47W1S
.96 24.31
REV
DESCRIPTION
BY
APPD
DATE
WPM
03/06/08
RDG
03/05/08
01
ER08-EWR6948
.040 1.02
.360 9.14
.02 .38
PCB SURFACE
.16 4.06
.031 .79
.200
5.08
.100
A
2.54
.224 5.69
2X
.02 .61
CATALOG P/N: 313-010-6140G
.224 5.69
RECOMMENDED PCB LAYOUT
3X
.046
±.003
1.17
±.08
.004[0.10] A
PER ASME Y14.5M-1994
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
DECIMAL: .XX [X.X] ± .01 [0.3]
.XXX [X.XX] ± .005 [0.13]
.XXXX [X.XXX] ± .XXXX
ANGLES: ± 2°
SCALE: 4:1
W
inches
er
E
lec
ronics
Winchester Electronics Corporation
62 Barnes Industrial Road North
Wallingford, Connecticut 06492
CUSTOMER
DRAWING
DRAWN
RDG
APPROVED
DC
DATE APPROVED
03/05/08 WPM
DATE APPROVED
03/06/08
XXX
DATE
03/06/08
DATE
XX/XX/XX

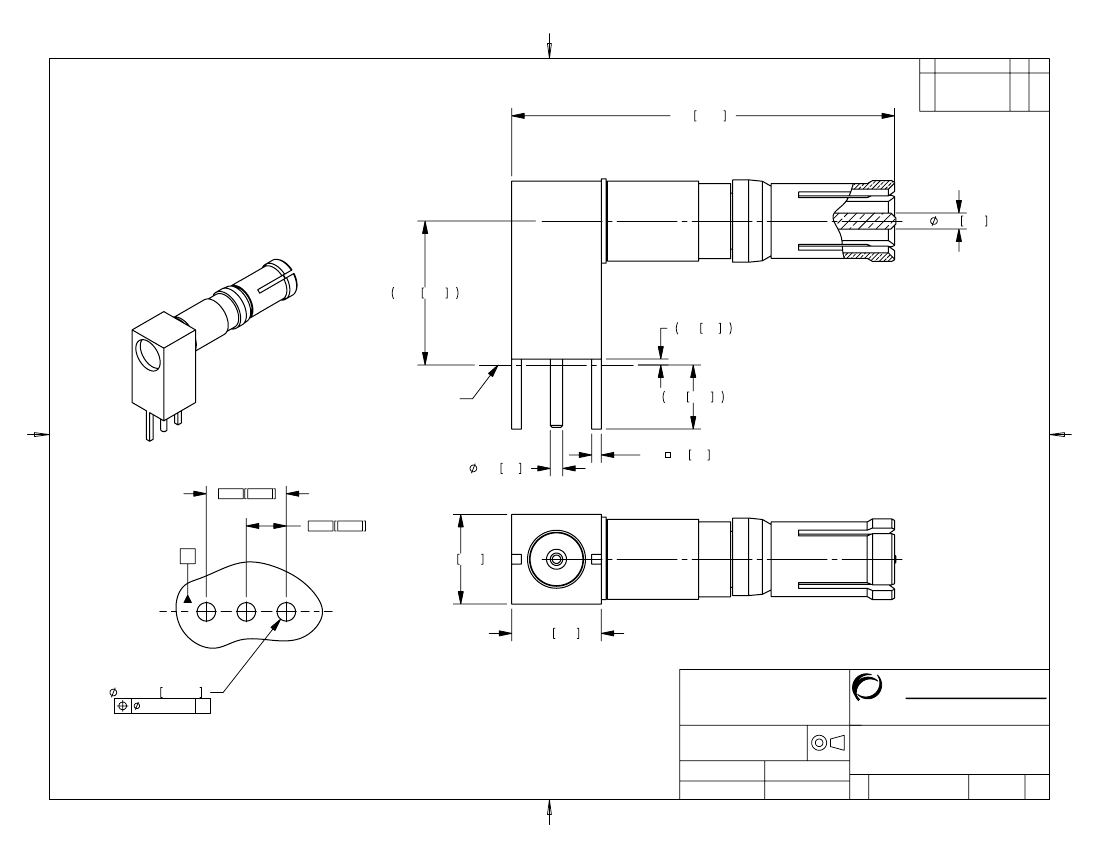

RDM R/A 31-SERIES RECEPTACLE
A
SD313-010-6141G
SHT
1
OF
1 01
REV
