553443-1 datasheet, PDF - EEWORLD Datasheet

553443-1: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,14 CONTACTS,SKT,0.085 PITCH,COMPLIANT FIT TERMINAL,#4-40; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

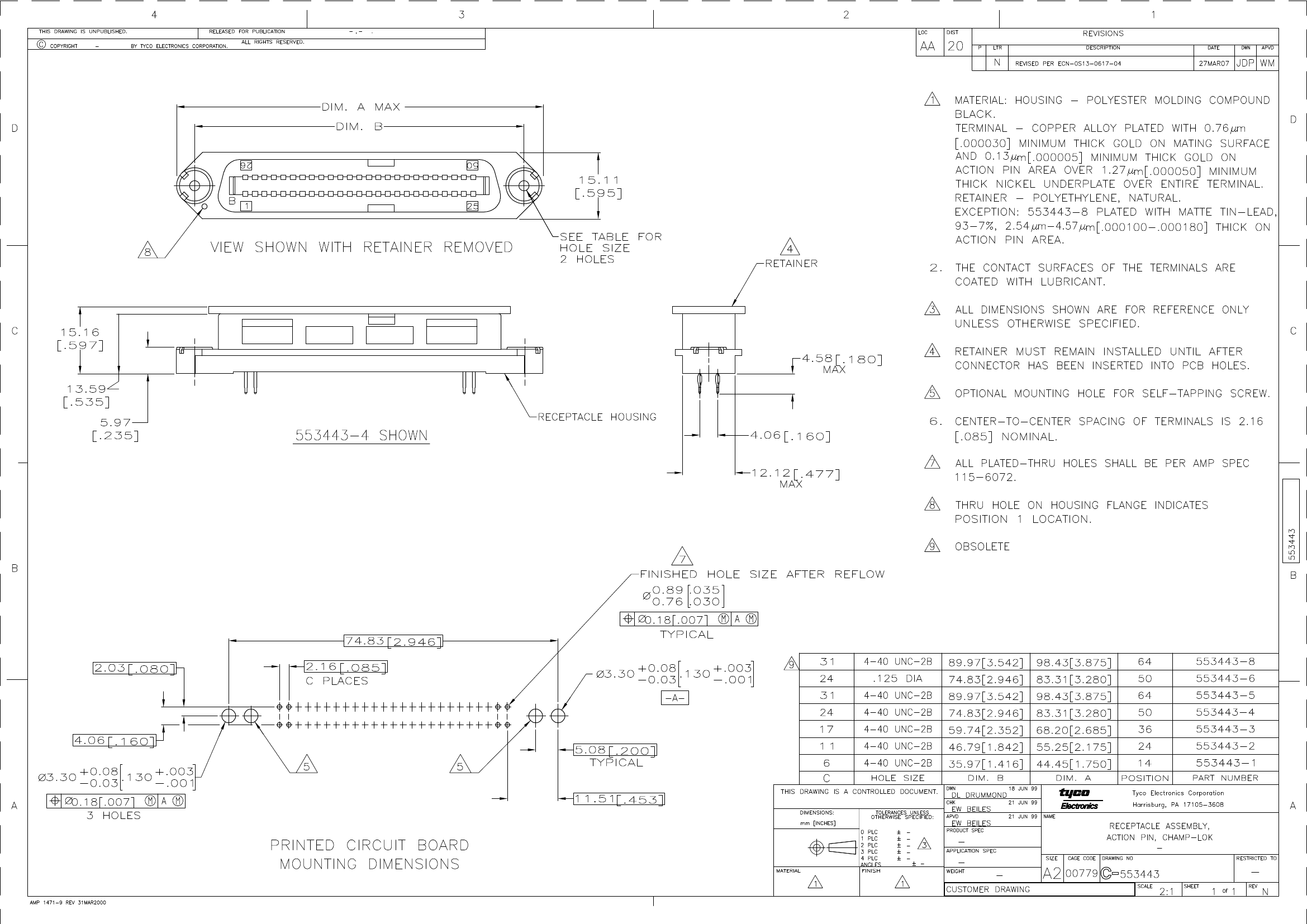

553443-1 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,14 CONTACTS,SKT,0.085 PITCH,COMPLIANT FIT TERMINAL,#4-40

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.595 inch
subject depth	0.235 inch
body length	1.75 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6.5 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Insulation resistance	20000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	553443
Plug contact pitch	0.085 inch
Match contact row spacing	0.16 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.064 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.159 mm
Termination type	PRESS FIT
Total number of contacts	14
Base Number Matches	1
