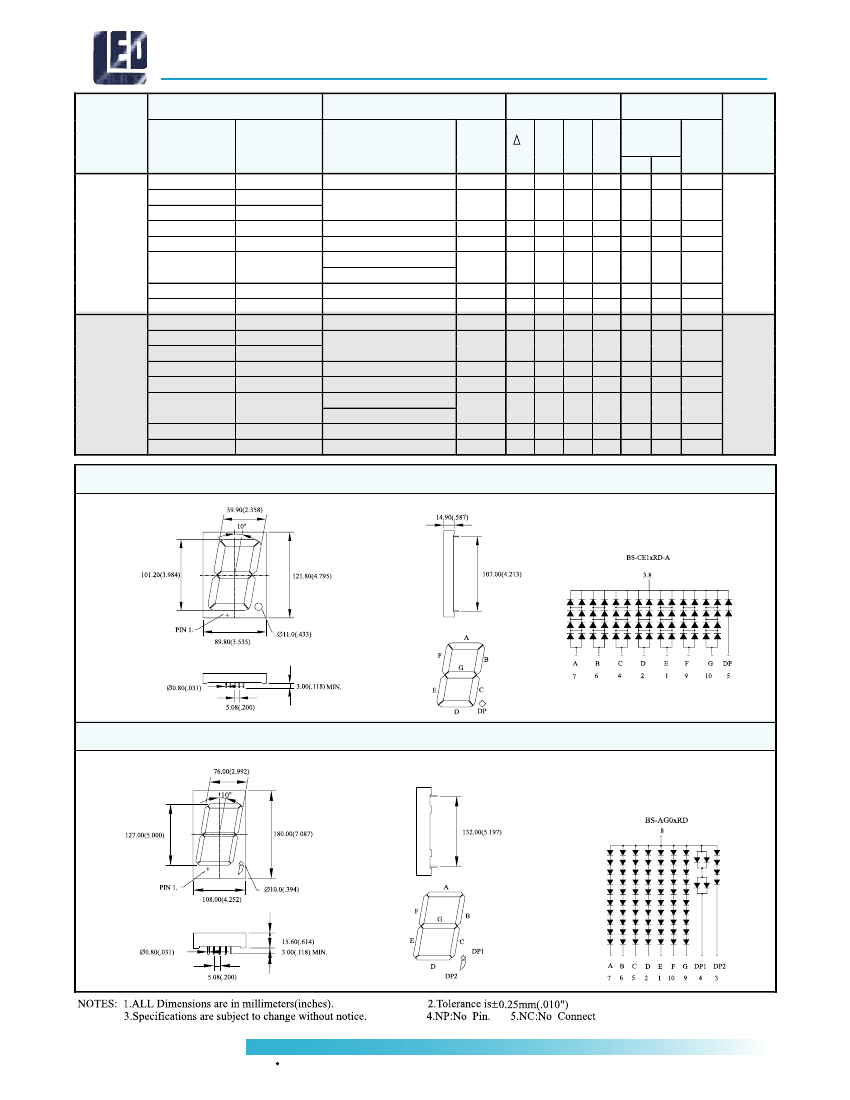

BS-CE15RE-A: DescriptionSmart/Normal 7 Seg Numeric LED Display, Bright Red, 101.2mm, SD-63, 10 PIN; CategoryLED optoelectronic/LED photoelectric; File Size291KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BS-CE15RE-A Overview

Smart/Normal 7 Seg Numeric LED Display, Bright Red, 101.2mm, SD-63, 10 PIN

BS-CE15RE-A Parametric

Parameter Name	Attribute value
package instruction	SD-63, 10 PIN
Reach Compliance Code	unknown
color	BRIGHT RED
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	101.2 mm
Maximum forward current	0.015 A
Number of functions	1
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

Single Digit LED Displays

4", 5" 7-Segment

Part No.

Digit Size

Common

Anode

BS-AE11RD-A

BS-AE15RD-A

BS-AE15RE-A

BS-AE12RD-A

BS-AE13RD-A

BS-AE14RD-A

BS-AE16RD-A

BS-AE1FRD-A

BS-AG01RD

BS-AG05RD

BS-AG05RE

BS-AG02RD

BS-AG03RD

BS-AG04RD

BS-AG06RD

BS-AG0FRD

Common

Cathode

BS-CE11RD-A

BS-CE15RD-A

BS-CE15RE-A

BS-CE12RD-A

BS-CE13RD-A

BS-CE14RD-A

BS-CE16RD-A

BS-CE1FRD-A

BS-CG01RD

BS-CG05RD

BS-CG05RE

BS-CG02RD

BS-CG03RD

BS-CG04RD

BS-CG06RD

BS-CG0FRD

Chip

Material/Emitted

Color

GaAsP/Red

GaP/ Bright Red

GaP/ Green

GaAsP/GaP/ Yellow

GaAsP/GaP/ Hi-Eff.Red

GaAsP/GaP/ Orange

GaAlAs/ SH Super Red

GaAlAs/ DDH Super Red

GaAsP/Red

GaP/ Bright Red

GaP/ Green

GaAsP/GaP/ Yellow

GaAsP/GaP/ Hi-Eff.Red

GaAsP/GaP/ Orange

GaAlAs/ SH Super Red

GaAlAs/ DDH Super Red

Absolute Maximum

Ratings

Electro-optical

Data(At 10mA)

Drawing

Peak

Vf

Iv. Typ.

No.

Wave

Pd

If

Ifp

λ

(v)

Per.Seg.

Length (nm) (mw) (mA) (mA)

(mcd)

λ

p(nm)

Typ. Max.

655

40 400 40 200 8.5 10.0

8.0

700

568

585

635

660

655

700

568

585

635

660

90

30

35

45

20

40

90

30

35

45

20

200

390

800

375

750

15

30

40

15

30

50

150

200

50

150

11.0 12.5

8.5 12.5

10.0 12.5

16.0 20.0

21.0 25.0

20.0 25.0

19.0 25.0

17.0 25.0

20.0 25.0

9.0

13.0

10.0

13.0

20.0

25.0

15.0

18.0

25.0

20.0

22.0

30.0

40.0

4.00"

Single-Digit

SD-63

5.00"

Single-Digit

SD-64

SD-63

BS- AE1xRD-A

C

SD-64

BS- AG0xRD

C

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

.

w w w . a m e r ica n b r ig h tle d . co m

DSP-26
