GBLA005 thru GBLA10
New Product
Vishay Semiconductors
formerly General Semiconductor
Case Type GBL
0.125 (3.17)
x 45 degrees
Chamfer
0.825 (20.9)
0.815 (20.7)
Glass Passivated Single-Phase
Bridge Rectifiers
Features
0.421 (10.7)
0.411 (10.4)
Reverse Voltage
50 and 1000V
Forward Current
4.0A
0.080 (2.03)
0.060 (1.50)
0.095 (2.41)
0.080 (2.03)
0.098 (2.5)
0.075 (1.9)
0.050 (1.27)
0.040 (1.02)
0.210 (5.3)
0.190 (4.8)
0.040 (1.02)
0.030 (0.76)
0.026 (0.66)
0.020 (0.51)
0.098 (2.5)
0.075 (1.9)
0.718 (18.2)
0.682 (17.3)
Lead Depth
0.022 (0.56)
0.018 (0.46)
• This series is UL listed under the Recognized
Component Index, file number E54214
• Glass passivated chip junction
• High case dielectric strength
• High surge current capability
• Ideal for printed circuit boards
• High temperature soldering guaranteed: 260°C/10 seconds,
0.375 (9.5mm) lead length, 5lbs. (2.3kg) tension
Mechanical Data
Case:
Molded plastic body over passivated junctions
Terminals:
Plated leads solderable per MIL-STD-750,
Method 2026
Mounting Position:
Any
Weight:
0.071 oz., 2.0 g
Epoxy meets UL 94V-0 Flammability
Packaging codes/options:
1/400 ea. per Bulk Tray Stack
Ratings at 25°C ambient temperature unless otherwise specified.
0.140 (3.56)
0.128 (3.25)
Polarity shown on front side of case, positive lead beveled corner.
Dimensions in inches and (millimeters)
Maximum Ratings & Thermal Characteristics
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward
rectified output current at
T
C
= 50°C
Note 1
T
A
= 40°C
Note 2
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
Note 2
Note 1
GBLA GBLA GBLA GBLA GBLA GBLA GBLA
005
01
02
04
06
08
10
Unit
V
V
V
A
A
A
2
sec
°C/W
°C
50
35
50
100
70
100
200
140
200
400
280
400
4.0
3.0
120
60
600
420
600
800
560
800
1000
700
1000
Peak forward surge current single sine-wave
superimposed on rated load (JEDEC Method)
Rating for fusing (t < 8.3ms)
Typical thermal resistance per leg
Operating junction storage and temperature range
R
θJA
R
θJL
T
J,
T
STG
47
10
–55 to +150
Electrical Characteristics
Parameter
Ratings at 25°C ambient temperature unless otherwise specified.
Symbol
V
F
I
R
GBLA GBLA GBLA GBLA GBLA GBLA GBLA
005
01
02
04
06
08
10
Unit
V
µA
Maximum instantaneous forward drop per leg at 4.0A
Maximum DC reverse current at
rated DC blocking voltage per leg
T
A
= 25°C
T
A
= 125°C
1.0
5.0
500
Notes:
(1) Unit mounted on 3.0 x 3.0 x 0.11" thick (7.5 x 7.5 x 0.3cm) Aluminum plate
(2) Unit mounted on P.C.B. at 0.375" (9.5mm) lead length and 0.5 x 0.5" (12 x12mm) copper pads
Document Number 88610
24-Aug-04
www.vishay.com
1
GBLA005 thru GBLA10
Vishay Semiconductors
formerly General Semiconductor
Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)

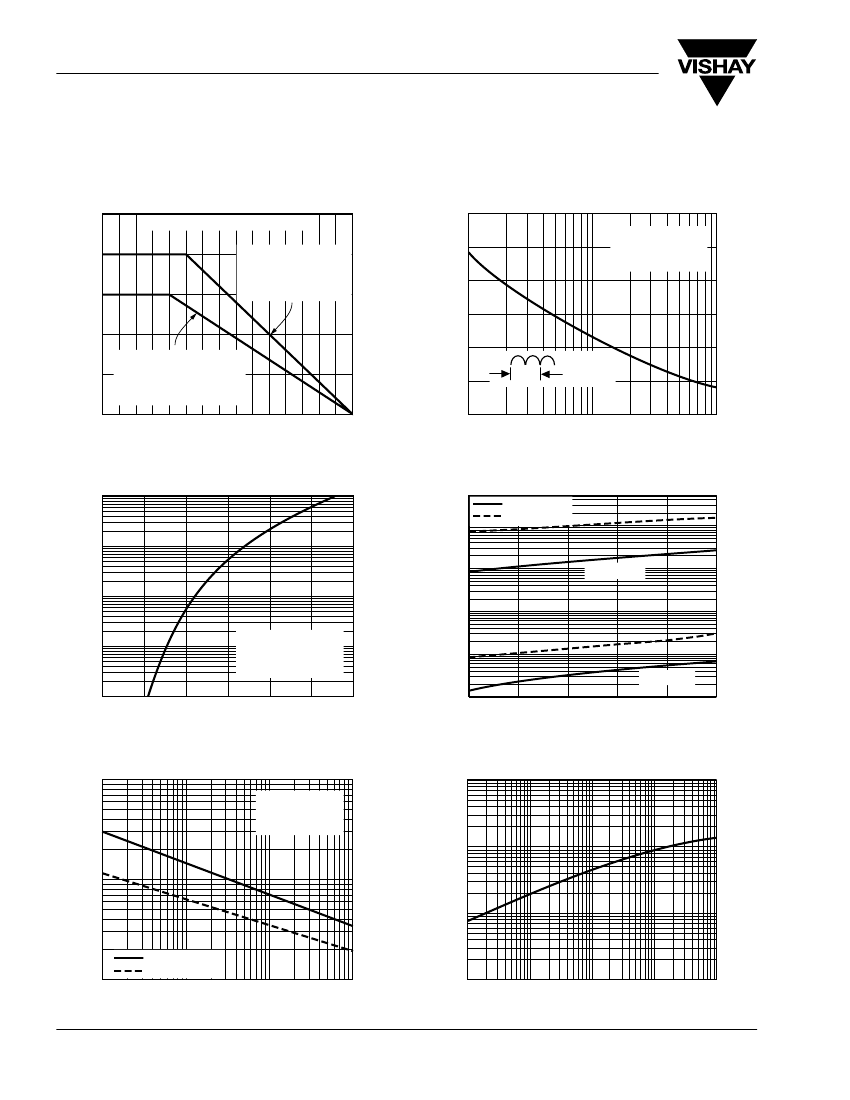

Fig. 1 -- Derating Curves Output
Rectified Current
Average Forward Output Current (A)
5.0
Fig. 2 -- Maximum Non-Repetitive Peak
Forward Surge Current Per Leg
150
Peak Forward Surge Current (A)
60 Hz Resistive or Inductive Load
Heat-Sink Mounting
3.0 x 3.0 x 0.11" Thick
(7.5 x 7.5 x 0.3cm)
Aluminum Plate
4.0
3.0
T
J
= T
J max.
Single Sine-Wave
(JEDEC Method)
100
2.0
P.C.B. Mounting
0.47 x 0.47" (12 x 12mm)
Copper pads with 0.375"
(9.5mm) lead length
50
1.0 Cycle
1.0
0
0
0
50
100
150
1
10
100
Ambient Temperature (°C)
Number of Cycles at 60Hz
Fig. 3 -- Typical Forward Voltage
Characteristics Per Leg
100
500
Fig. 4 -- Typical Reverse Leakage
Characteristics Per Leg
Instantaneous Reverse Current (A)
50 — 400V
600 — 1000V
Instantaneous Forward Current (A)
100
10
10
T
A
= 125°C
1
1
0.1
T
J
= 25°C
Pulse width = 300µs
1% Duty Cycle
0.1
T
A
= 25°C
0.01
0
20
40
60
80
100
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (V)
Fig. 5 -- Typical Junction Capacitance
Per Leg
1,000
Fig. 6 -- Typical Transient Thermal
Impedance Per Leg
Transient Thermal Impedance (°C/W)
100
Junction Capacitance (pF)
T
J
= 25°C
f = 1.0MHz
Vsig = 50mVp-p
10
100
1
10
0.1
50 — 400V
600 — 1000V
1
10
100
0.1
0.01
0.1
1
10
100
Reverse Voltage (V)
www.vishay.com
2
t, Heating Time (sec.)
Document Number 88610
24-Aug-04
