Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> M145026B1

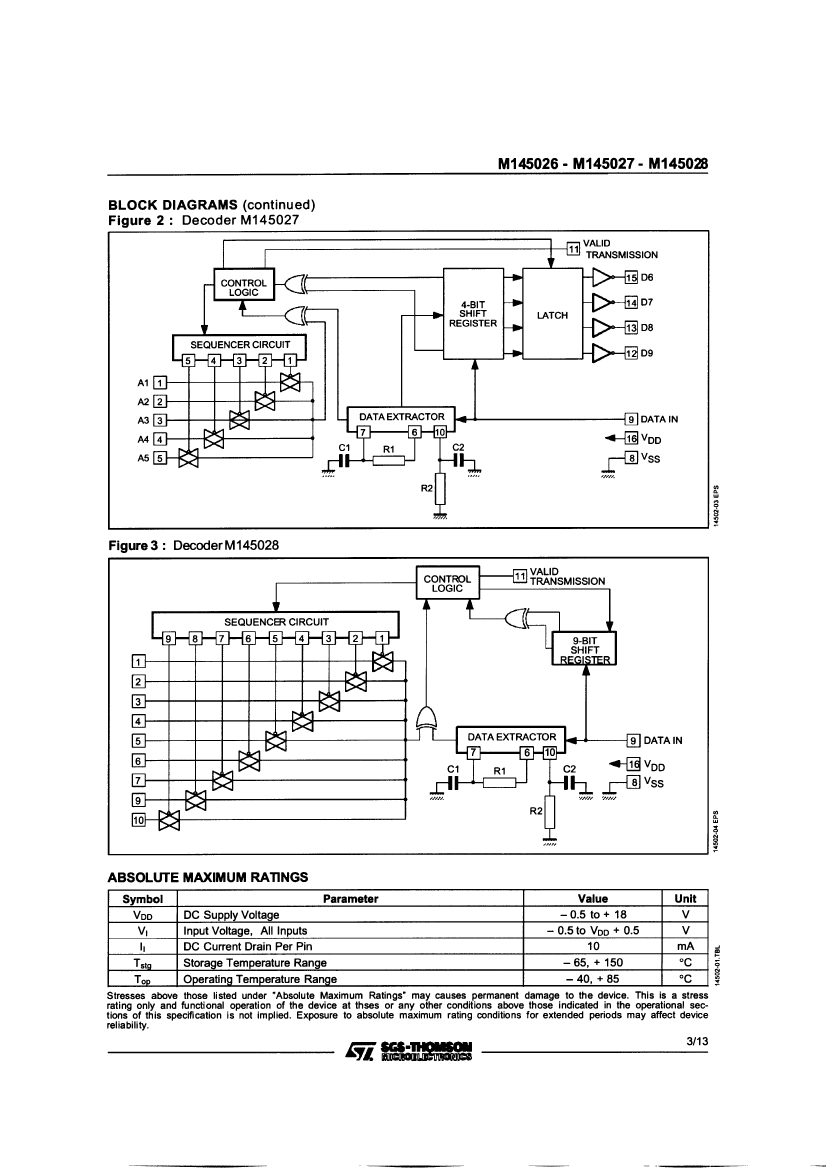

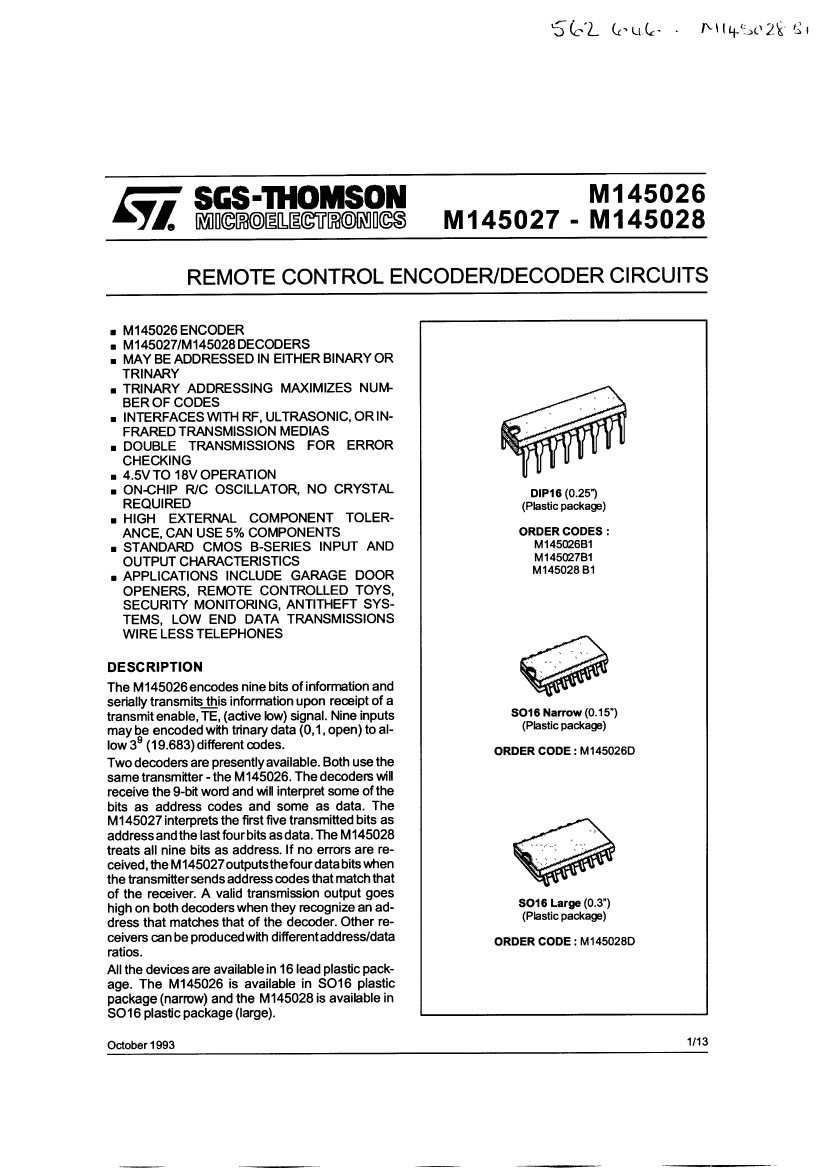

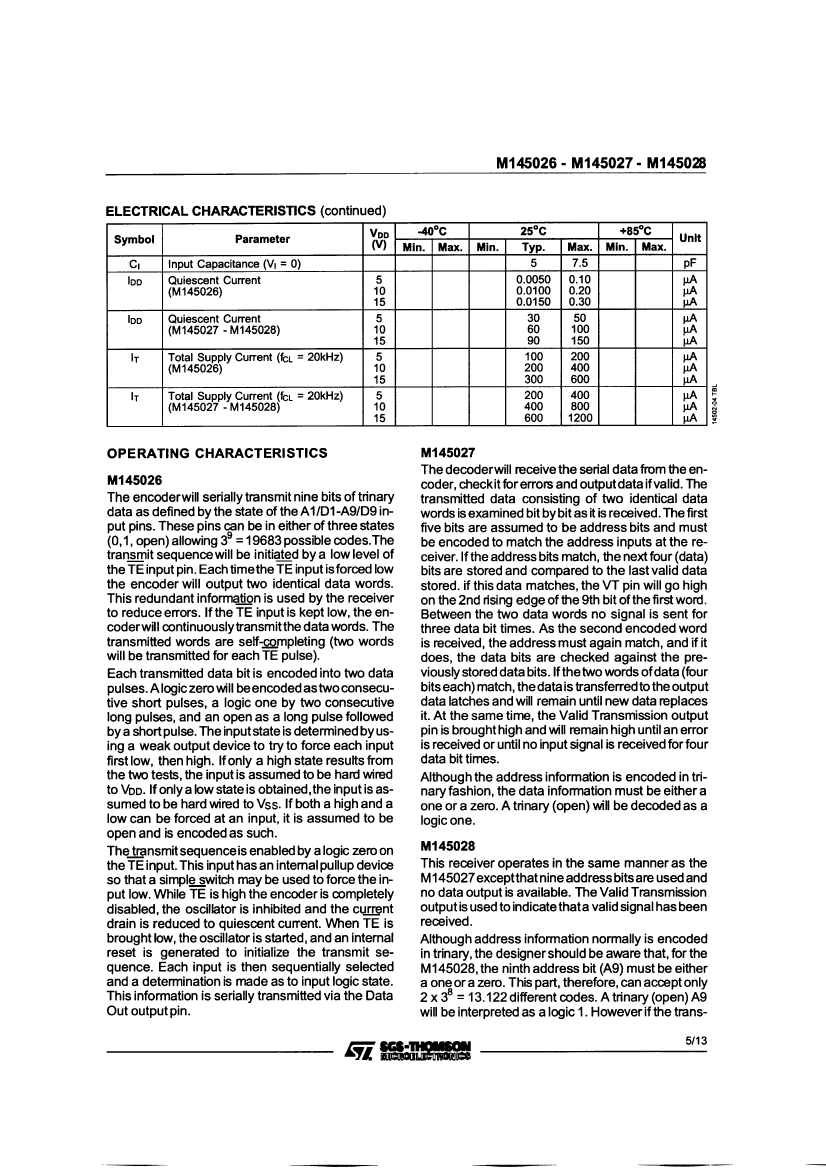

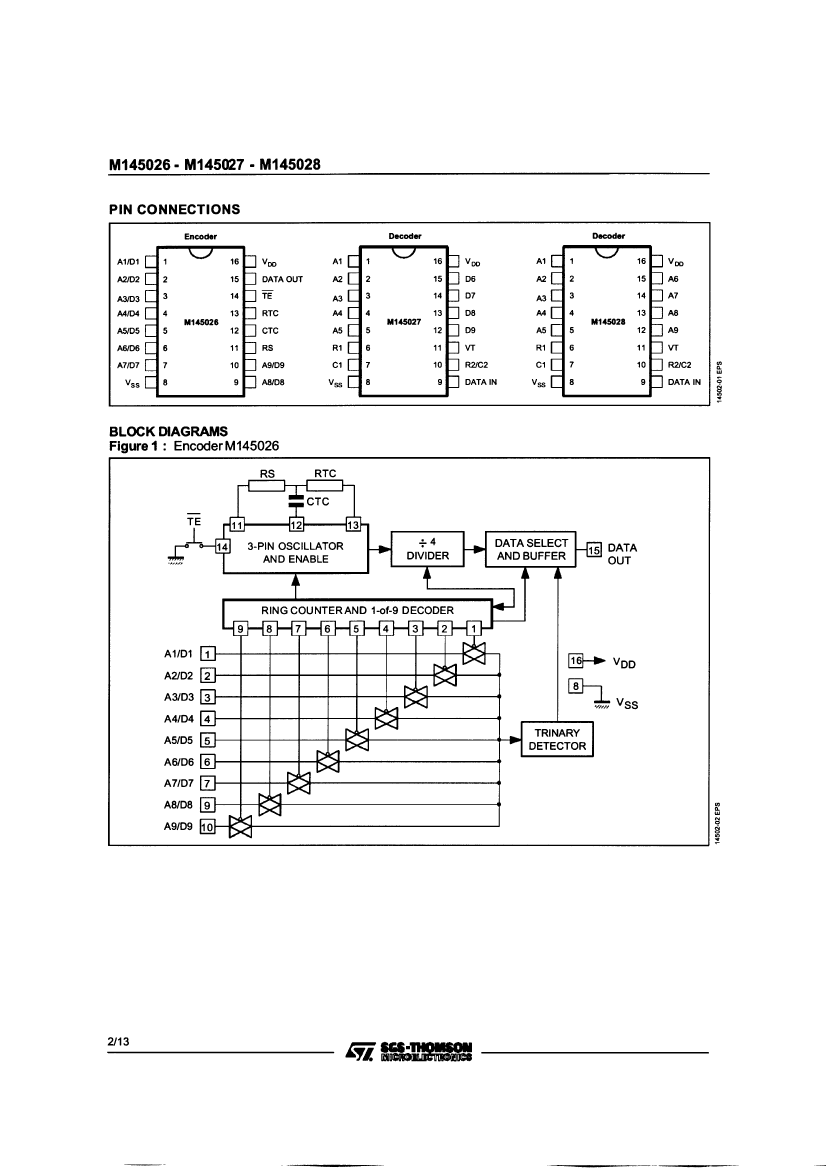

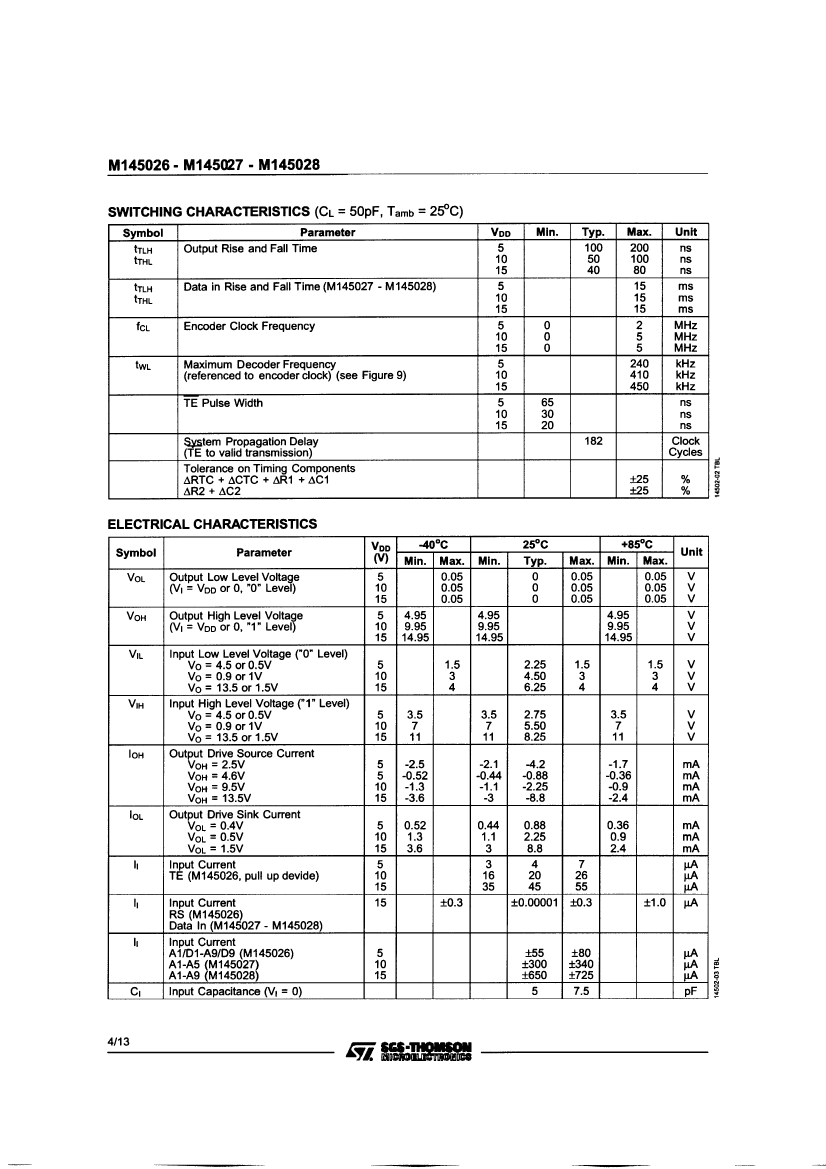

Preview

M145026B1: DescriptionREMOTE CONTROL ENCODER/DECODER CIRCUIT; CategoryOther integrated circuit (IC) Consumption circuit; File Size588KB，13 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M145026B1 Overview

REMOTE CONTROL ENCODER/DECODER CIRCUIT

M145026B1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	0.250 INCH, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	_compli
Is Samacsys	N
Commercial integrated circuit types	TRANSMITTER IC
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	5.1 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transmission media	RF
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

M145026B1 Related Products

	M145026B1	M145028D	M145028B1	M145028	M145027B1	M145027	M145026D	M145026
Description	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT	REMOTE CONTROL ENCODER/DECODER CIRCUIT
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-	incompatible	-
Parts packaging code	DIP	SOIC	DIP	-	DIP	-	SOIC	-
package instruction	0.250 INCH, PLASTIC, DIP-16	SOP,	0.250 INCH, PLASTIC, DIP-16	-	0.250 INCH, PLASTIC, DIP-16	-	SOP, SOP16,.25	-
Contacts	16	16	16	-	16	-	16	-
Reach Compliance Code	_compli	_compli	_compli	-	_compli	-	_compli	-
Commercial integrated circuit types	TRANSMITTER IC	RECEIVER IC	RECEIVER IC	-	RECEIVER IC	-	RECEIVER IC	-
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	-	R-PDIP-T16	-	R-PDSO-G16	-
JESD-609 code	e0	e0	e0	-	e0	-	e0	-
Number of functions	1	1	1	-	1	-	1	-
Number of terminals	16	16	16	-	16	-	16	-
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	-	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-
encapsulated code	DIP	SOP	DIP	-	DIP	-	SOP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	-
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	-	IN-LINE	-	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	-
Maximum seat height	5.1 mm	2.65 mm	5.1 mm	-	5.1 mm	-	1.75 mm	-
Maximum supply voltage (Vsup)	18 V	18 V	18 V	-	18 V	-	18 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	-	4.5 V	-
surface mount	NO	YES	NO	-	NO	-	YES	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	-	INDUSTRIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE	-	GULL WING	-
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	-	1.27 mm	-
Terminal location	DUAL	DUAL	DUAL	-	DUAL	-	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-
transmission media	RF	RF	RF	-	RF	-	RF	-
width	7.62 mm	7.5 mm	7.62 mm	-	7.62 mm	-	3.9 mm	-
