5405-301-011-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5405-301-011-01

5405-301-011-01: DescriptionUSB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerTekcon Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

5405-301-011-01 Overview

USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

5405-301-011-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknown
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.309 inch
subject depth	0.648 inch
body length	0.583 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	50 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	100VAC V
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.4986 mm
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	0.9 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.085 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

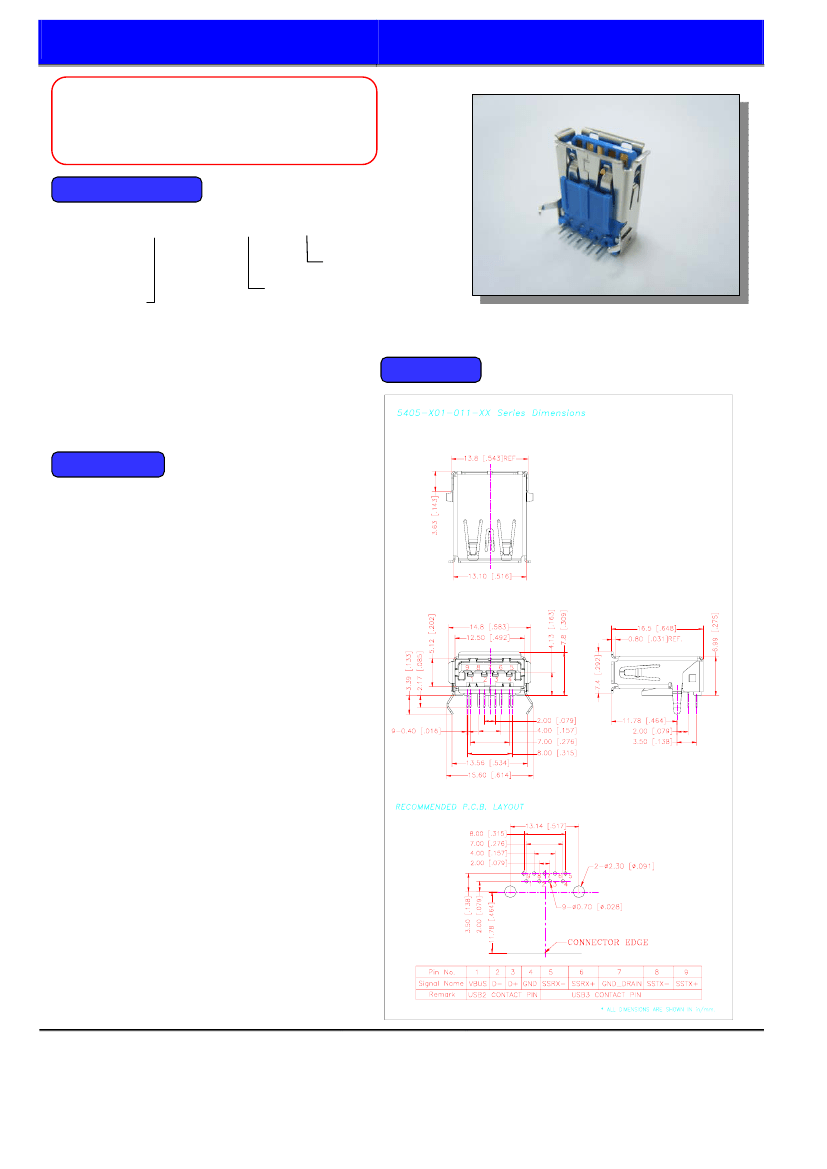

TEKCON

5405 Series

USB 3.0 A TYPE R/A SINGLE PORT DIP

http://www.tekcon.com.tw

Ordering Information

5405 – X01 – 011 – XX

Contact Area Plating

0: Gold Flash/Tin

3: 30u”Gold/Tin

5: 15u”Gold/Tin

S: 15u”Pd/Ni

+Gold Flash /Tin

Q: 30u”Pd/Ni+

+Gold Flash /Tin

01：RoHS

02：Halogen Free

Packing Type:1- Tray

Dimensions

Specification

Material:

♦

Insulator:

Thermoplastic UL 94V-0

Color：Blue

♦

Contact:

Copper Alloy

♦

Shell：Stainless

Steel

Electrical:

♦

Contact Current Rating: 0.9A.

♦

Rated voltage:5V Max.

♦

Dielectric Withstanding Voltage:

100VAC Min.

♦

Contact Resistance:

VBUS and GND contacts: 30 mΩ max.

Other Contacts: 50 mΩ max.

♦

Insulation Resistance:

100 MΩ Min.

Mechanical:

♦

Insertion Force:35N Max.

♦

Withdrawal Fore: 10N Min.

Enviromental:

♦

Temperature range:

-20℃ to + 85℃

All Dimensions are shown in in/mm.

The above ordering data is for our standard products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

5405-301-011-01 Related Products

	5405-301-011-01	5405-501-011-01	5405-501-011-02	5405-301-011-02	5405-001-011-01	5405-001-011-02	5405-Q01-011-02	5405-S01-011-01	5405-S01-011-02
Description	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	0.309 inch	0.309 inch	0.309 inch	0.309 inch	0.309 inch	0.309 inch	0.309 inch	0.309 inch	0.309 inch
subject depth	0.648 inch	0.648 inch	0.648 inch	0.648 inch	0.648 inch	0.648 inch	0.648 inch	0.648 inch	0.648 inch
body length	0.583 inch	0.583 inch	0.583 inch	0.583 inch	0.583 inch	0.583 inch	0.583 inch	0.583 inch	0.583 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT
Dielectric withstand voltage	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm
Plating thickness	30u inch	15u inch	15u inch	30u inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	9	9	9	9	9	9	9	9
Maker	Tekcon Electronics Corp	Tekcon Electronics Corp	-	Tekcon Electronics Corp	Tekcon Electronics Corp	Tekcon Electronics Corp	-	-	-
Number of ports	1	1	-	1	1	1	1	1	1
Base Number Matches	1	1	1	1	1	-	-	-	-
