Model S03B700W1
Hybrid Couplers
3 dB, 90°
Description
The S03B700W1 is a low profile 3 dB hybrid coupler in an easy to use
surface mount package covering 400 to 1000MHz. The S03B700W1
is ideal for balanced amplifiers and signal distribution and can be
used in very high power designs. Parts have been run through rigor-
ous qualifications and units are 100% tested. They are manufactured
using materials with X and Y thermal expansion coefficients compat-
ible with common substrates.
Surface Mount Components
Features
•
•
•
•
•
•
•
•
•
400 - 1000 MHz
100 Watts
Low Loss
High Isolation
90° Quadrature
Surface Mountable
Tape and Reel
Convenient Package
100% Tested
Electrical Specifications
Frequency
MHz
400 - 1000
Amp. Bal.
dB Max
±0.65
Isolation
dB Min
20
Phase Bal.
Degrees Max
3
Insert. Loss
dB Max
0.25
Temp.
°C
-55 to +85
VSWR
Max: 1
1.25
Power
Avg. CW Watts
100

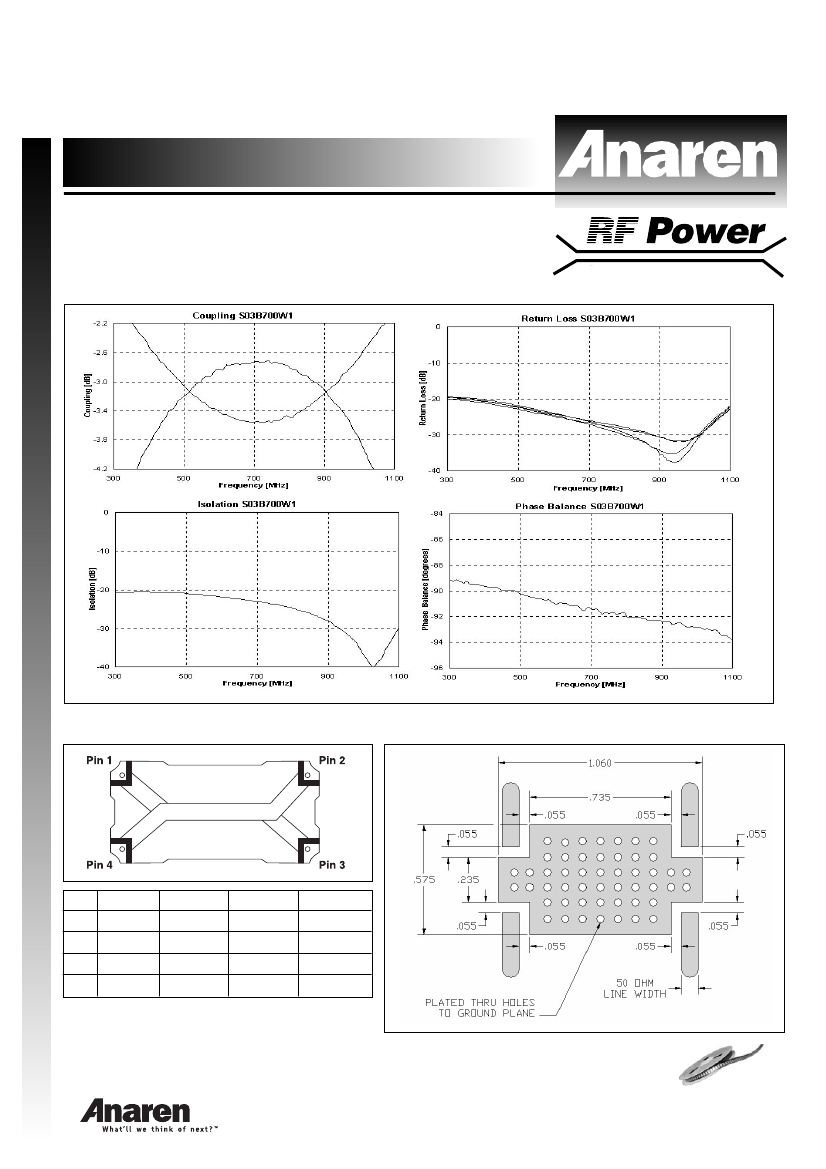

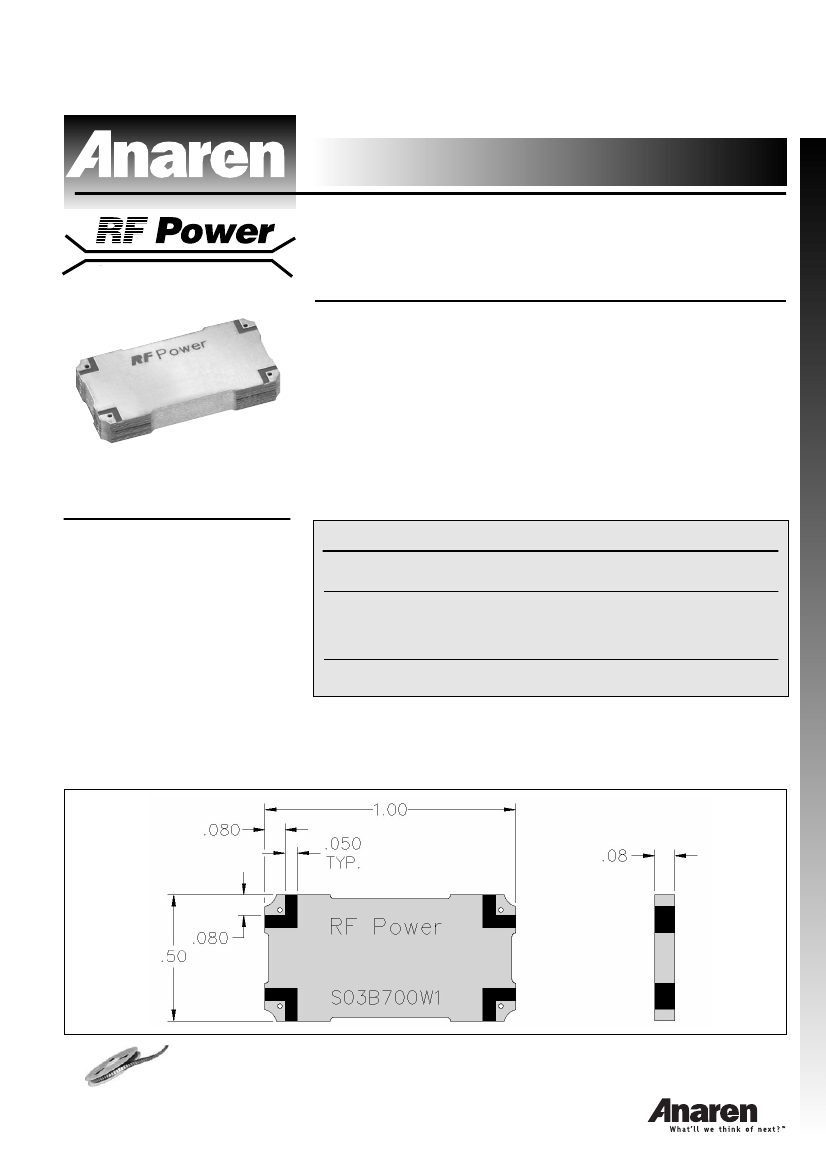

Outline Drawing
VER. 2/7/02
Available on Tape and Reel for Pick and Place Manufacturing.
