Datasheet> All Categories > Discrete semiconductor> diode> BZX85C3V0

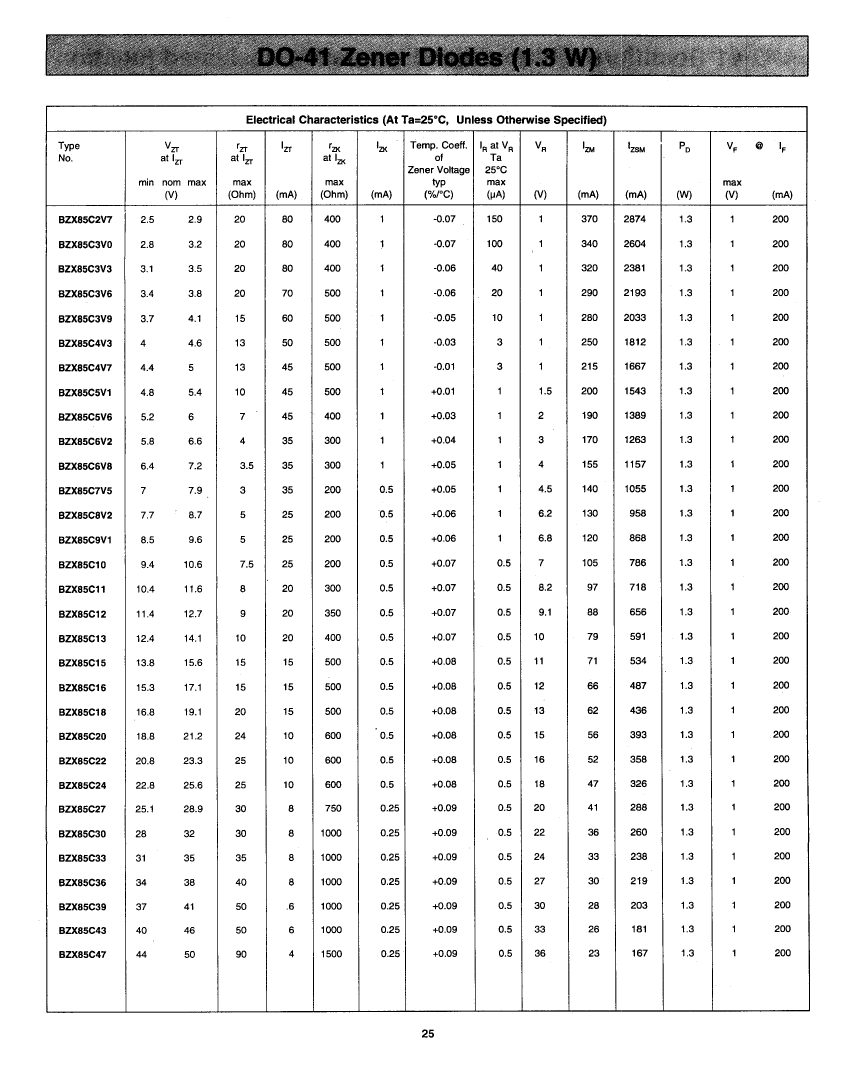

Preview

BZX85C3V0: DescriptionZener Diode, 3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41; CategoryDiscrete semiconductor diode; File Size101KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]; Environmental Compliance

Download Datasheet Parametric Compare View All

BZX85C3V0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZX85C3V0	-	-	View	Buy Now

BZX85C3V0 Overview

Zener Diode, 3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41

BZX85C3V0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	O-LALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	20 Ω
JEDEC-95 code	DO-41
JESD-30 code	O-LALF-W2
Maximum knee impedance	400 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Certification status	Not Qualified
Nominal reference voltage	3 V
Maximum reverse current	100 µA
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Voltage temperatureCoeff-Max
Maximum voltage tolerance	5%
Working test current	80 mA
Base Number Matches	1

Preview

Download Datasheet

View All

BZX85C3V0 Related Products

	BZX85C3V0	BZX85C47	BZX85C2V7	BZX85C4V7	BZX85C6V2	BZX85C4V3
Description	Zener Diode, 3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41	Zener Diode, 47V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 2.7V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41	Zener Diode, 4.7V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 6.2V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 4.3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	20 Ω	90 Ω	20 Ω	13 Ω	4 Ω	13 Ω
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum knee impedance	400 Ω	1500 Ω	400 Ω	500 Ω	300 Ω	500 Ω
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	200 °C	150 °C	200 °C	200 °C	200 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1.3 W	1.3 W	1.3 W	1.3 W	1.3 W	1.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	3 V	47 V	2.7 V	4.7 V	6.2 V	4.3 V
Maximum reverse current	100 µA	0.5 µA	150 µA	3 µA	1 µA	3 µA
surface mount	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%
Working test current	80 mA	4 mA	80 mA	45 mA	35 mA	50 mA
Base Number Matches	1	1	1	1	1	1
