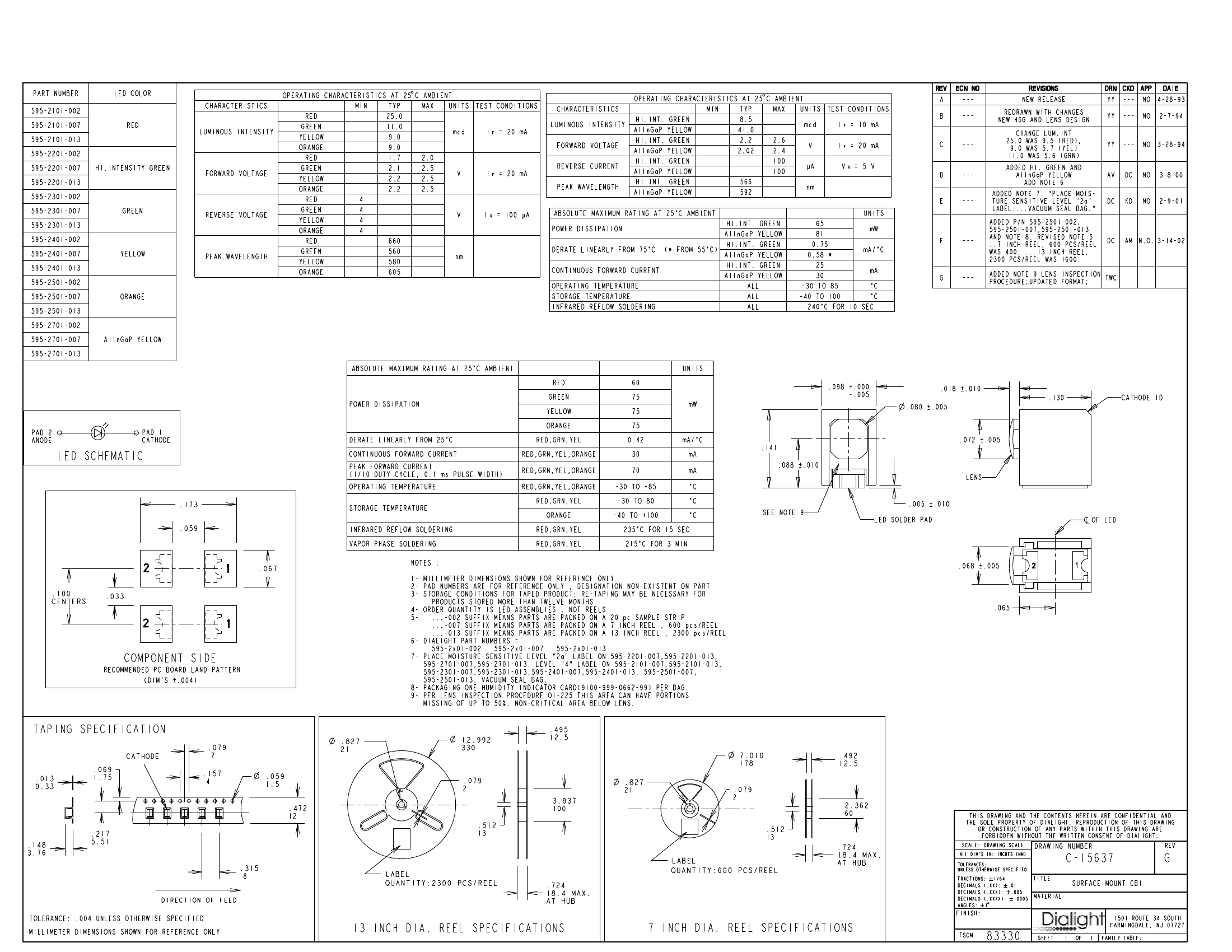

595-2101013: DescriptionSingle Color LED, Red, 1.83mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size163KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

595-2101013 Overview

Single Color LED, Red, 1.83mm, SURFACE MOUNT PACKAGE-2

595-2101013 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant
Other features	SUPPORTS INFRARED
color	RED
color@wavelength	Orange-Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2 V
JESD-609 code	e0
minimum luminous intensity	40 cd
Nominal luminous intensity	25.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	3.58 mm
method of packing	TAPE AND REEL 13\"
peak wavelength	660 nm
shape	EDGE VIEWED RECTANGULAR
size	1.83 mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.96 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

595-2101013 Related Products

	595-2101013	595-2401013	595-2301007	595-2501-007	595-2101007	595-2501-002	595-2301013	595-2401007	595-2501-013
Description	Single Color LED, Red, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Green, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Orange, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Orange, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Green, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, 1.83mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Orange, 1.83mm, SURFACE MOUNT PACKAGE-2
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	RED	YELLOW	GREEN	ORANGE	RED	ORANGE	GREEN	YELLOW	ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Nominal luminous intensity	25.0 mcd	9.0 mcd	11.0 mcd	9.0 mcd	25.0 mcd	9.0 mcd	11.0 mcd	9.0 mcd	9.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	3.58 mm	3.58 mm	3.58 mm	3.58 mm	3.58 mm	3.58 mm	3.58 mm	3.58 mm	3.58 mm
method of packing	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	STRIP	TAPE AND REEL 13\"	TAPE AND REEL 7\"	TAPE AND REEL 13\"
peak wavelength	660 nm	580 nm	560 nm	605 nm	660 nm	605 nm	560 nm	580 nm	605 nm
shape	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR	EDGE VIEWED RECTANGULAR
size	1.83 mm	1.83 mm	1.83 mm	1.83 mm	1.83 mm	1.83 mm	1.83 mm	1.83 mm	1.83 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.96 mm	2.96 mm	2.96 mm	2.96 mm	2.96 mm	2.96 mm	2.96 mm	2.96 mm	2.96 mm
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	-	SUPPORTS INFRARED	-	SUPPORTS INFRARED	SUPPORTS INFRARED	-
color@wavelength	Orange-Red	Yellow	Green	-	Red	-	Green	Yellow	-
Maximum forward voltage	2 V	2.5 V	2.5 V	-	2 V	-	2.5 V	2.5 V	-
minimum luminous intensity	40 cd	40 cd	40 cd	-	40 cd	-	40 cd	40 cd	-
perspective	20 deg	20 deg	20 deg	-	20 deg	-	20 deg	20 deg	-
Base Number Matches	1	1	1	1	1	1	1	1	-
