R585.353.210 datasheet, PDF - EEWORLD Datasheet

R585.353.210: DescriptionRF Coaxial Relay, DP3T, Latched, 0.16A (Coil), 28VDC (Coil), 4480mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size99KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

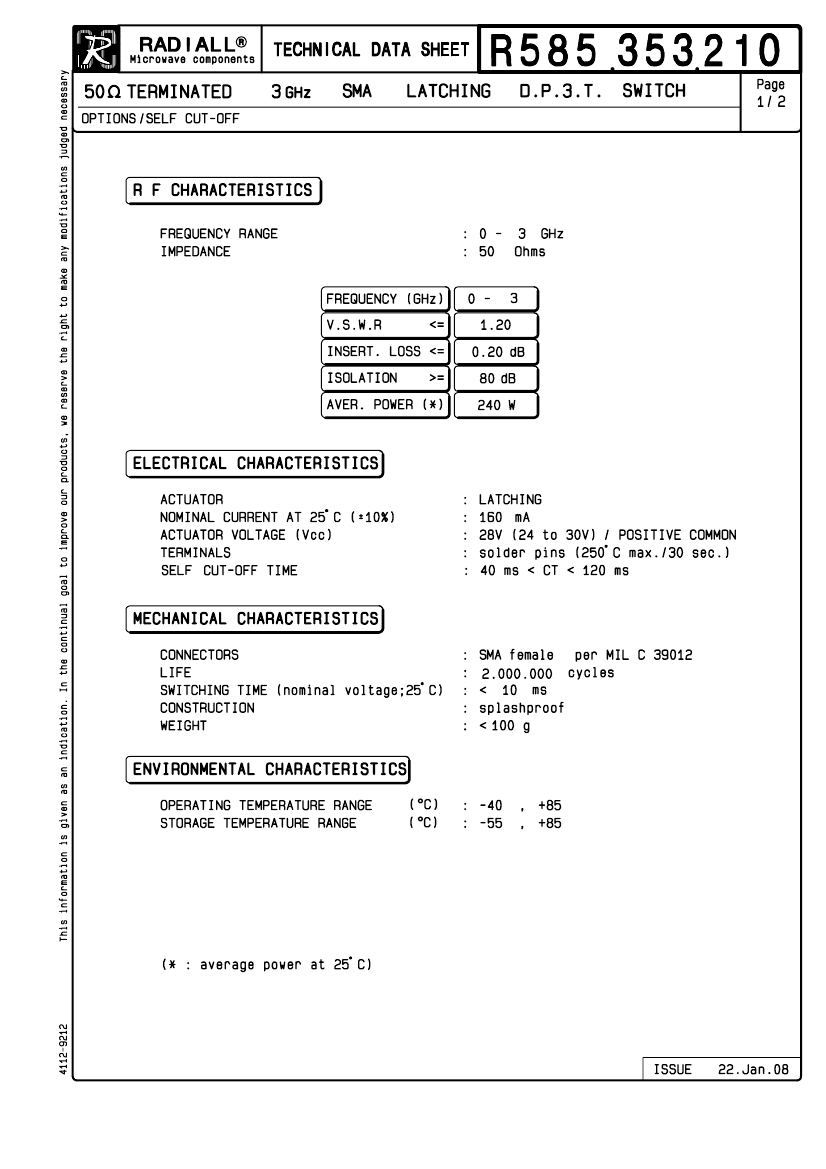

R585.353.210 Overview

RF Coaxial Relay, DP3T, Latched, 0.16A (Coil), 28VDC (Coil), 4480mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days
body width	14.2 mm
body height	47.5 mm
Body length or diameter	55.6 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.16 A
Coil power	4480 mW
Coil resistance	175 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum insertion loss	0.2 dB
Maximum isolation	80 dB
Manufacturer's serial number	R585.353.210
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

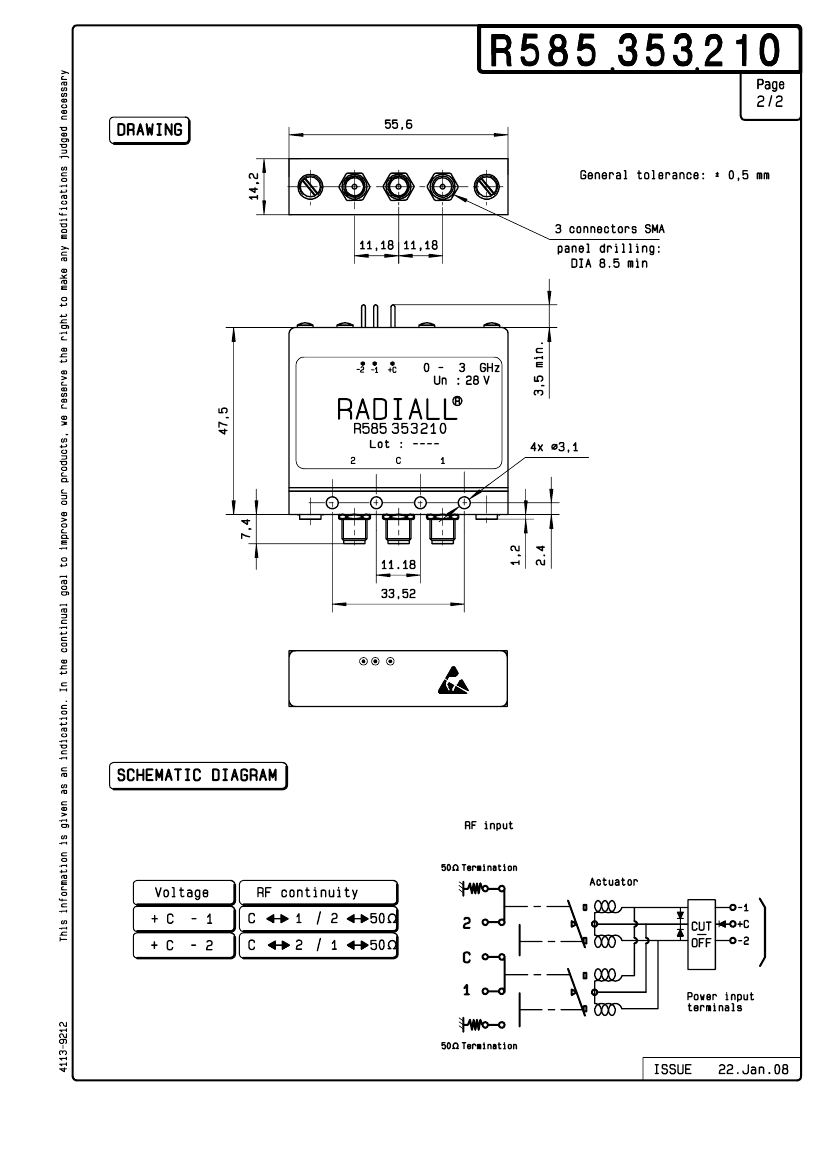

physical size	55.6mm X 14.2mm X 47.5mm
Relay action	LATCHED
Relay function	DP3T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	10 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.2
Base Number Matches	1
