32-1123: DescriptionRF/Microwave Termination, 0MHz Min, 2000MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size91KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric Compare View All

32-1123 Overview

RF/Microwave Termination, 0MHz Min, 2000MHz Max, 50ohm

32-1123 Parametric

Parameter Name	Attribute value
Maker	EMC Technology RF Labs
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	55.44 dBm
JESD-609 code	e3
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	TIN
Maximum voltage standing wave ratio	1.55
Base Number Matches	1

Preview

Download Datasheet

View All

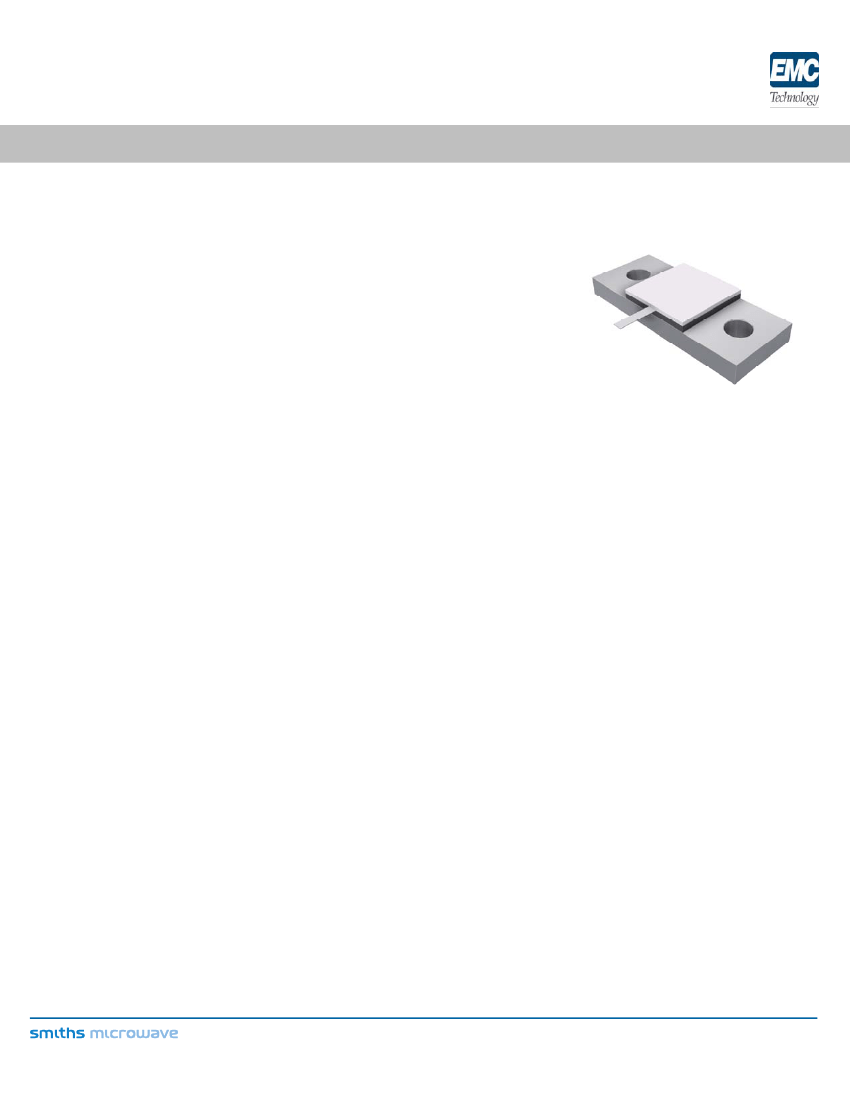

TERMINATION

FLANGE MOUNT 350 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 32-1123

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 32-1123

EN 13-3519

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount terminations worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

32-1123

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

VSWR:

Input Power CW:

Peak Power:

DC Resistance:

50 ohms

DC - 2.0 GHz

DC - 1.0 GHz 1.15:1 Max

1.0 - 2.0 GHz 1.55:1 Max

350 Watts @ 100°C heat sink, derated linearly to zero power and 150°C

3500 Watts (based on 10us pulse width and 1% duty cycle)

50

Ω

±5%

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM /

˚C

max

3.0 MARKING

Unit Marking:

Logo and Part Number, legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Visual and Mechanical Inspection:

DC Resistance Check:

Data Retention:

Per 824W107

100% DC Resistance Check

Standard

5.0 PACKAGING

Standard Packaging:

Tray Packaging

Form 423F101

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
