560168-3: DescriptionCONNECTOR, 14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

560168-3 Overview

CONNECTOR, 14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT

560168-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	560168
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

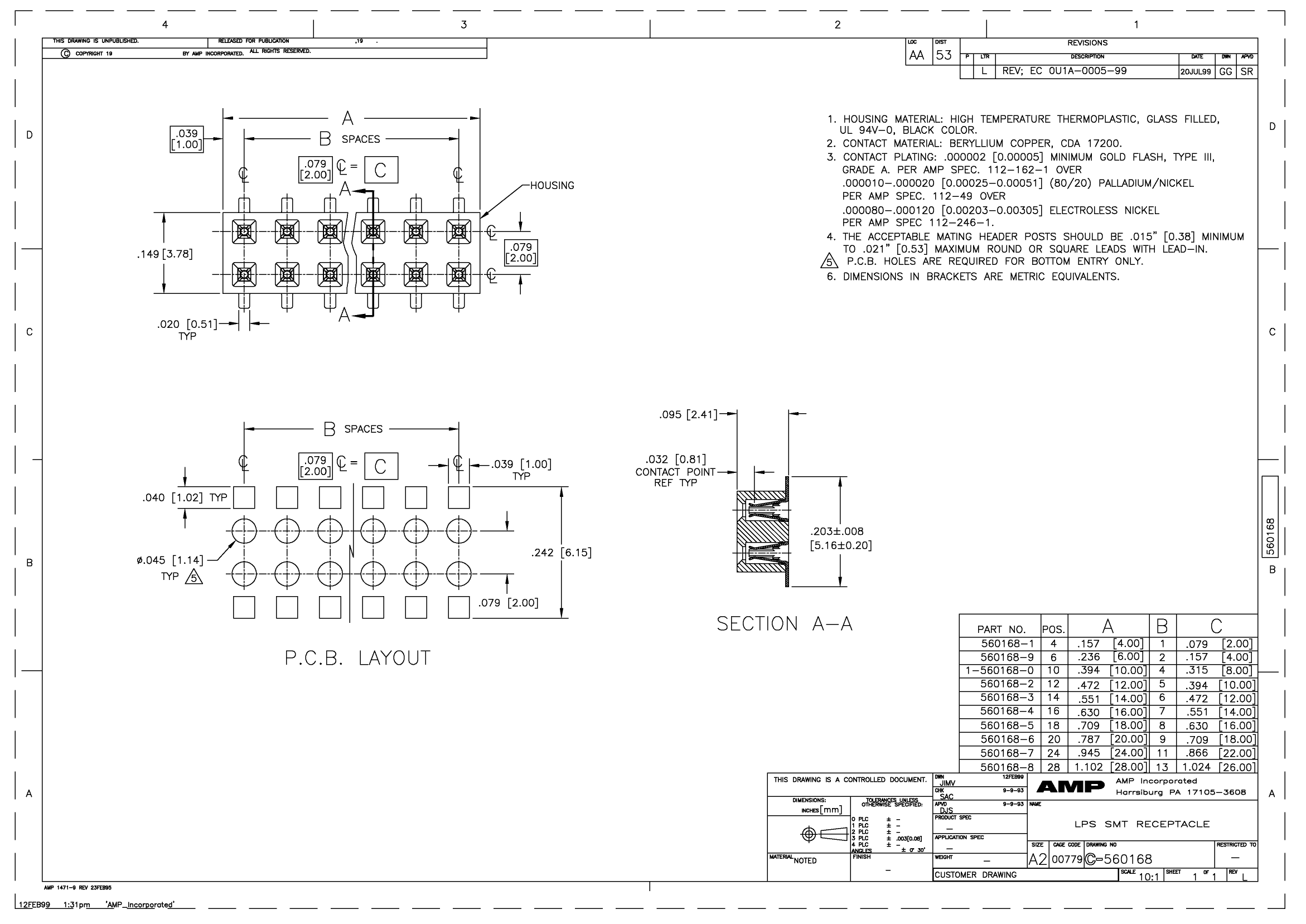

Preview

Download Datasheet

View All

560168-3 Related Products

	560168-3	560168-5	560168-8	560168-4	560168-1	560168-6	560168-9
Description	CONNECTOR, 14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 18 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 28 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 4 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	6 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	560168	560168	560168	560168	560168	560168	560168
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	14	18	28	16	4	20	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Contact to complete cooperation	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	-
Contact completed and terminated	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	-
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	-
JESD-609 code	e4	e4	e4	e4	e4	e4	-
Maker	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-
