Z100-0511-7151-Z: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size390KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

Z100-0511-7151-Z Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

Z100-0511-7151-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	LOCATING POSTS
body width	0.071 inch
subject depth	0.169 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	Z100
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

W

-

Standard = 1.8 mm; Can Also be Offered as 2.2 mm

Contact SMP Technology for Part Number.

H

-

Standard = 1.35 mm; Can Also be Offered as 1.0 mm

Contact SMP Technology for Part Number.

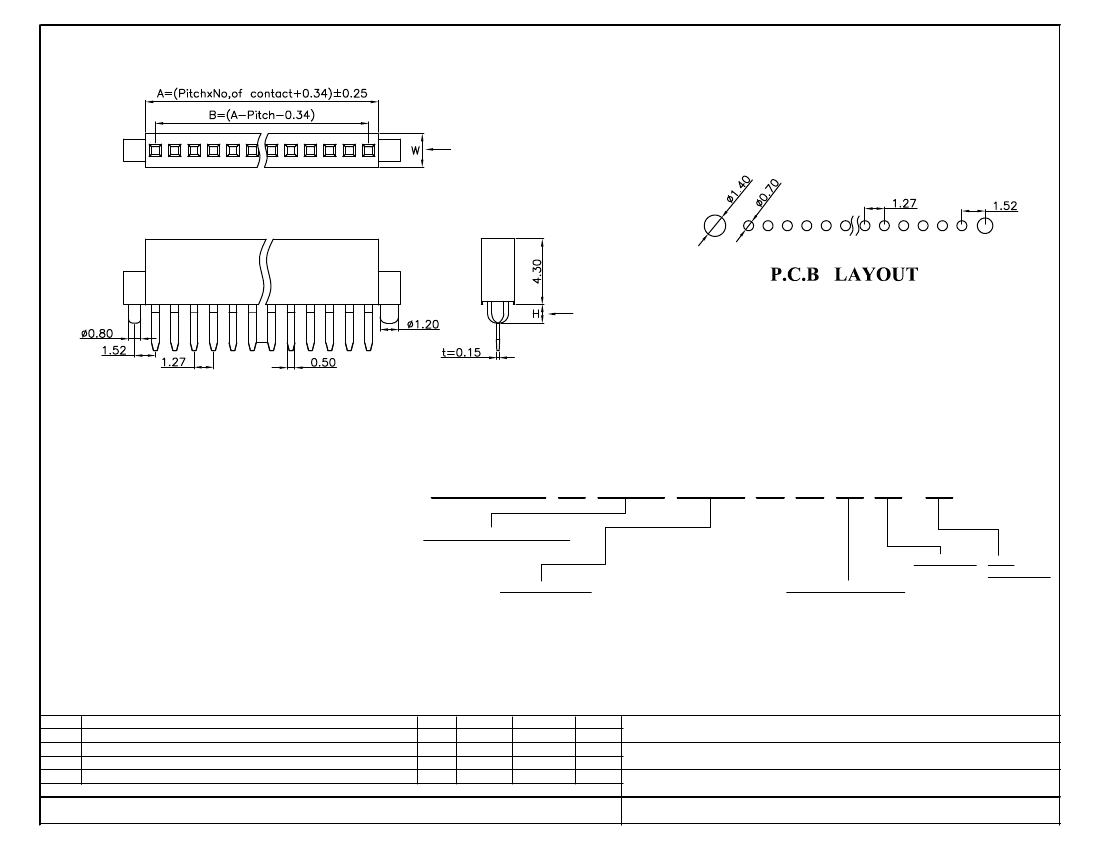

DIMENSION NUMBER: 0

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

< 30 Milliohm Max.

INSULATION RESISTANCE:

> 5000 Megaohm Min.

DIELECTRIC WITHSTANDING VOLTAGE:

600V (rms) AC for 1 Minute

OPERATING TEMPERATURE: -55ºC to +105ºC

HOW TO ORDER:

Z

1

0

-

X

1

-

7

1

X

-

Z

NUMBER OF CONTACTS:

01 thru 98 (A0=100)

PACKAGING:

1 - Tube

TYPE NUMBER:

SEE TYPE NUMBER

CONTACT PLATING:

0 - TIN

1 - GOLD FLASH

3 - 10u" GOLD

4 - 15u" GOLD

5 - 30u" GOLD

7 - 10u" ON CONTACT AREA

8 - 15u" ON CONTACT AREA

9 - 30u" ON CONTACT AREA

RoHS

COMPLIANT

MATERIAL:

INSULATOR: High Temperature Thermoplastic UL94V-0

(Nylon 6T)

CONTACT: High Strength Copper Alloys

MECHANICAL:

Rev

0

SOLDERABILITY: Per MIL-STD-202F Method 208D

Issued

Drawn Checked

S.M.

B.S.

Approved Date

S.M.

10/5/07

SMP TECHNOLOGY, INC.

Stacking Receptacle Assembly, 1.27mm Pitch, Single Row, Top Entry,

Thru Hole, with Mounting Ears, 4.3mm Height

TOL. DEC.

.X +/- 0.50

.XX +/- 0.20

.XXX +/- 0.10

ANGLE +/-

UNIT: mm

SERIES: Z100-XX11-71XX-Z

Pg: 1

Z100-0511-7151-Z Related Products

	Z100-0511-7151-Z	Z100-0211-7141-Z	Z100-0511-7141-Z	Z100-0511-7131-Z	Z100-0311-7131-Z	Z100-0311-7141-Z	Z100-0311-7151-Z	Z100-0811-7151-Z	Z100-0911-7141-Z
Description	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch
subject depth	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	Z100	Z100	Z100	Z100	Z100	Z100	Z100	Z100	Z100
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	15u inch	15u inch	10u inch	10u inch	15u inch	30u inch	30u inch	15u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	2	5	5	3	3	3	8	9
Maker	SMP Technology Inc.	-	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.
