SURE-SEAL/Mini SURE-SEAL
Standard Data
Materials and finishes
Plug and receptacle
Contacts, stamped
Contacts, machined
Perbunan or
Nitril-Butadien rubber
Copper alloy, tin plate
Copper alloy, hard silver plate
Durability
Semi-automatic or hand crimpable
1 thru 10 inclusive
Stepped plane positive
polarization and visual polarization
35 N minimum
From rear with simple hand tool,
or simultaneous insertion of
multiple crimped contacts with
semi-automatic insertion machine
Humidity
Dry heat
Vibration
Shock
Salt spray
Test Criteria
Sealing capability
Weather, ozone and
ultra violet resistance
Industrial gas
IP 67 acc. to DIN 40050
In accordance with ASTM D-1149
(100 pphm) and ASTM D–1171
(outdoor exposure)
Equivalent to MIL-C-23216,
para 4.6.13
50 cycles mating and unmating
In accordance with MIL-STD-202D,
Method 101 D and DIN 400046, part 11
95% at 95º C/1000 hours
105º C for 1000 hours
10 to 55 Hz, .06” DA, 1 hour,
X and Y planes
50 g, 11ms, 30 cycles,
X and Y planes
Mechanical Data
Crimp contacts
Contact positions
Polarization
Contact retention
Contact insertion
Max. operating
temperature acc. to
DIN IEC 68, part 1
Electrical Data Mini SURE-SEAL
–40/105º C
Contact resistance
10 Milliohms max.
100 Mohms min.
Electrical Data SURE-SEAL
Contact resistance
Insulation resistance
Dielectric withstanding
voltage
Wire range
Wire insulation
Sealing range
Insulation stripping
length
10 Milliohms max.
100 Mohms min.
1200 VAC at sea level
0,75–1.5 mm
2
(AWG 18—14)
0,50–1,0 mm
2
(AWG 20—16)
2,4–3,3 resp. 1,8–2,8 mmØ
3,9–4,7 mm
Insulation resistance
Dielectric withstanding
voltage
1200 VAC at sea level
Wire range
Wire insulation
sealing range
Insulation stripping
length
0,4–0,75 mm
2
(AWG 20—18)
1,4–1,8 mmØ
3,0–3,3 mm
Current rating - SURE-SEAL
I
(A)
Current rating - Mini SURE-SEAL
I
(A)
18
A
16
14
15
20
20
15
12
1)
2)
1)
10
Current Load
10
10
8
6
5
2)
5
4
2
0
0
10
20
30
40
50
60
70
80
90
100
ºC
CE4599
1
10
30
50
70
90
110
130
†
1
10
30
50
70
90
110
130
†
110
Temperature
20
40
60
80
100
120
(ºC)
20
40
60
80
100
120
(ºC)
Connector fully equipped
Individual contact in the connector
1) APK -_ _ 10_07-0,75qmm*
2) APK -_ _ 10_07-0,35qmm*
Dimensions shown in mm
Specifications and dimensions subject to change
www.ittcannon.com
5
SURE-SEAL
Receptacle
Pin
6
1
1
2
2
3
3
2
4
2
3
4
5
1
2
3
5
4
1
2
3
7
6
5
4
7
6
5
4
8
1
2
3
7
9
6
5
4
3
6
5
8
1
2
7
9
10
4
3
8
Socket
1
2
1
1
1 contacts
2 contacts
3 contacts
4 contacts
5 contacts
6 contacts
7 contacts
8 contacts
9 contacts
10 contacts

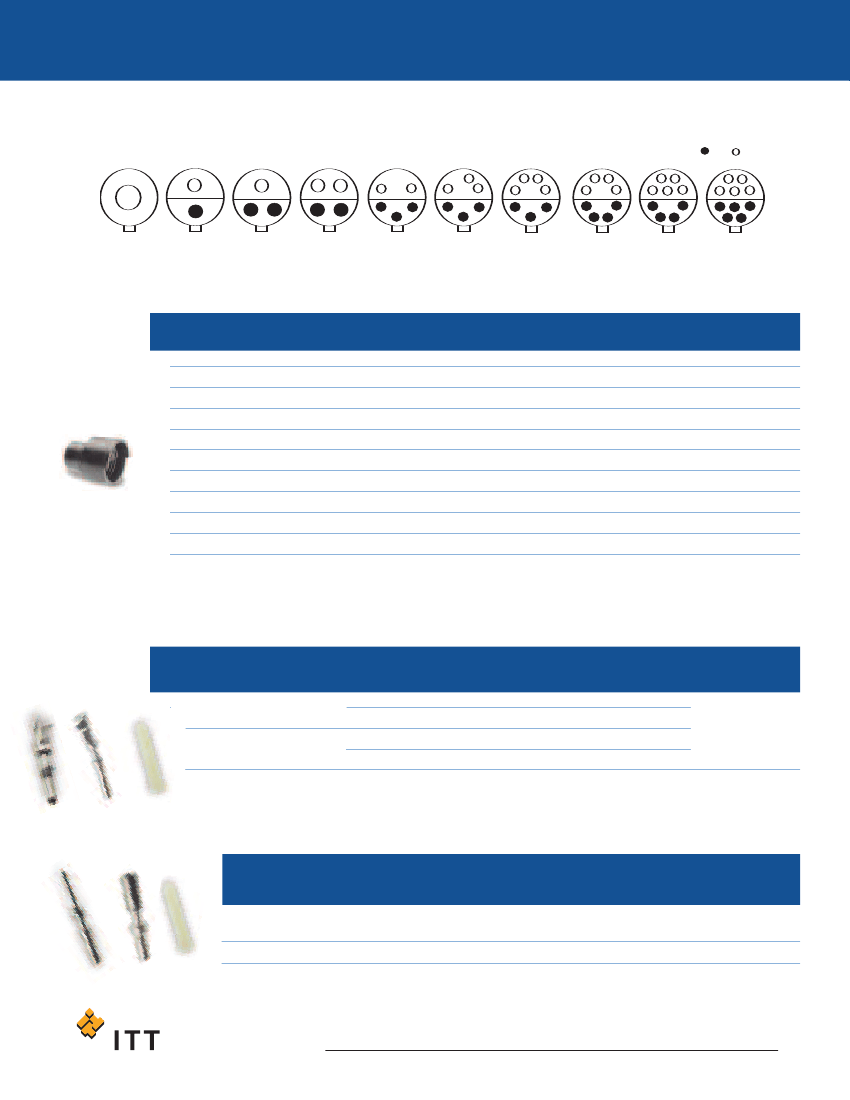

Contact Arrangements
Part Numbers
Receptacle
No. of contacts
1
2
3
4
5
6
7
8
9
10
Shell size
SS1R
SS2R
SS3R
SS4R
SS5R
SS6R
SS7R
SS8R
SS9R
SS10R
black
120-1833-000*
120-8551-000
120-8551-001
120-8551-002
120-8551-005
120-8551-006
120-8551-007
120-8551-308
120-8551-309
120-8551-310
120-8551-010
120-8551-011
120-8551-012
120-8551-015
120-8551-016
120-8551-017
120-8551-020
120-8551-021
120-8551-022
120-8551-025
120-8551-026
120-8551-027
120-8551-030
120-8551-031
120-8551-032
120-8551-035
120-8551-036
120-8551-037
red
green
yellow
*) cable entry 2,4 — 3,3 mm Ø (all others 1,8 – 2,8 mm Ø)
Contacts, stamped
with insulation support
SURE-SEAL 0,5–1,0 mm
2
SURE-SEAL 0,75–1,5 mm
2
individual
on reels, 5000 pcs.
individual
on reels, 5000 pcs.
Pins
330-8672-001
SS121348-20
330-8672-000
SS121348-10
Sockets
031-8703-001
SS121347-20
225-0093-000
031-8703-000
SS121347-10
Wire hole fillers
Pin
Socket
Wire hole filler *
* Wire hole fillers are inserted into unused cavities instead of a contact in order to create a watertight sealing.
Contacts, machined
without insulation support
fillers
SURE-SEAL 0,5–1,0 mm
2
SURE-SEAL 0,75–1,5 mm
2
Pin
Socket
Wire hole filler *
330-8672-002
330-8672-003
031-8703-050
031-8703-051
225-0093-000
Pins
Sockets
Wire hole
* Wire hole fillers are inserted into unused cavities instead of a contact in order to create a watertight sealing.
Dimensions shown in mm
Specifications and dimensions subject to change
8
www.ittcannon.com
