33SMA-MMBX-50-1/119NE

Description
MALE-FEMALE, RF STRAIGHT ADAPTER, PLUG-JACK
CategoryThe connector    The connector
File Size49KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

33SMA-MMBX-50-1/119NE Overview

MALE-FEMALE, RF STRAIGHT ADAPTER, PLUG-JACK

33SMA-MMBX-50-1/119NE Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Adapter typeMMBX-SMA
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-FEMALE
Coupling typeSNAP-THREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial numberBETWEEN
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.47
Base Number Matches1
HUBER+SUHNER
®

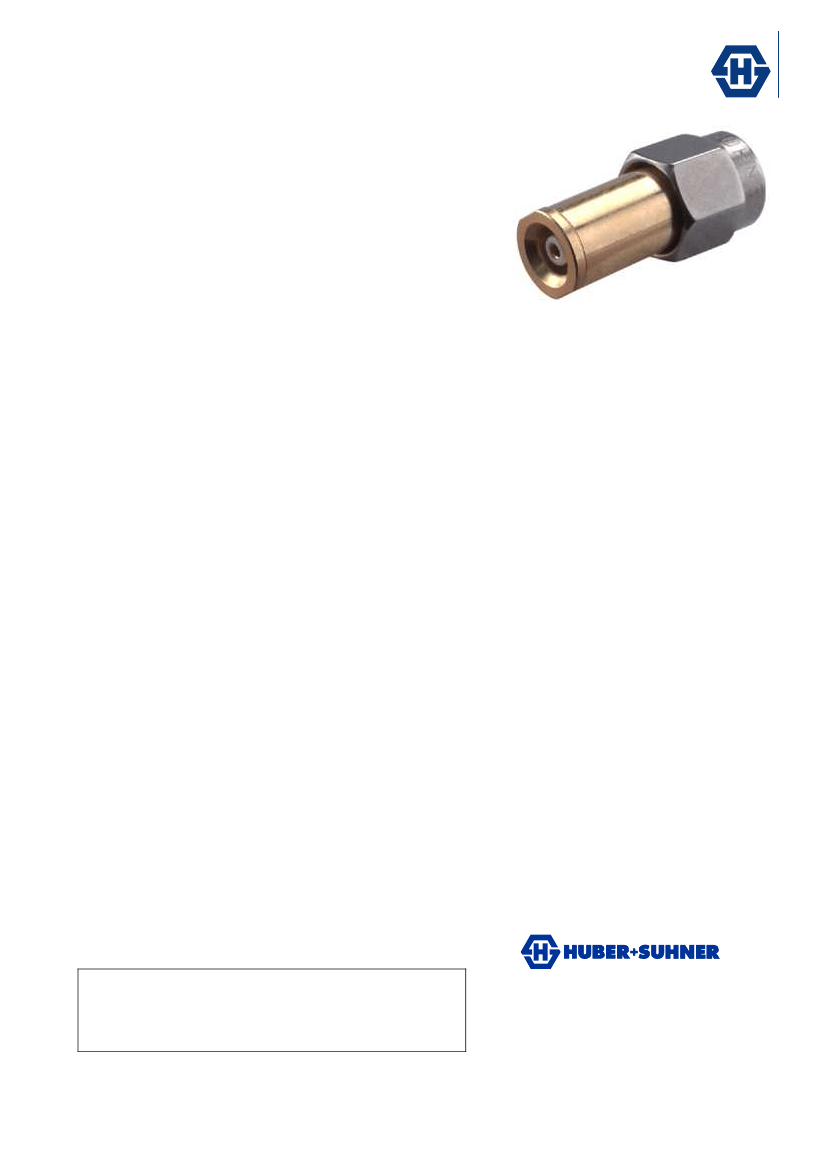

DATA SHEET
Between Series Adapter: 33_SMA-MMBX-50-1/119_N
Description
Rev.: C
Adaptor plug/jack
SMA plug (male) / MMBX jack (female)
Interface standards
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50
6 GHz
DC to 2.5 GHz
≥ 32 dB
500
0.0039 kg
-55 °C to 155 °C
compliant
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
Stainless Steel
Material
Copper Beryllium Alloy
Brass
Brass
LCP
DOU-00013970
33_SMA-MMBX-50-1/119_NE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPRO Plating
SUCOPRO Plating
Passivated (Plating)
Surface Plating
Gold Plating (Nickel underplated)
SUCOPRO Plating
SUCOPRO Plating
Mechanical Data
Number of matings
Weight
2.5 to 6 GHz
≥ 30 dB
6 to 12.4 GHz
≥ 16 dB
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
(SMA)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Parts
(MMBX)
Centre contact
Outer contact
Body
Insulator
Outline drawing
Single package
Material Data
Related Documents
Ordering Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000194769 L
Issued: 15.07.08
Uncontrolled Copy
Page 1/1
