11DQ20-T3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 11DQ20-T3

11DQ20-T3: DescriptionRectifier Diode, Schottky, 1 Element, 1A, Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size233KB，4 Pages; ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.

Download Datasheet Parametric Compare View All

11DQ20-T3 Overview

Rectifier Diode, Schottky, 1 Element, 1A, Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN

11DQ20-T3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

Technical Data

Data Sheet

2854,

Rev. A

11DQ20

•

• • • !"

•

# $ "% " "

$ &" % "" # " &" " "

& "

" "

#( "

)" # " " & "!

*" " & + , &&

25.4(1.00) MIN

(2 PLCS)

CATHODE BAND

5.21 (0.205)

4.06 (0.160)

CATHODE

1.27(0.050) MAX

FLASH(2 PLCS)

0.864 (0.034)

0.71 (0.028) DIA

(2 PLCS)

ANODE

2.70(0.106)

2.00(0.079) DIA

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•

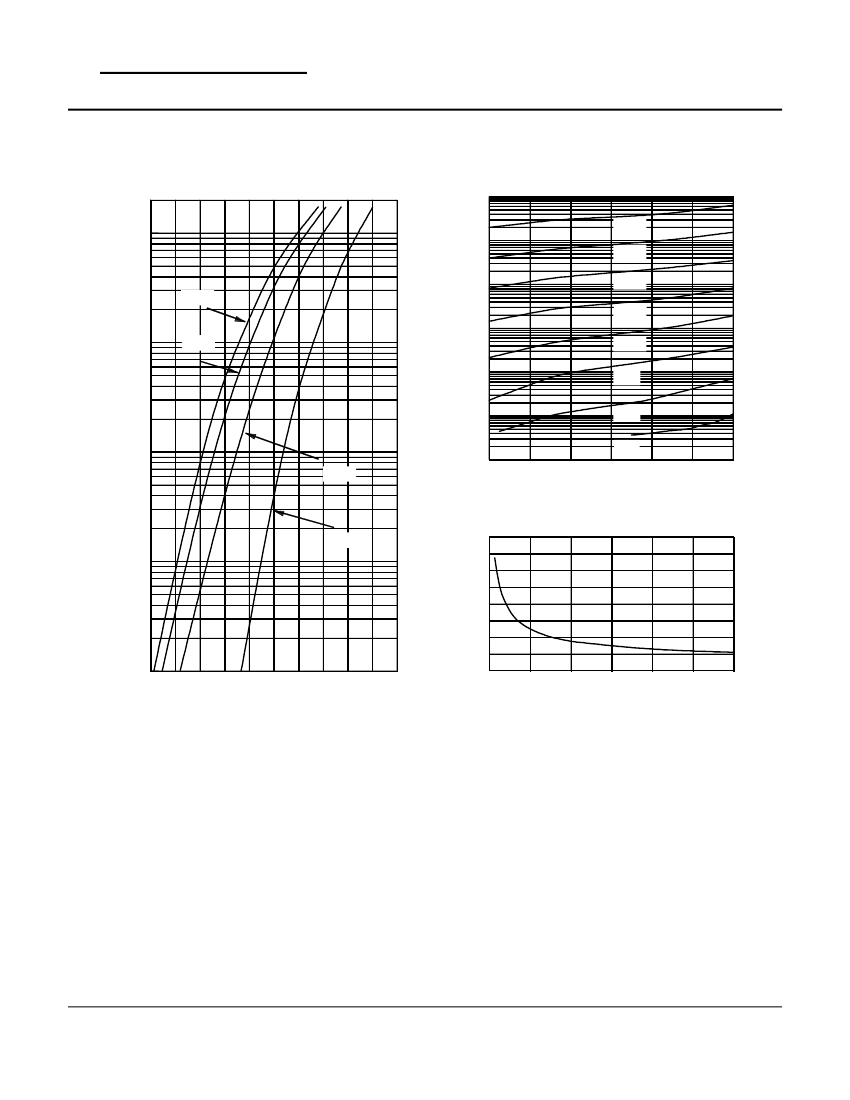

SENSITRON

SEMICONDUCTOR

Data Sheet

2854,

Rev. A

11DQ20

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to improve

product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest

version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed writ ten permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•

11DQ20-T3 Related Products

	11DQ20-T3	11DQ20
Description	Rectifier Diode, Schottky, 1 Element, 1A, Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN
Is it Rohs certified?	incompatible	incompatible
package instruction	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	compli
Other features	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-204AL	DO-204AL
JESD-30 code	O-PALF-W2	O-PALF-W2
Number of components	1	1
Number of terminals	2	2
Maximum output current	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
