DS1501YS datasheet, PDF - EEWORLD Datasheet

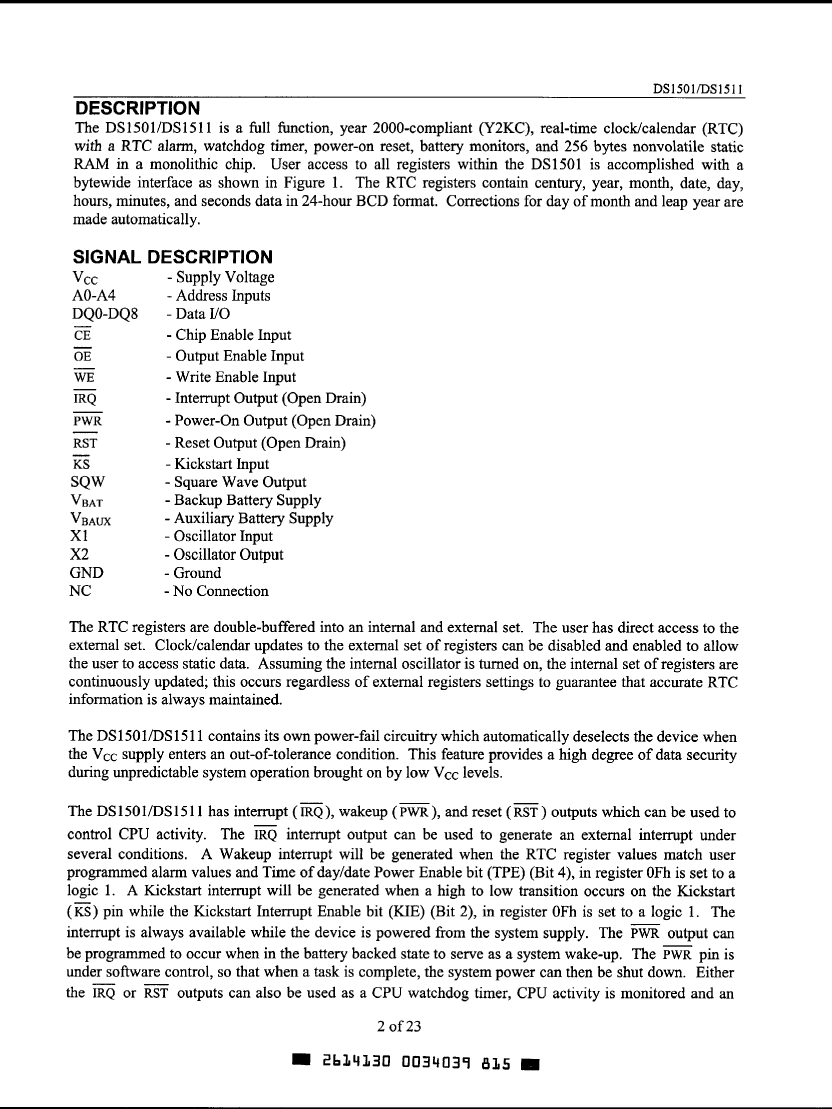

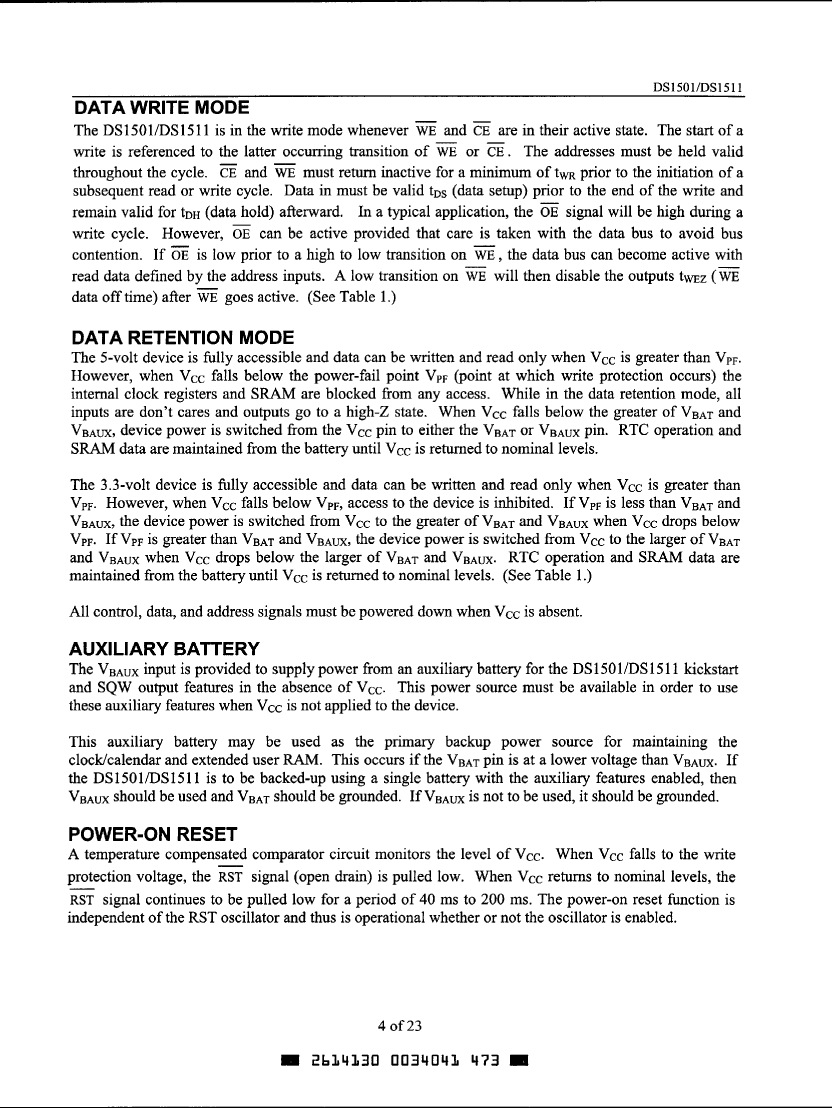

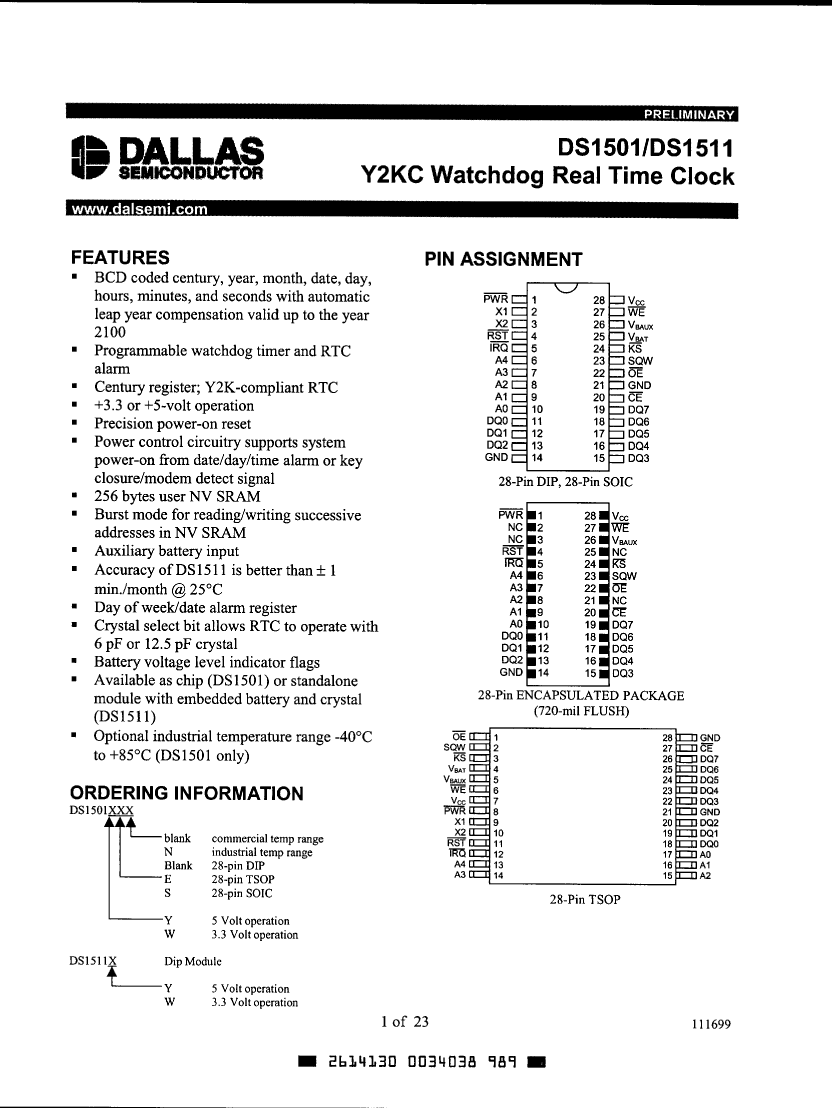

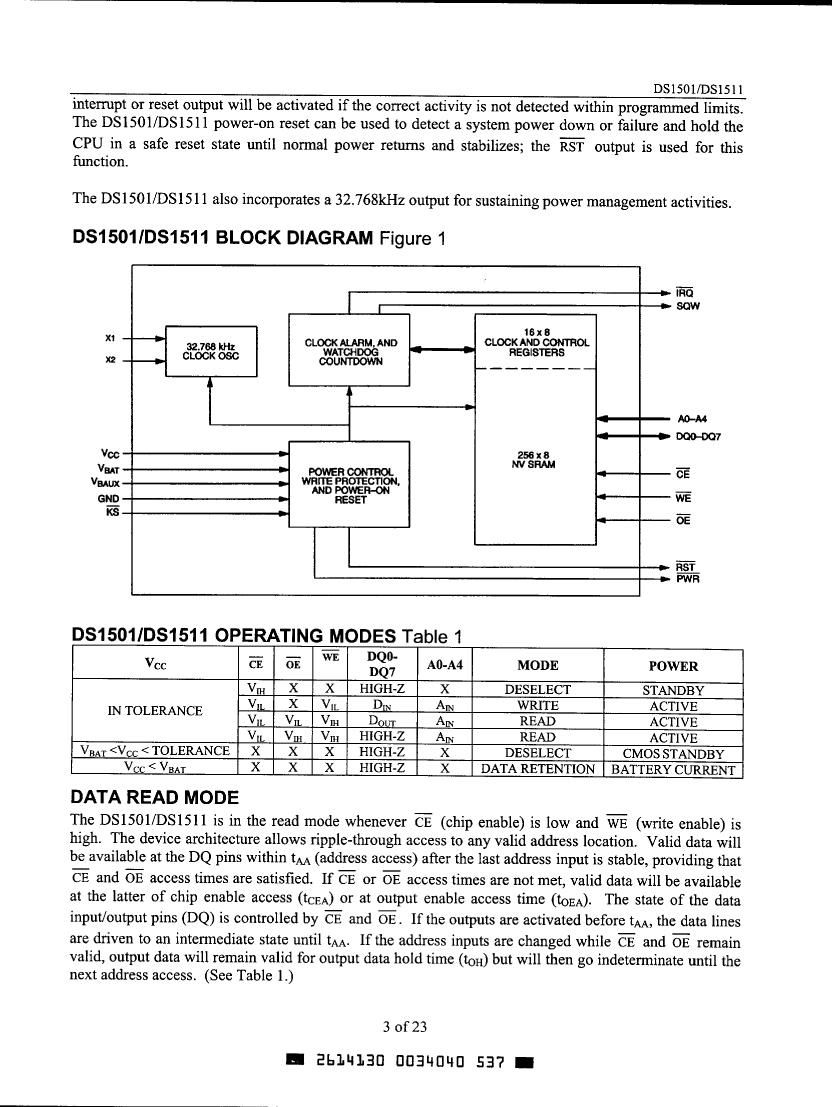

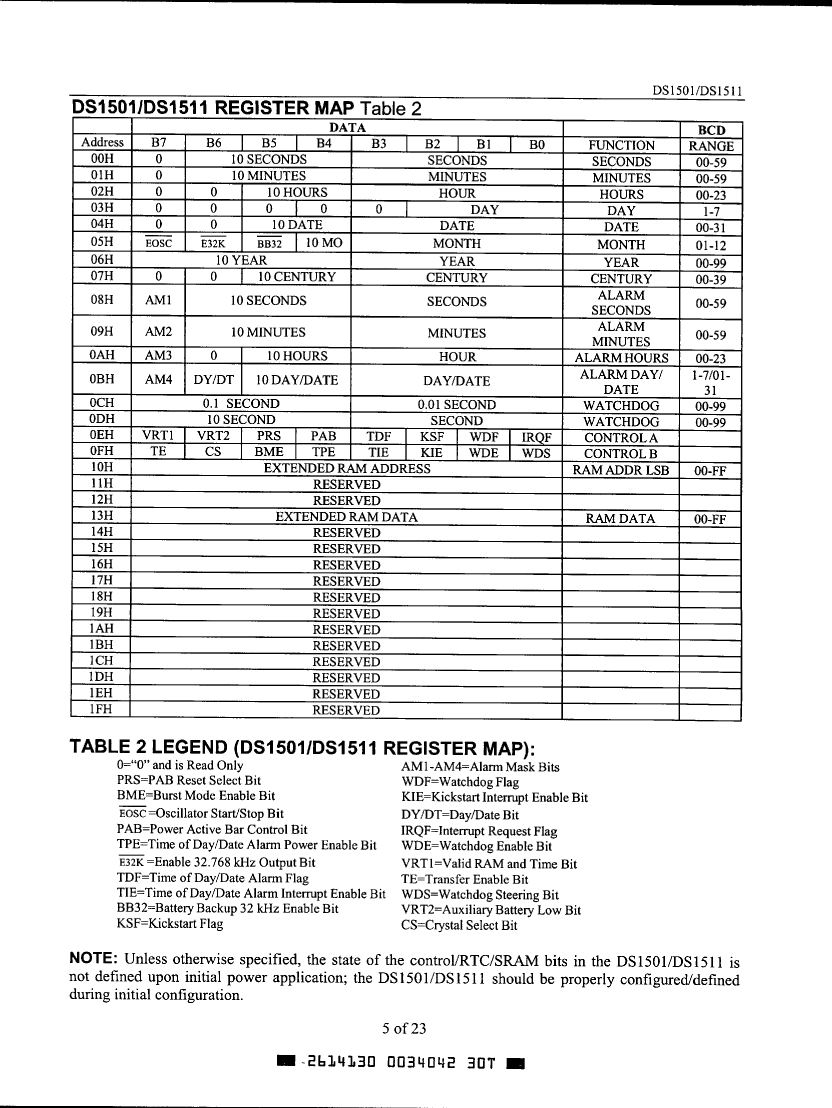

DS1501YS: DescriptionReal Time Clock, Volatile, 1 Timer(s), CMOS, PDSO28, 0.720 INCH, PLASTIC, SOIC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，23 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1501YS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS1501YS	-	-	View	Buy Now

Real Time Clock, Volatile, 1 Timer(s), CMOS, PDSO28, 0.720 INCH, PLASTIC, SOIC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
package instruction	0.720 INCH, PLASTIC, SOIC-28
Reach Compliance Code	unknown
maximum clock frequency	0.032 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
interrupt capability	Y
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Number of terminals	28
Number of timers	1
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.45
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
shortest time	SECONDS
Volatile	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK
Base Number Matches	1

	DS1501YS	DS1501WS
Description	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDSO28, 0.720 INCH, PLASTIC, SOIC-28	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDSO28, 0.720 INCH, PLASTIC, SOIC-28
Is it Rohs certified?	incompatible	incompatible
package instruction	0.720 INCH, PLASTIC, SOIC-28	0.720 INCH, PLASTIC, SOIC-28
Reach Compliance Code	unknown	unknown
maximum clock frequency	0.032 MHz	0.032 MHz
External data bus width	8	8
Information access methods	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS
interrupt capability	Y	Y
JESD-30 code	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0
Number of terminals	28	28
Number of timers	1	1
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP28,.45	SOP28,.45
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	3.3 V
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	3.63 V
Minimum supply voltage	4.5 V	2.97 V
Nominal supply voltage	5 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
shortest time	SECONDS	SECONDS
Volatile	YES	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Base Number Matches	1	1
