1.97
1.09
0.43
0.41
0.139 REF
"A" REF
CABLE HOLE
SEE TABLE
CABLE CLAMP
(SLEEVE TERMINAL)
0.047 REF
THRU HOLE
RING
TERMINAL
0.06
0.34
0.22
A
A
0.30
0.56
HANDLE & TUBULAR INSLUATOR
SHIPPED UNASSEMBLED
PART NUMBER
35HDLBAU
M6 X 0.5
THREAD
0.08
35HDLBAUS
35HDLBN
35HDLBNS
35HDLNAU
35HDLNAUS
35HDLNN
35HDLNNS
1.94
HANDLE FINISH
BLACK MATTE
BLACK MATTE
BLACK MATTE
BLACK MATTE
NICKEL PLATED
NICKEL PLATED
NICKEL PLATED
NICKEL PLATED
PLUG FINISH
GOLD PLATED
GOLD PLATED
TIN PLATED
TIN PLATED
GOLD PLATED
GOLD PLATED
TIN PLATED
TIN PLATED
"A" REF
CABLE HOLE
0.290
0.175
0.290
0.175
0.290
0.175
0.290
0.175
NOTES:
1. SPECIFICATIONS:
CONTACT RESISTANCE: 20 MILIOHMS MAX.
DIELECTRIC WITHSTANDING VOLTAGE - 250 VAC MIN
INSULATION RESISTANCE @ 500 VDC - 2,000 MEGAOHMS MIN
MAX WORKING VOLTAGE - 250 VAC, 140VDC
CURRENT CARRY @ WORKING VOLTAGE - 4 AMPS
INSERT / WITHDRAWAL FORCE - TYPICAL 2.5/2 LBS
TEMPERATURE RANGE: -20°C TO 85°C (OPERATING)
THERMAL SHOCK - MIL-STD-202, METHOD 107G
VIBRATION - MIL-STD-202, METHOD 201
LIFE - 5,000 CYCLES
2. MATERIALS:
PLUG BODY, TIP ROD & RING - COPPER ALLOY, TIN OR GOLD PLATED
PLUG INSULATION - THERMOPLASTIC, BLACK
RING TERMINAL - COPPER ALLOY, TIN PLATED
CABLE CLAMP - STEEL, TIN PLATED
COUPLING RING - COPPER ALLOY, NICKEL PLATED
HANDLE - COPPER ALLOY, NICKEL PLATED OR BLACK EPOXY
TUBULAR INSULATOR - MYLAR
3. THESE PRODUCTS ARE RoHS COMPLIANT.
0.19
0.13
FLAT LENGTH
ON TIP TERMINAL
3/8-32 UNEF-2A THREAD
1.09
SECTION A-A
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SIZE
FINISH
WIDTH
MULT
LBS/M
MATERIAL
SPEC No.
TEMPER
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
3:1
A
REV
26681
ECO NUMBER
1-7-11
DATE
TO
BY
TJK
APVD
4-26-11
JEB
REVISIONS
DO NOT SCALE DRAWING
NAME

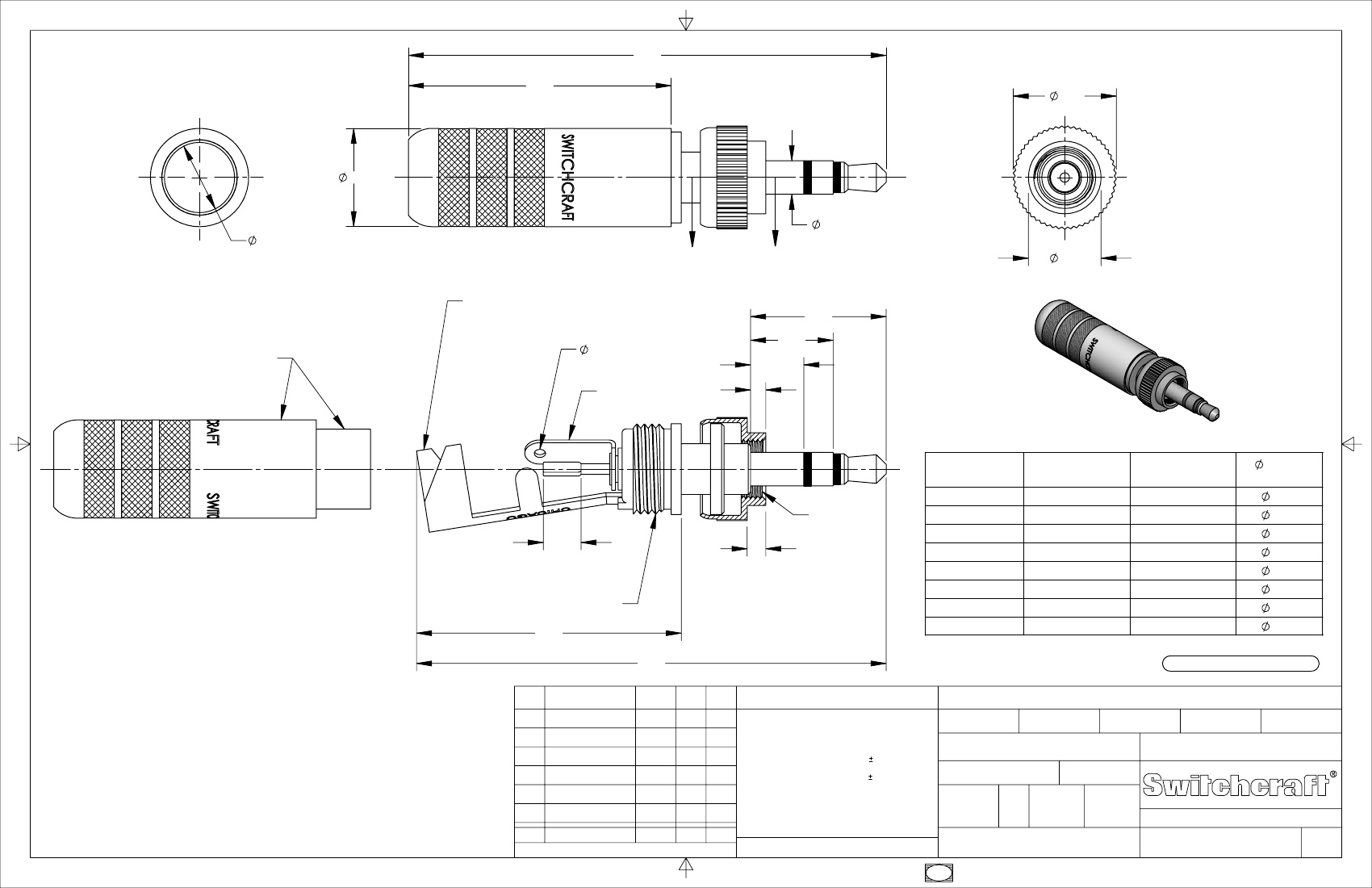

3.5 MM LOCKING
STEREO PLUG, RoHS
JEB
4-26-11
TJK
10-16-13
PART No.
APVD
SHEET
1
OF
1
REV
35HDL_SERIES
A
SolidWorks CAD File
B
