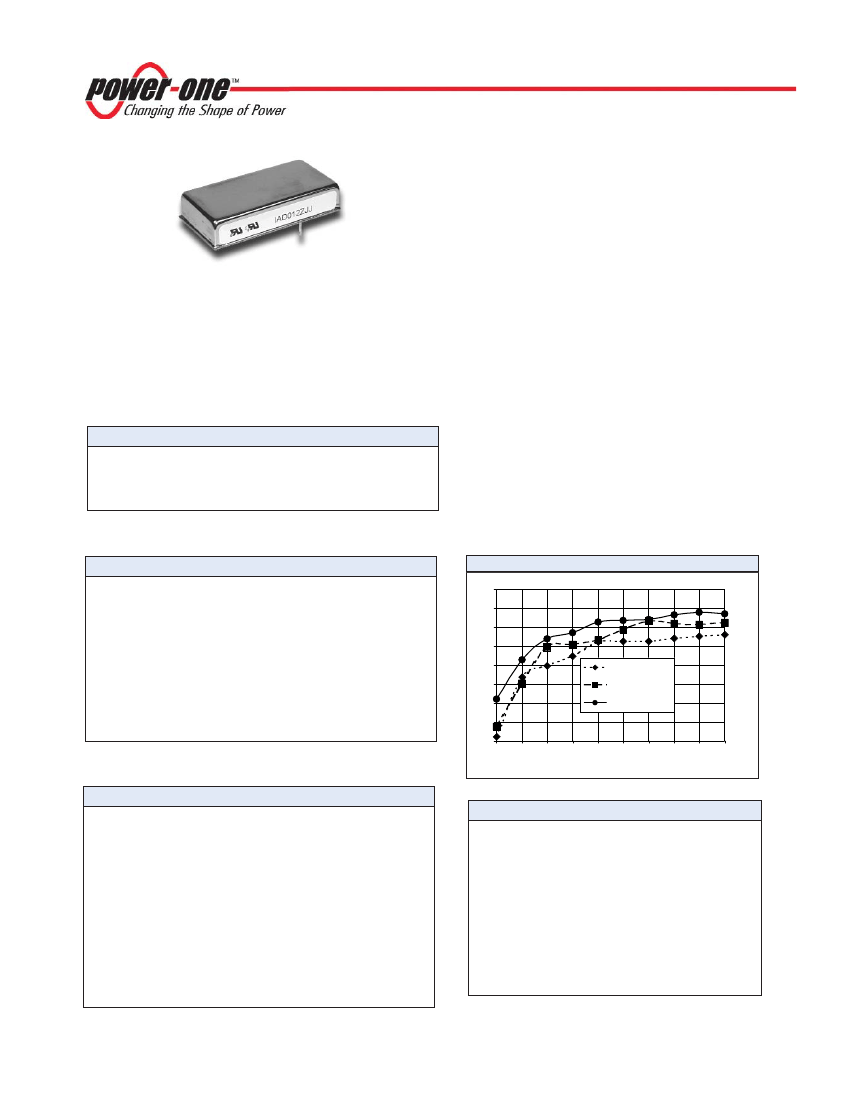

IAD DC/DC Series Data Sheet
Features
•
•
•
•
•
•
•
•
Industry-standard package
Industry-standard footprint
Fixed-frequency design
85°C case operation
Optional trim and enable
Wide-range input
1500V isolation
Short-circuit protection
Description
IAD dual-output DC/DC converters provide up to 12 watts of output power in an industry-standard package and
footprint. With a maximum case temperature of 85°C, the IAD is well suited for the most demanding applications. The
IAD features 1500 VDC isolation, short circuit, and overtemperature protection, as well as six-sided shielding. The IAD
is available with optional enable and voltage trim pins. Please see the IAS series for single-output applications.
Technical Specifications
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Reflected Ripple
Input Reverse Voltage Protection
18 - 36 VDC
34 - 75 VDC
25 mA
Shunt Diode
Output
Setpoint Accuracy
Auxillary Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Power Limit Threshold Range
±1%
5%
0.5% V
out
1.0% V
out
10 % I
out
Rated
25% I
out
4% V
out
500
m
s
±10%
Hiccup
110 - 150%
90
85
80
EFFICIENCY %
Efficiency vs. Load (48V Input)
75
70
65
60
55
50
10
20
30
40
50
60
70
80
90
100
LOAD %
EFF. IAD010ZGG
EFF. IAD012ZHH
EFF. IAD012ZJJ
General
Turn-On Time
Remote Shutdown
Switching Frequency
Isolation
Input - Output
Output - Case (for 48 V
in
)
Input - Case (for 24 V
in
)
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF
†
(Bellcore TR-NWT-000332)
Safety
Weight (Approx.)
300 ms
Positive Logic
400 kHz
1500 VDC
500 VDC
1050 VDC
±0.03%/°C
-40 To +85°C
-40 To +110°C
95%
5 g, 10 - 55 Hz
1.8 X 106 hrs
UL, cUL, VDE
1.2 oz
Notes
† MTBF predictions may vary slightly from model to model.
†† Industrial temp range available
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult
factory for specific model information.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
REV. JUL 30, 2003
Page 1 of 3

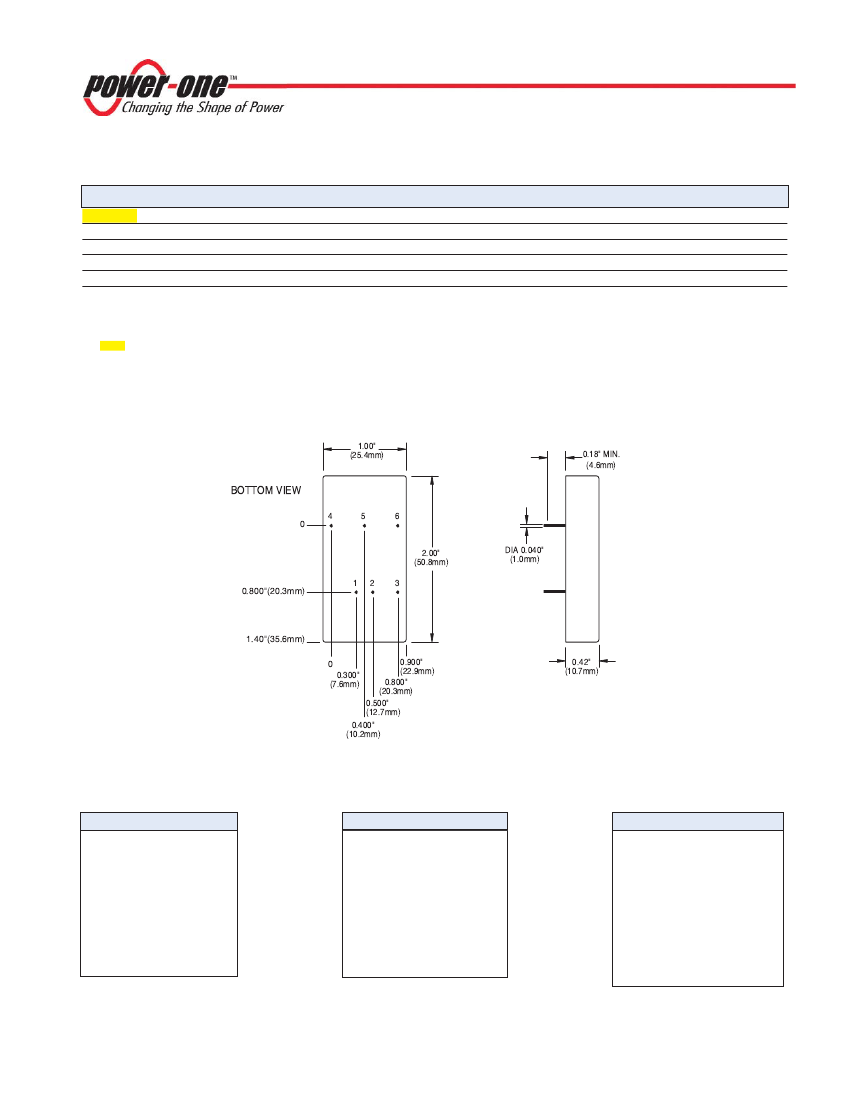

OPTIONS
This page is offered as a reference. Consult factory for actual availability of options. When ordering
equipment options, use the following suffix information. Select preferred option(s) and add the suffix to the
model number. Ordering option examples are located below the options table.
OPTION
Negative Logic
Lucent-Compatible Trim
Trim
Enable
Trim and Enable
SUFFIX
N
T
1
2
3
APPLICABLE SERIES
HAS, HBD, HBS, HES, HLS, HLD, LES,
QBS, QES, QLS, TES, TQD
HAS, HBD, HBS, HES, HLS, QBS, QES,
QLS
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
REMARKS
TTL "Low" Turns Module ON
TTL "High" Turns Module OFF
Pin Length and Heatsink Options
0.110" (2.8mm) Pin Length
0.150" (3.8mm) Pin Length
0.24" (6.1mm) Horizontal Heatsink
0.24" (6.1mm) Vertical Heatsink
0.45" (11.4mm) Horizontal Heatsink
0.45" (11.4mm) Vertical Heatsink
0.95" (24.1mm) Horizontal Heatsink
0.95" (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Leaded Models
All Leaded Models
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
Standard Pin Length is 0.180" (4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent-compatible trim, and 0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent-compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective divisional president
of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
REV. JUL 30, 2003
Page 3 of 3
